Santos 6

  • Technical Specifications
  • Body
    Die cast aluminium or aluminium profile with die cast aluminium bottom and connection box.
  • Gaskets
    Silicone
  • Diffusers
    5 mm ribbed tempered Glass
  • Screws
    316L Stainless steel
  • Glands
    2 x PG 13.5
  • Cover
    316L Stainless steel
  • Recessing Tube
    Polyamide 6
Customization” is EMFA’s standard

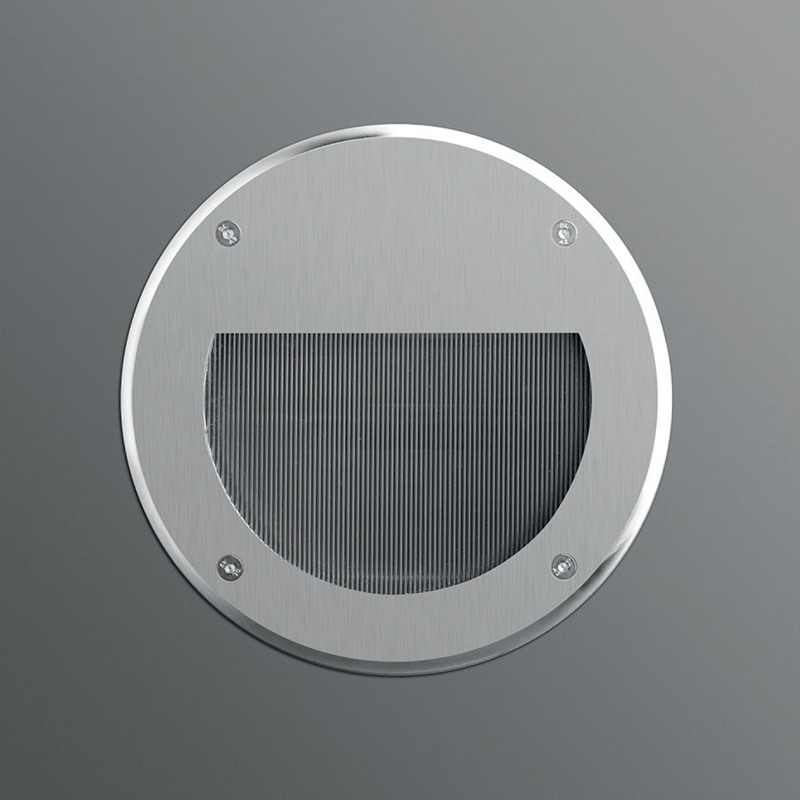

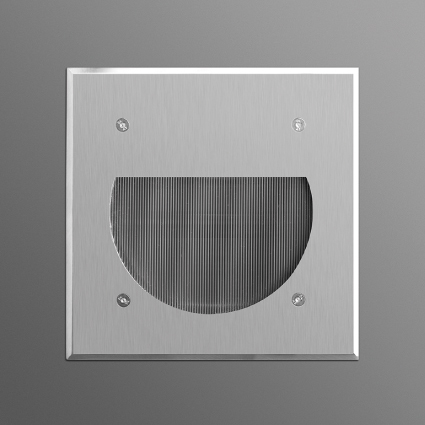

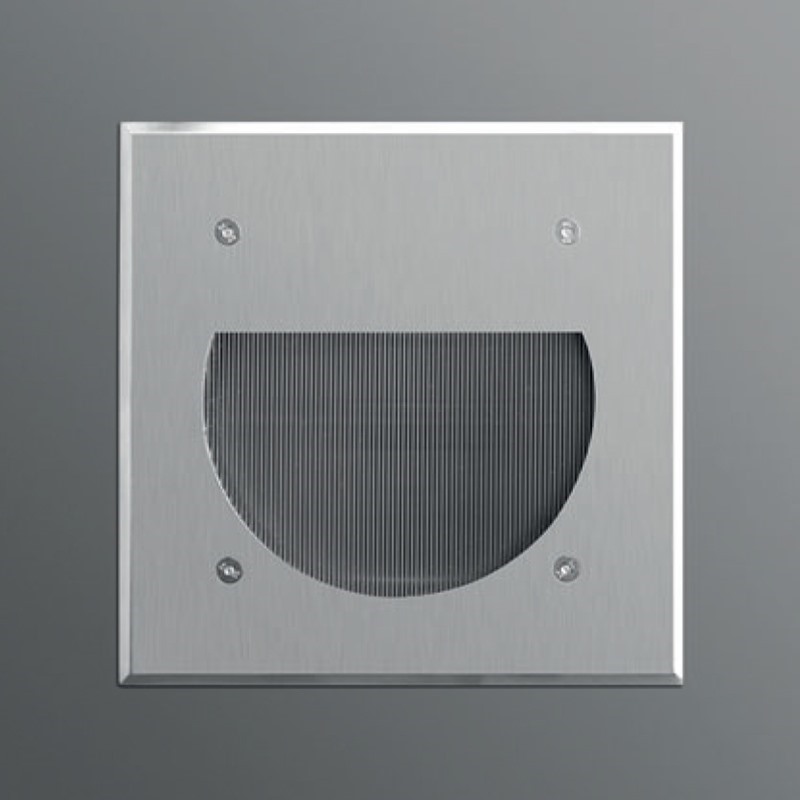

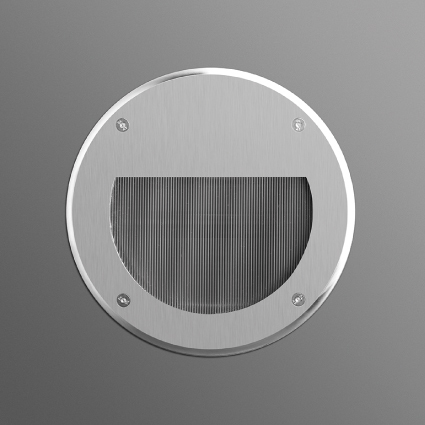

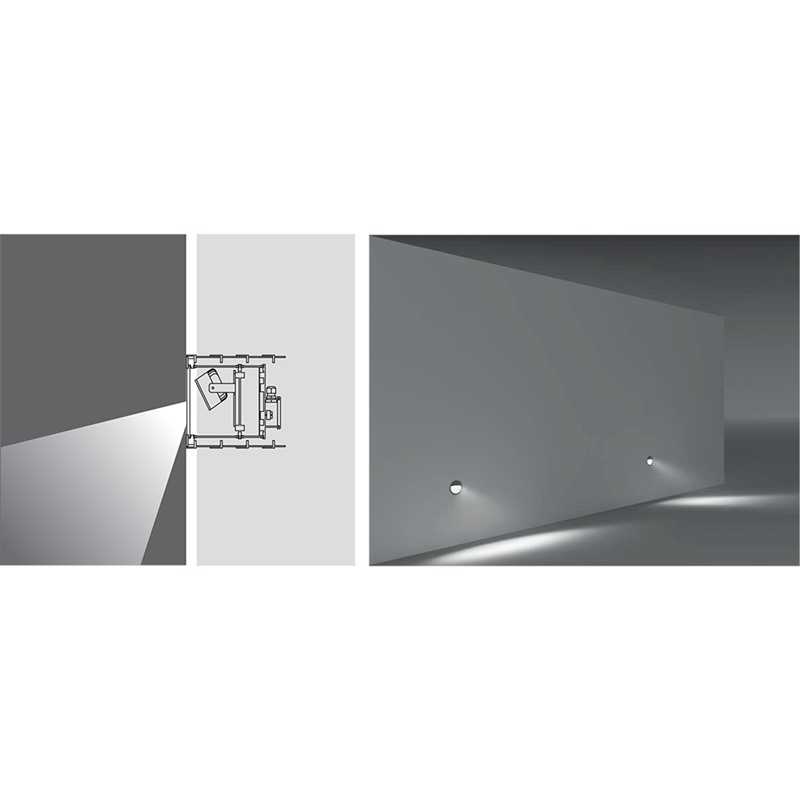

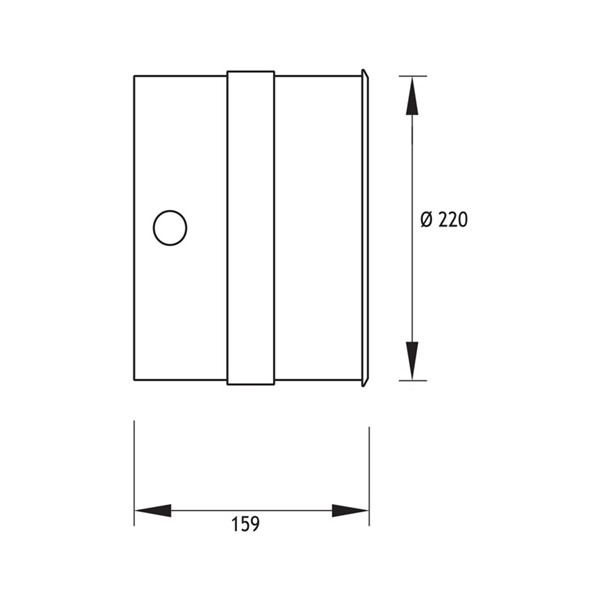

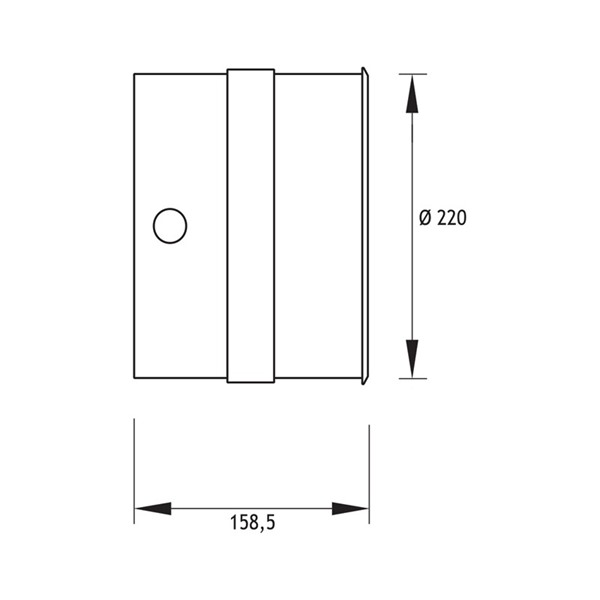

EMFA’s Santos 6 Wall Recessed Fixture is specially designed to deliver glare-free lighting in open areas and pathways. The combination of the ribbed glass, which creates a horizontal elliptical light output and the lamp cover, which hides the source of light, allows for an unobtrusive comfortable lighting effect. The fixture is made of a combination of 316L stainless steel and aluminium. The narrow depth of 159 mm allows the fixture to be installed in most walls. The electronic ballast is housed in the thermally separated base of the fixture.

PRODUCT LIST & DOWNLOAD

  • Compare
    552101
    • Product Name
      SANTOS 6 - Wall Recessed Fixtures
    • Reflector
      -
    • Temp
      129°C
    • Power - Current
      HALOGEN PAR 30 75W
    • Color
      -
    • Voltage
      240 VAC with integrated driver (12V DC 24V DC on request
    • Product Type
      Round
    • IP
      IP67
    • Lampholder
      E27
  • Compare
    552111
    • Product Name
      SANTOS 6 - Wall Recessed Fixtures
    • Reflector
      36°
    • Temp
      63°C, 100°C
    • Power - Current
      METAL HALIDE 20W
    • Color
      -
    • Voltage
      240 VAC with integrated driver (12V DC 24V DC on request
    • Product Type
      Round
    • IP
      IP67
    • Lampholder
      G 8.5
  • Compare
    552121
    • Product Name
      SANTOS 6 - Wall Recessed Fixtures
    • Reflector
      -
    • Temp
      45°C
    • Power - Current
      12W LED-350 Ma
    • Color
      3000K
    • Voltage
      240 VAC with integrated driver (12V DC 24V DC on request
    • Product Type
      Round
    • IP
      IP67
    • Lampholder
      -
  • Compare
    552122
    • Product Name
      SANTOS 6 - Wall Recessed Fixtures
    • Reflector
      -
    • Temp
      45°C
    • Power - Current
      12W LED-350 Ma
    • Color
      4000K
    • Voltage
      240 VAC with integrated driver (12V DC 24V DC on request
    • Product Type
      Round
    • IP
      IP67
    • Lampholder
      -
  • Compare
    552201
    • Product Name
      SANTOS 6 - Wall Recessed Fixtures
    • Reflector
      -
    • Temp
      129°C
    • Power - Current
      HALOGEN PAR 30 75W
    • Color
      -
    • Voltage
      240 VAC with integrated driver (12V DC 24V DC on request
    • Product Type
      Square
    • IP
      IP67
    • Lampholder
      E27
  • Compare
    552211
    • Product Name
      SANTOS 6 - Wall Recessed Fixtures
    • Reflector
      36°
    • Temp
      63°C, 100°C
    • Power - Current
      METAL HALIDE 20W
    • Color
      -
    • Voltage
      240 VAC with integrated driver (12V DC 24V DC on request
    • Product Type
      Square
    • IP
      IP67
    • Lampholder
      G 8.5
  • Compare
    552221
    • Product Name
      SANTOS 6 - Wall Recessed Fixtures
    • Reflector
      -
    • Temp
      45°C
    • Power - Current
      12W LED-350 Ma
    • Color
      3000K
    • Voltage
      240 VAC with integrated driver (12V DC 24V DC on request
    • Product Type
      Square
    • IP
      IP67
    • Lampholder
      -
  • Compare
    552222
    • Product Name
      SANTOS 6 - Wall Recessed Fixtures
    • Reflector
      -
    • Temp
      45°C
    • Power - Current
      12W LED-350 Ma
    • Color
      4000K
    • Voltage
      240 VAC with integrated driver (12V DC 24V DC on request
    • Product Type
      Square
    • IP
      IP67
    • Lampholder
      -
