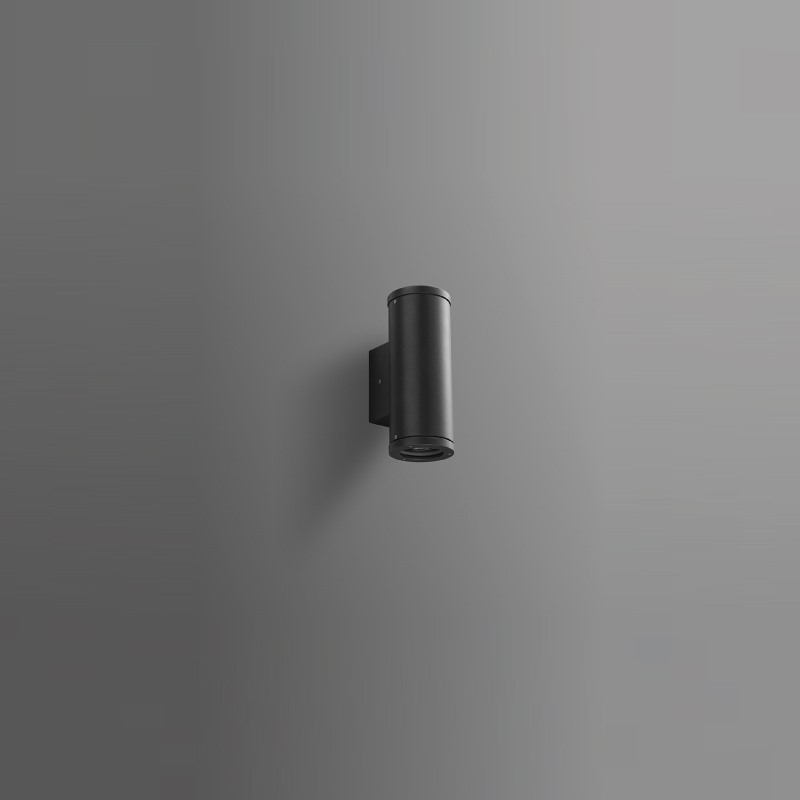

BELKIS APPLIQUES

  • Technical Specifications
  • Body
    Aluminium Profile
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Cover
    Die cast aluminium
  • Paint
    Electrostatic powder
  • Bracket
    Die cast aluminium
  • Connection
    IP connection box

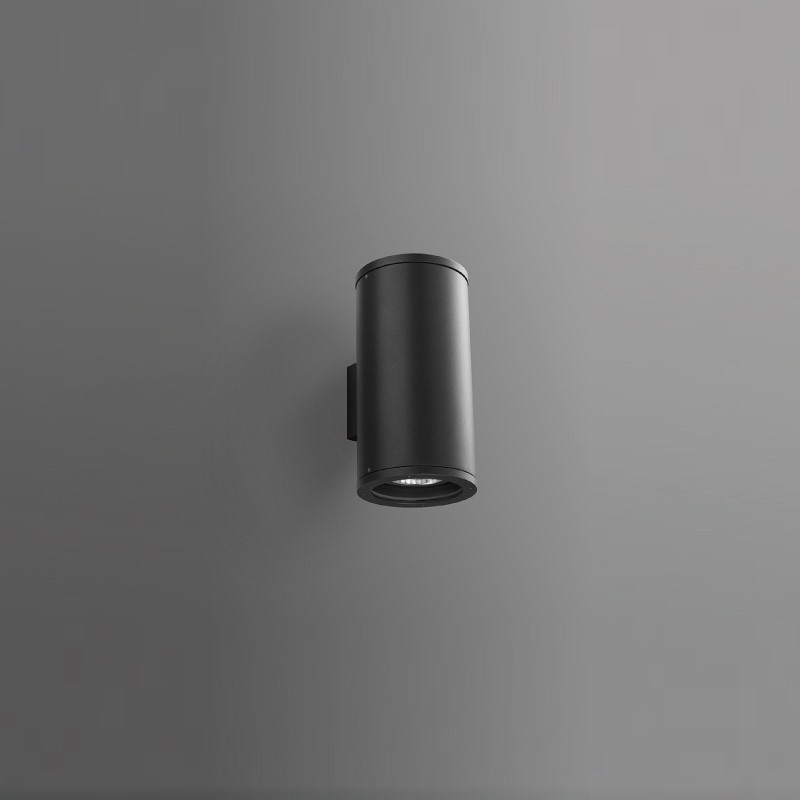

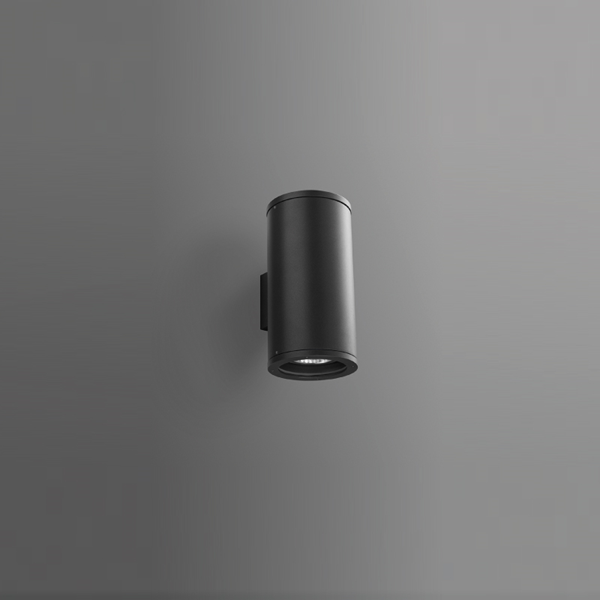

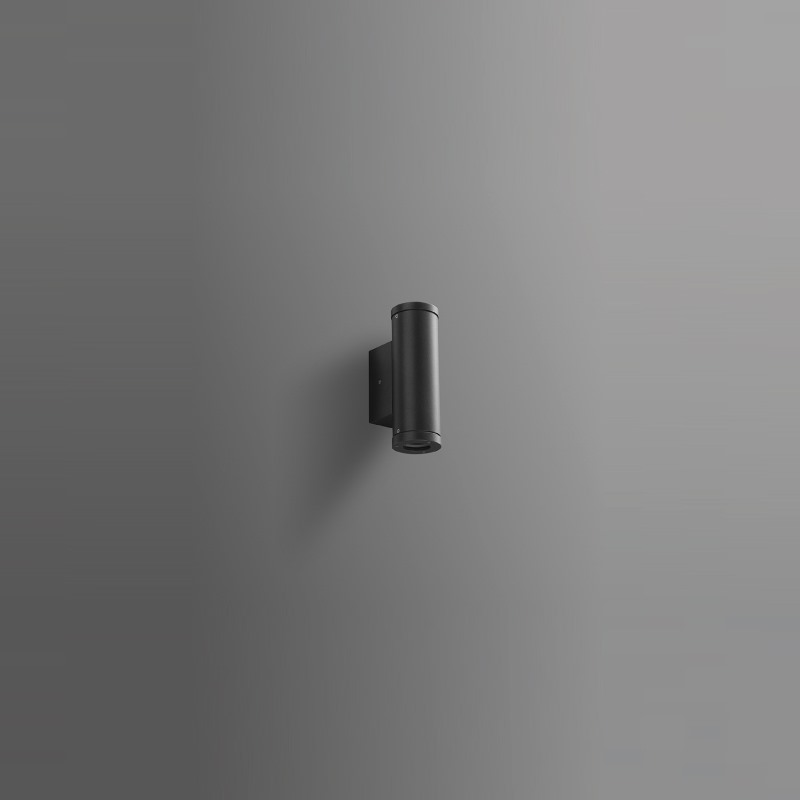

The Belkis Applique series consists of a range of LED, metal halide and halogen sources to deliver the desired light effect to facades and columns. The series is made of die cast aluminium and extrusion aluminium painted with electrostatic powder paint. 6 standard RAL colors can be chosen from to adapt the spots to their environment. The LEDs used come in 3 different tones of white, as well as blue, red, green, amber and RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired the light effect.

PRODUCT LIST & DOWNLOAD

  • Compare
    340101
    • Product Name
      Belkis 5
    • Reflector
      40°
    • IP
      IP55
    • Lamp
      Halogen 240V 25W
    • Lampholder
      G9
  • Compare
    341111
    • Product Name
      Belkis 2
    • Reflector
      40°, 50°
    • IP
      IP55
    • Lamp
      Halogen 240V 50W
    • Lampholder
      GU10
  • Compare
    342111
    • Product Name
      Belkis 5
    • Reflector
      10°, 30°
    • IP
      IP55
    • Lamp
      Halogen 30 75W
    • Lampholder
      E27
  • Compare
    343101
    • Product Name
      Belkis 1
    • Reflector
      40°
    • IP
      IP55
    • Lamp
      2 x Halogen 240V 25W
    • Lampholder
      2 x G9
  • Compare
    344111
    • Product Name
      Belkis 2
    • Reflector
      25°, 50°
    • IP
      IP55
    • Lamp
      2 x Halogen 240V 50W
    • Lampholder
      2 x Gu10
  • Compare
    345111
    • Product Name
      Belkis 5
    • Reflector
      10°, 30°
    • IP
      IP55
    • Lamp
      2 x Halogen PAR 30 75W
    • Lampholder
      2 x E27
  • Compare
    425101
    • Product Name
      Belkis 1
    • Color
      3000 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      85 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      1 x 350 mA (1 W) LED
  • Compare
    425106
    • Product Name
      Belkis 1
    • Color
      4500 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      85 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      1 x 350 mA (1 W) LED
  • Compare
    425107
    • Product Name
      Belkis 1
    • Color
      6000 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      102 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      1 x 350 mA (1 W) LED
  • Compare
    425111
    • Product Name
      Belkis 1
    • Color
      3000 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      85 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      2 x 1 350 mA (2 W) LED
  • Compare
    425116
    • Product Name
      Belkis 1
    • Color
      4500 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      85 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      2 x 1 350 mA (2 W) LED
  • Compare
    425117
    • Product Name
      Belkis 1
    • Color
      6000 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      102 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      2 x 1 350 mA (2 W) LED
  • Compare
    425121
    • Product Name
      Belkis 2
    • Color
      3000 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      3 x 350 mA (3 W) LED
  • Compare
    425126
    • Product Name
      Belkis 2
    • Color
      4500 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      3 x 350 mA (3 W) LED
  • Compare
    425127
    • Product Name
      Belkis 2
    • Color
      6000 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      270 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      3 x 350 mA (3 W) LED
  • Compare
    425131
    • Product Name
      Belkis 2
    • Color
      3000 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      2 x 3 x 350 mA (6 W) LED
  • Compare
    425136
    • Product Name
      Belkis 2
    • Color
      4500 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      2 x 3 x 350 mA (6 W) LED
  • Compare
    425137
    • Product Name
      Belkis 2
    • Color
      6000 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      270 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      2 x 3 x 350 mA (6 W) LED
  • Compare
    425141
    • Product Name
      Belkis 5
    • Color
      3000 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      6 x 350 mA (6 W) LED
  • Compare
    425146
    • Product Name
      Belkis 5
    • Color
      4500 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Lumen
      510 lm
    • IP
      IP55
    • Lamp
      6 x 350 mA (6 W) LED
  • Compare
    425151
    • Product Name
      Belkis 5
    • Color
      3000 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      2 x 6 x 350 mA (12 W) LED
  • Compare
    425156
    • Product Name
      Belkis 5
    • Color
      4500 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      2 x 6 x 350 mA (12 W) LED
  • Compare
    425157
    • Product Name
      Belkis 5
    • Color
      6000 K
    • Lens
      25° (10° - 40° or without lens on request)
    • Lumen
      612 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • IP
      IP55
    • Lamp
      2 x 6 x 350 mA (12 W) LED
