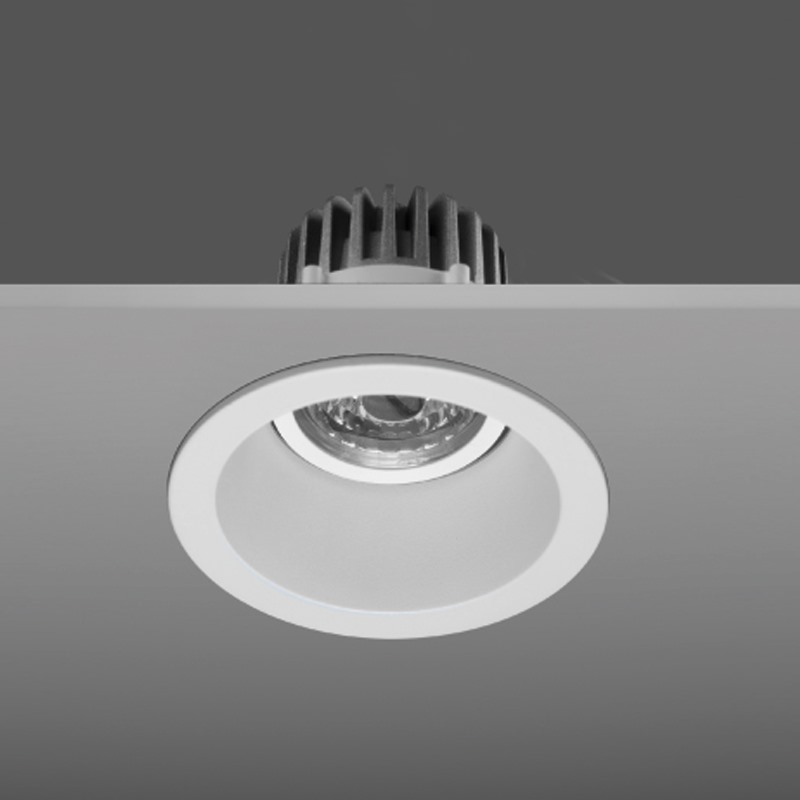

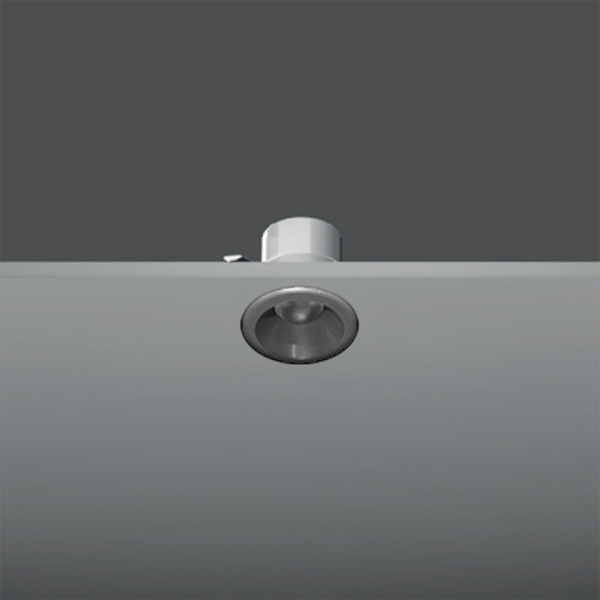

SATURN MINI

  • Technical Specifications
  • Body
    Die cast aliminium
  • Paint
    Electrostatic powder paint RAL 9016 (available in other RAL colors)
  • Gear
    Non - Dimmable electronic LED driver (1 - 10V Dimmable and DALI drivers available on request)
  • Cable
    0.5 m exiting from top of fixture
  • Springs
    Steel for mounting in ceilings of 1-25 mm thickness
ORDER FORM

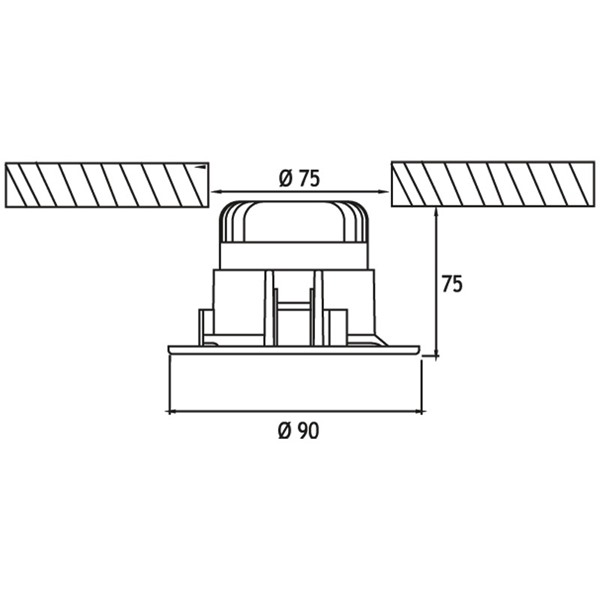

PRODUCT DRAWINGS

  • SATURN MINI

PRODUCT LIST & DOWNLOAD

  • Compare
    529001
    • Product Name
      SATURN MINI
    • Power - Current
      1 x 350 mA (1W) LED
    • Color
      3000 K
    • Lens
      25° , 40°
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3 x 0, 75 H03 VV-F
    • IP
      IP20
  • Compare
    529002
    • Product Name
      SATURN MINI
    • Power - Current
      1 x 350 mA (1W) LED
    • Color
      4500 K
    • Lens
      25° , 40°
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3 x 0, 75 H03 VV-F
    • IP
      IP20
  • Compare
    529003
    • Product Name
      SATURN MINI
    • Power - Current
      1 x 350 mA (1W) LED
    • Color
      6000 K
    • Lens
      25° , 40°
    • Lumen
      290 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3 x 0, 75 H03 VV-F
    • IP
      IP20
  • Compare
    529011
    • Product Name
      SATURN MINI
    • Power - Current
      1 x 700 mA (3W) LED
    • Color
      3000 K
    • Lens
      25° , 40°
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3 x 0, 75 H03 VV-F
    • IP
      IP20
  • Compare
    529012
    • Product Name
      SATURN MINI
    • Power - Current
      1 x 700 mA (3W) LED
    • Color
      4500 K
    • Lens
      25° , 40°
    • Lumen
      255 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3 x 0, 75 H03 VV-F
    • IP
      IP20
  • Compare
    529013
    • Product Name
      SATURN MINI
    • Power - Current
      1 x 700 mA (3W) LED
    • Color
      6000 K
    • Lens
      25° , 40°
    • Lumen
      290 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3 x 0, 75 H03 VV-F
    • IP
      IP20
