BELKIS 4 - LED DRIVER IN BASE

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Paint
    Electrostatic powder
"Customization" is EMFA's standard
EMFA offers many combinations for each fixture, as all fixtures are made in house. A combination of 6 standard paint colors, 8 LED colors, 2 wattages, and 5 or more lenses and reflectors are available to make the fixture suitable for the required application. This is done without increasing lead-time and is available for large as well as small quantities.

PRODUCT LIST & DOWNLOAD

  • Compare
    121201
    • Product Name

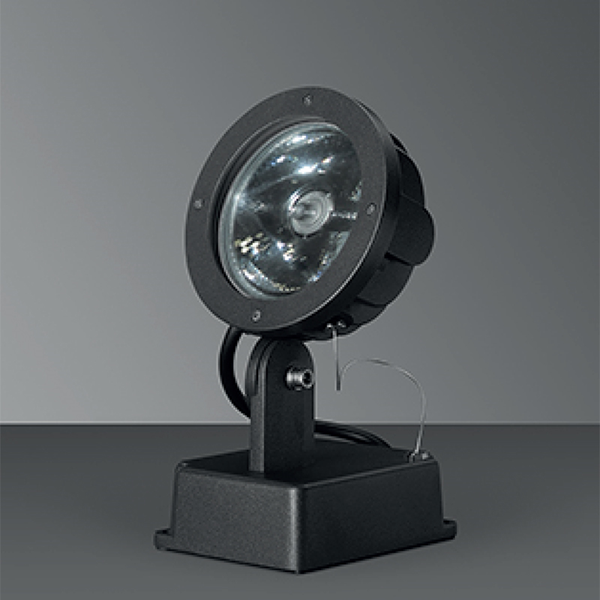

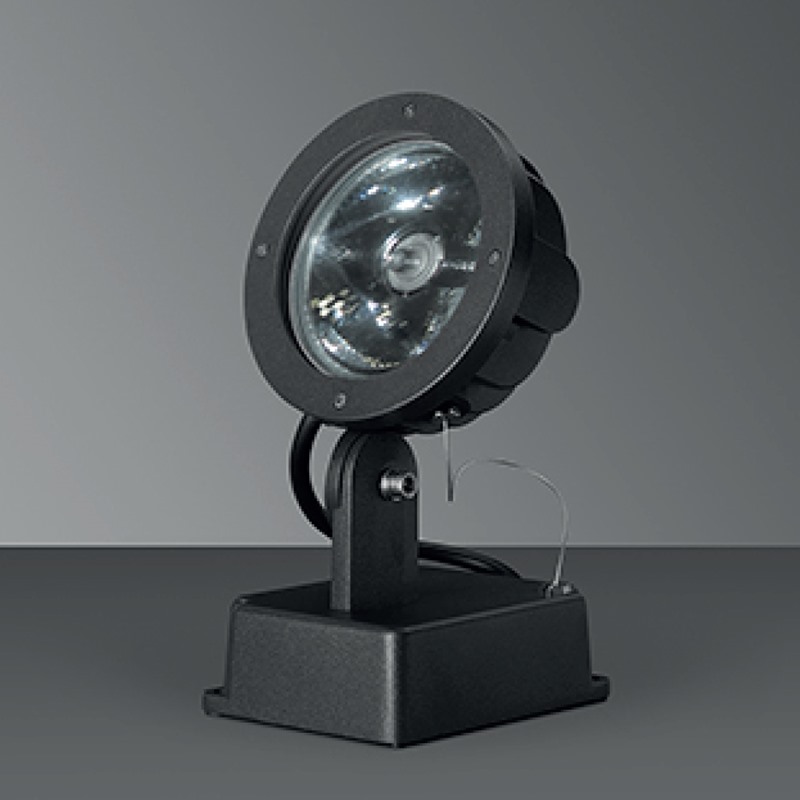

      BELKIS 4 - LED SPOT WITH TIR LENS FIXTURES LED DRIVER IN BASE
    • Power - Current
      25W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40° Mirror TIR Lens
    • Lumen
      1645 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    121202
    • Product Name
      BELKIS 4 - LED SPOT WITH TIR LENS FIXTURES LED DRIVER IN BASE
    • Power - Current
      25W LED
    • Color
      4000 K
    • Lens
      10°, 25°, 40° Mirror TIR Lens
    • Lumen
      1974 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    121211
    • Product Name
      BELKIS 4 - LED SPOT WITH TIR LENS FIXTURES LED DRIVER IN BASE
    • Power - Current
      32W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40° Mirror TIR Lens
    • Lumen
      2134 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    121212
    • Product Name
      BELKIS 4 - LED SPOT WITH TIR LENS FIXTURES LED DRIVER IN BASE
    • Power - Current
      32W LED
    • Color
      4000 K
    • Lens
      10°, 25°, 40° Mirror TIR Lens
    • Lumen
      2561 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331411
    • Product Name

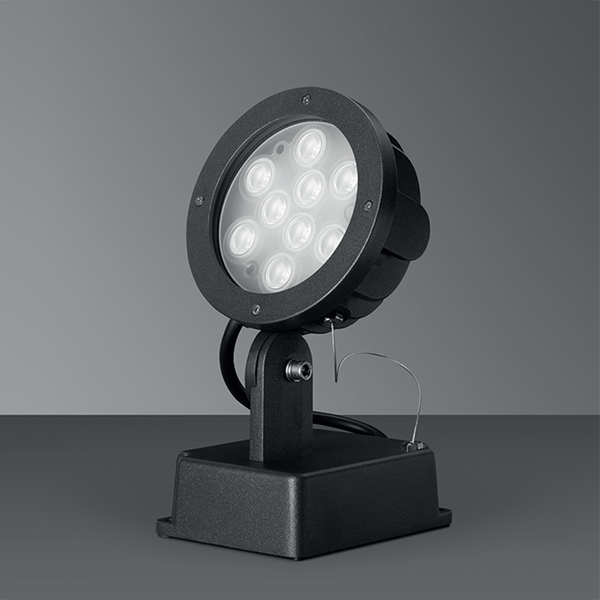

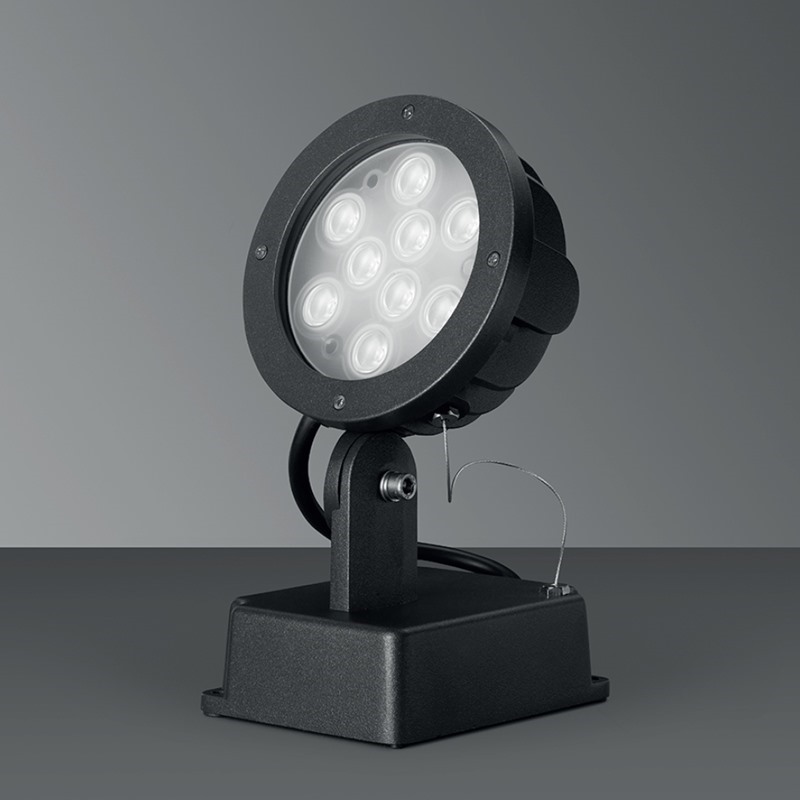

      BELKIS 4 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      9W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      765 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331416
    • Product Name
      BELKIS 4 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      9W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      765 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331417
    • Product Name
      BELKIS 4 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      9W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Lumen
      810 lm
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331421
    • Product Name
      BELKIS 4 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      27W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      2100 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331422
    • Product Name
      BELKIS 4 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      27W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      2100 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331423
    • Product Name
      BELKIS 4 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      27W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      2520 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
