ANI 1 SYMMETRICAL

  • Technical Specifications
  • Body
    Die cast aluminium
  • Profile
    Aluminium
  • Gaskets
    Silicone
  • Diffusers
    4 mm Tempered Glass
  • Screws
    316L Stainless steel
  • Glands
    PG 11

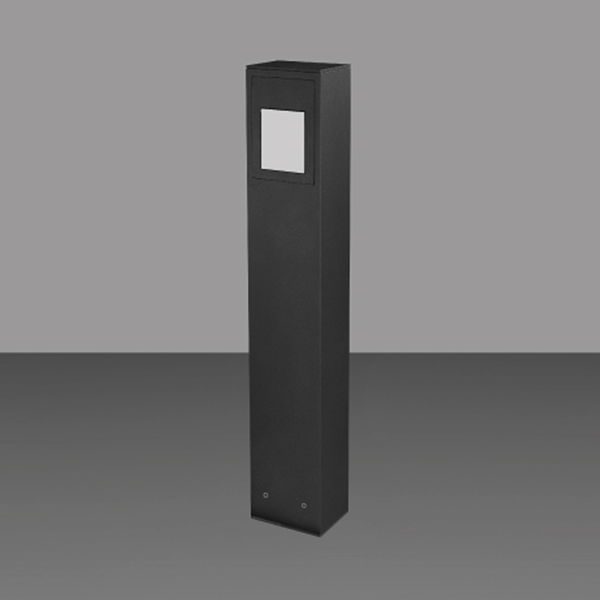

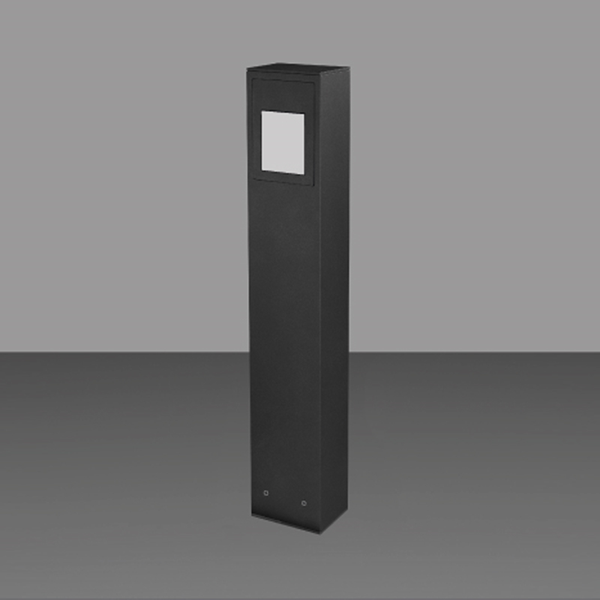

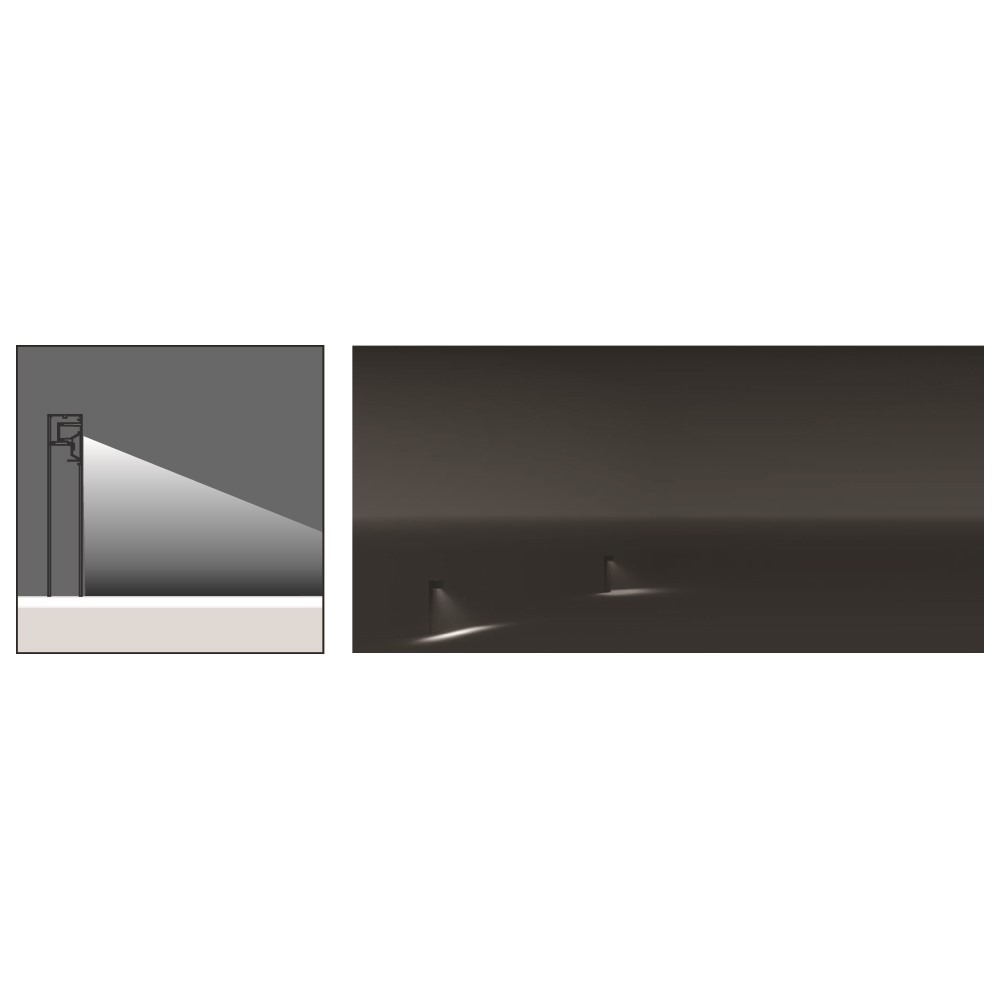

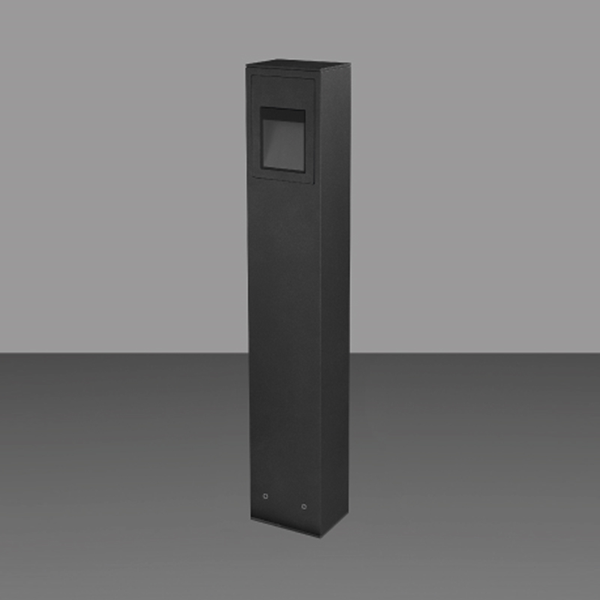

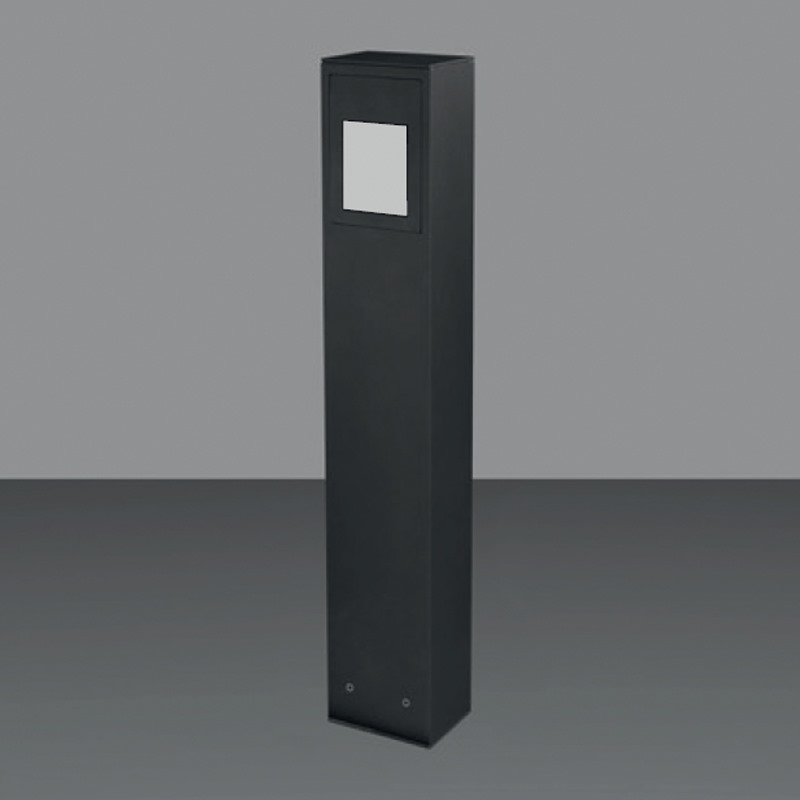

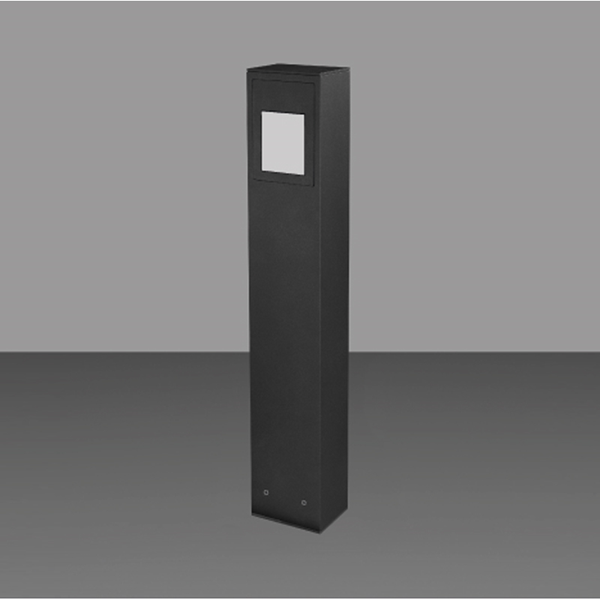

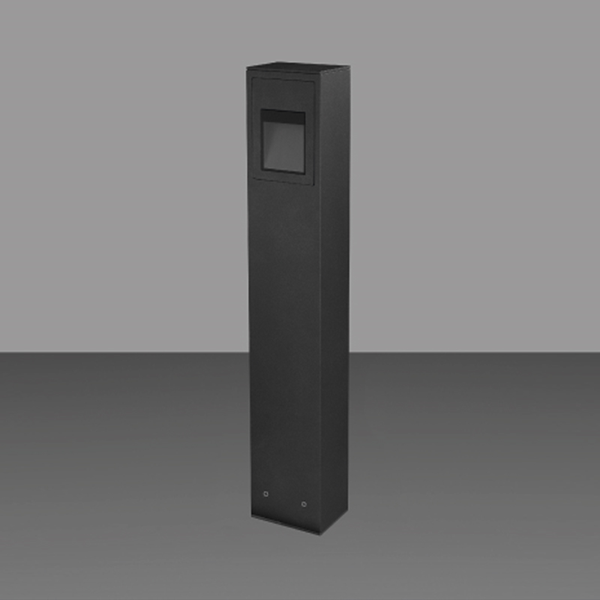

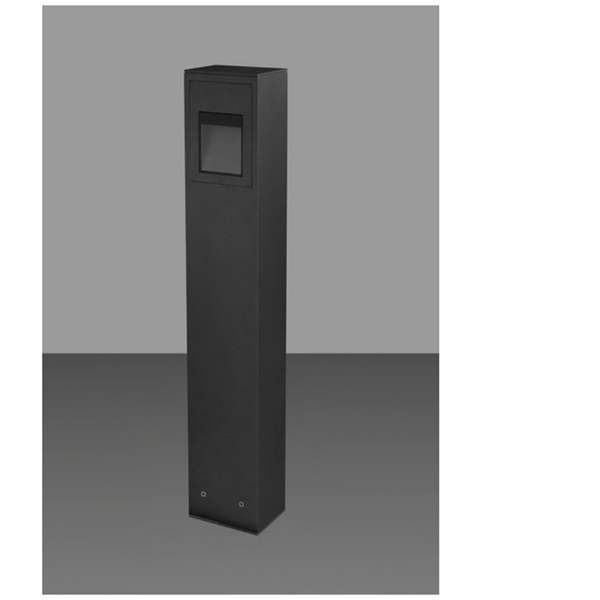

EMFA’s Ani Bollard combines a die-cast aluminium head housing an LED unit with an extrusion aluminium pipe.The bollard is designed to light pathways, landscapes and open spaces. The Leon bollard gives light only in the downward direction.This avoids any kind of glare and light pollution. The head and pipe are connected by a hidden screw within the pipe. The head contains LEDs that can be powered up to 12W. An optional galvanized steel anchorage kit is available for mounting into concrete. An alternative option is sleave anchors for mounting onto existing concrete or a picket to mount into the earth.

PRODUCT LIST & DOWNLOAD

  • Compare
    452002
    • Product Name
      Anı 1 Asymmetrıcal 450 mm
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      690 lm
    • Nominal Lumen Output
      977 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452011
    • Product Name
      450 mm Anı 1 Asymmetrıcal
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1020 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452012
    • Product Name
      450 mm Anı 1 Asymmetrıcal
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      12 W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1173 lm
    • Nominal Lumen Output
      1679 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452101
    • Product Name
      700 mm Anı 1 Asymmetrıcal
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      600 lm
    • Nominal Lumen Output
      850 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452102
    • Product Name
      700 mm Anı 1 Asymmetrıcal
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      690 lm
    • Nominal Lumen Output
      977 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452111
    • Product Name
      Ani 1 Asymmetrical (700 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      12 W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1020 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452112
    • Product Name
      700 mm (452112)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      12 W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1173 lm
    • Nominal Lumen Output
      1679 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452201
    • Product Name
      1100 mm (452201)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      3000 K
    • Real Lumen Output
      600 lm
    • Nominal Lumen Output
      850 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452202
    • Product Name
      1100 mm (45202)
    • Diffusers
      4mm Tempered Glass
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      4000 K
    • Real Lumen Output
      690 lm
    • Nominal Lumen Output
      977 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452211
    • Product Name
      1100 mm (452211)
    • Diffusers
      4mm Tempered Glass
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      12 W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1020 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452212
    • Product Name
      Ani 1 Asymmetrical 1100 mm
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      12 W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1173 lm
    • Nominal Lumen Output
      1679 lm
    • IP
      IP55
    • LED
      Linear LEDs
