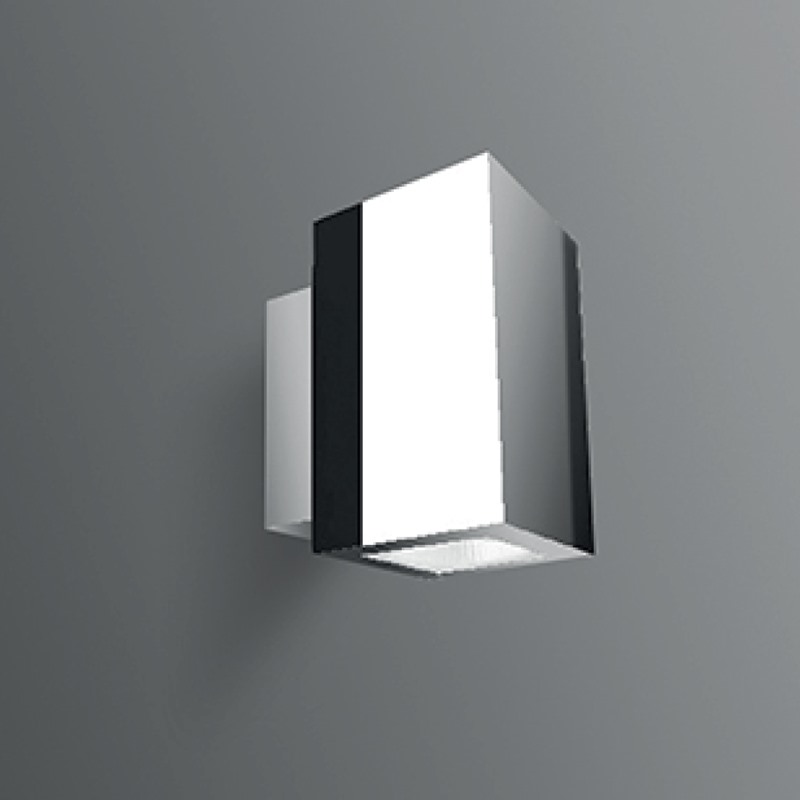

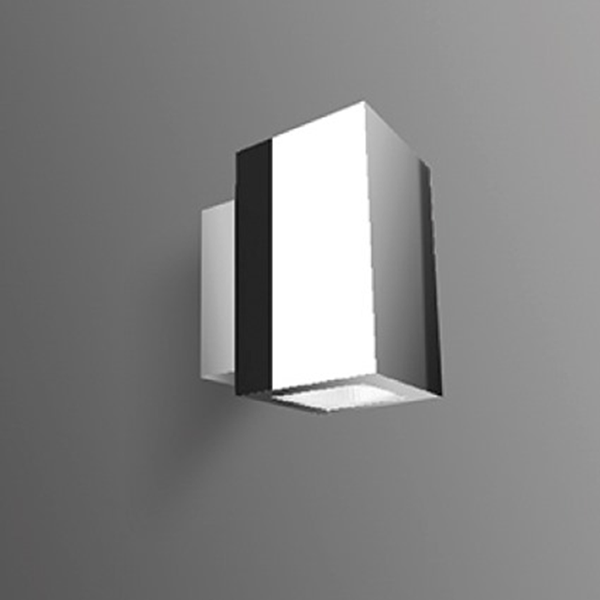

INOX SQUARE APPLIQUES

  • Technical Specifications
  • Body
    316L Stainless Steel
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Cover
    316L Stainless Steel
  • Connection
    IP connection box
  • Finish
    Polished
The Inox surface series contsists of a range of LED, metal halide and halogen sources to deliver the desired light effect to facedes and columns. The series is made of die cast aluminium and extrusion aluminium painted with electrostatic powder paint. 6 standard RAL colors can ve chosen from to adapt the spots to their environment. The LEDs used come in 3 different tones of white, as well as blue, red, green, amber and RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired the light effect.

PRODUCT LIST & DOWNLOAD

  • Compare

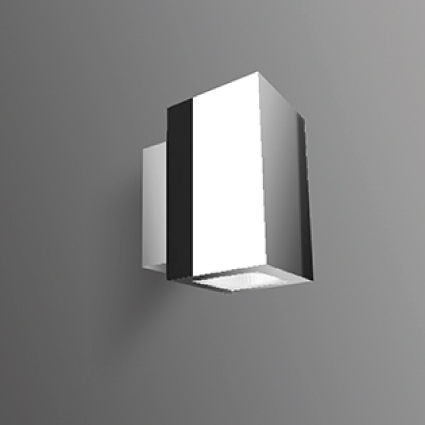

    135201
    • Product Name

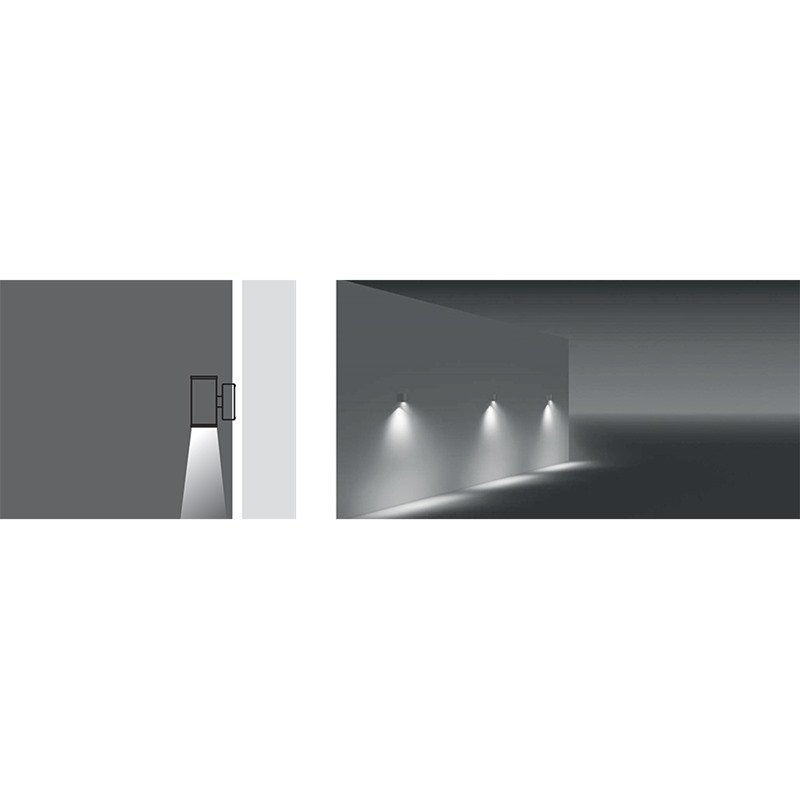

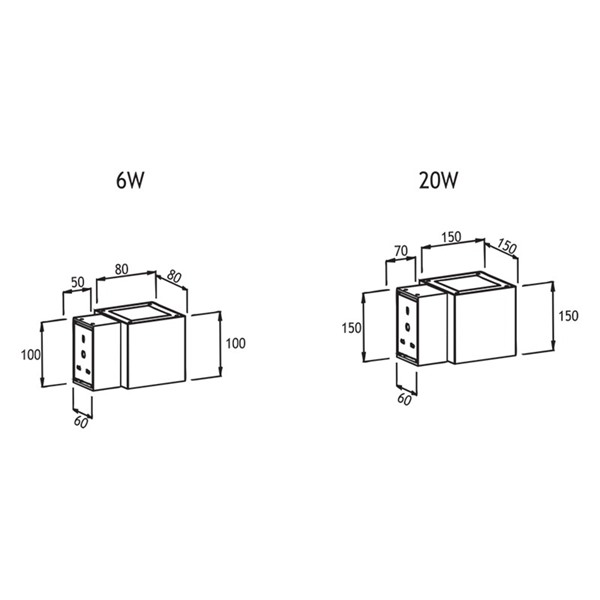

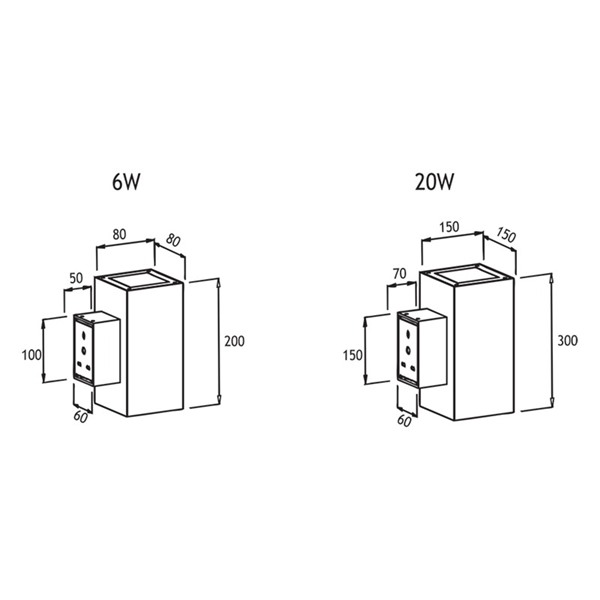

      INOX 1 SQUARE ONE WAY
    • Power - Current
      6W LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135202
    • Product Name
      INOX 1 SQUARE ONE WAY
    • Power - Current
      6W LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135211
    • Product Name
      INOX 1 SQUARE ONE WAY
    • Power - Current
      6W LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135212
    • Product Name
      INOX 1 SQUARE ONE WAY
    • Power - Current
      6W LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135221
    • Product Name
      INOX 2 SQUARE ONE WAY
    • Power - Current
      20W LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135222
    • Product Name
      INOX 2 SQUARE ONE WAY
    • Power - Current
      20W LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135231
    • Product Name
      INOX 2 SQUARE ONE WAY
    • Power - Current
      20W LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135232
    • Product Name
      INOX 2 SQUARE ONE WAY
    • Power - Current
      20W LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135301
    • Product Name

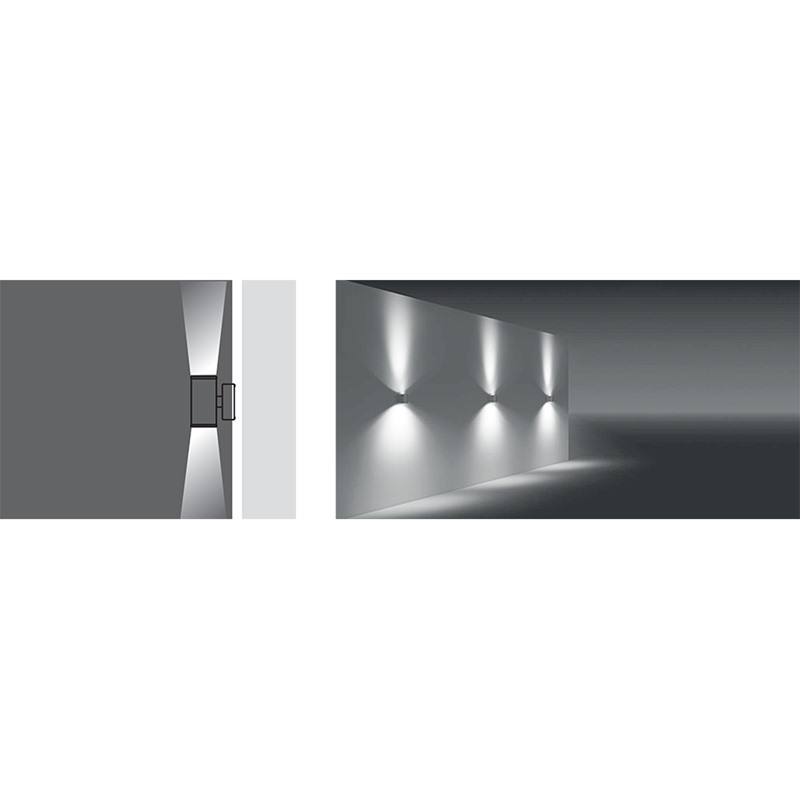

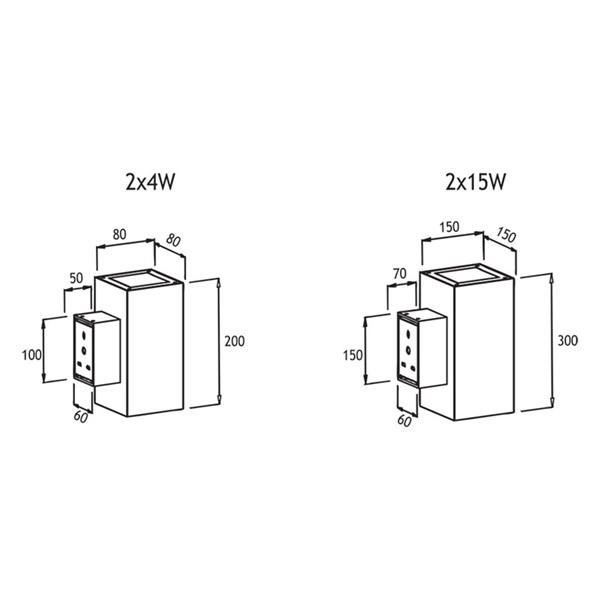

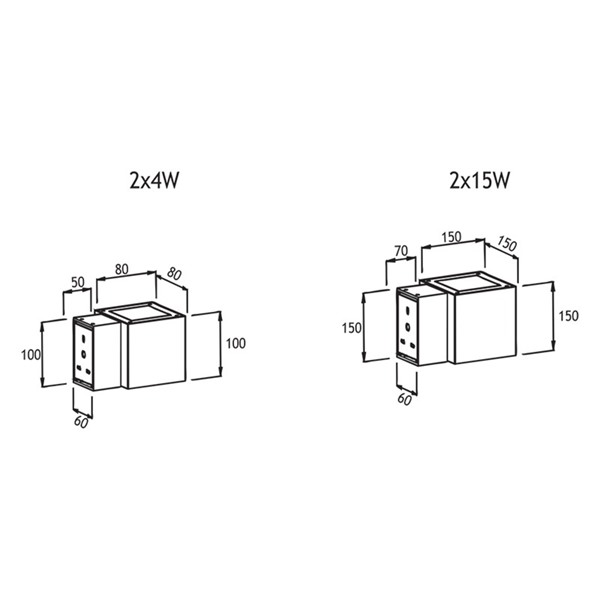

      INOX 1 SQUARE TWO WAY
    • Power - Current
      2x4W LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135302
    • Product Name
      INOX 1 SQUARE TWO WAY
    • Power - Current
      2x4W LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135311
    • Product Name
      INOX 1 SQUARE TWO WAY
    • Power - Current
      2x4W LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135312
    • Product Name
      INOX 1 SQUARE TWO WAY
    • Power - Current
      2x4W LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135321
    • Product Name
      INOX 2 SQUARE TWO WAY
    • Power - Current
      2x4W LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135322
    • Product Name
      INOX 2 SQUARE TWO WAY
    • Power - Current
      2x4W LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135331
    • Product Name
      INOX 2 SQUARE TWO WAY
    • Power - Current
      2x4W LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    135332
    • Product Name
      INOX 2 SQUARE TWO WAY
    • Power - Current
      2x4W LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
