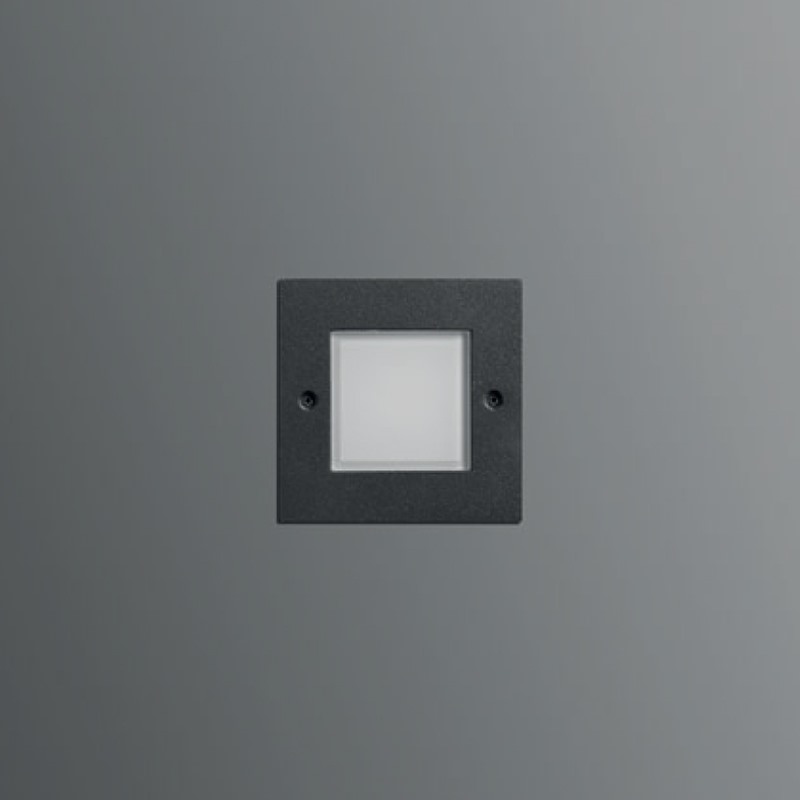

Belkıs 1 LLS

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Paint
    Electrostatic powder
Customization” is EMFA’s standard

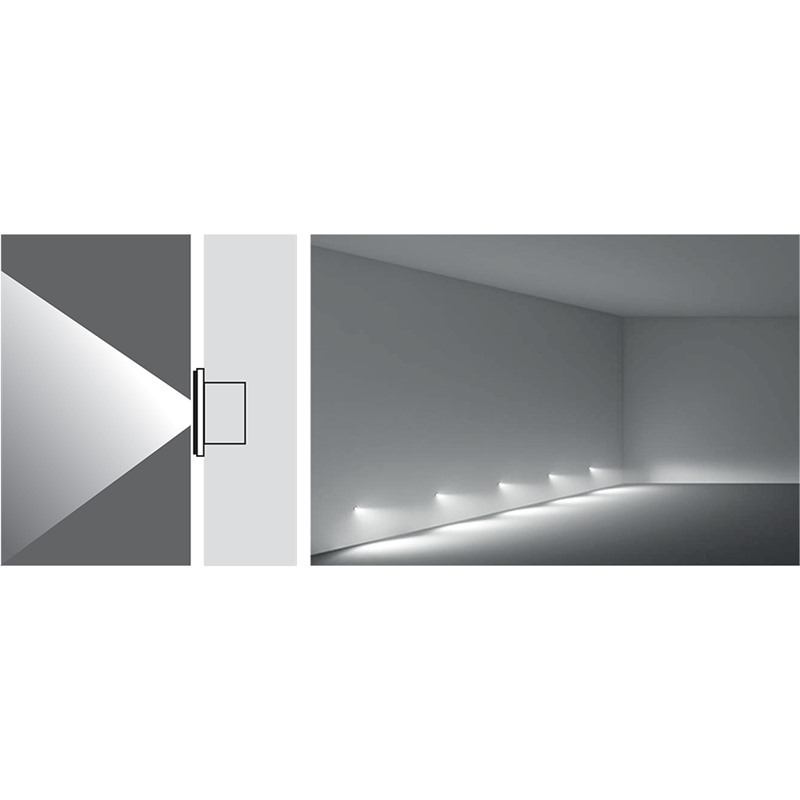

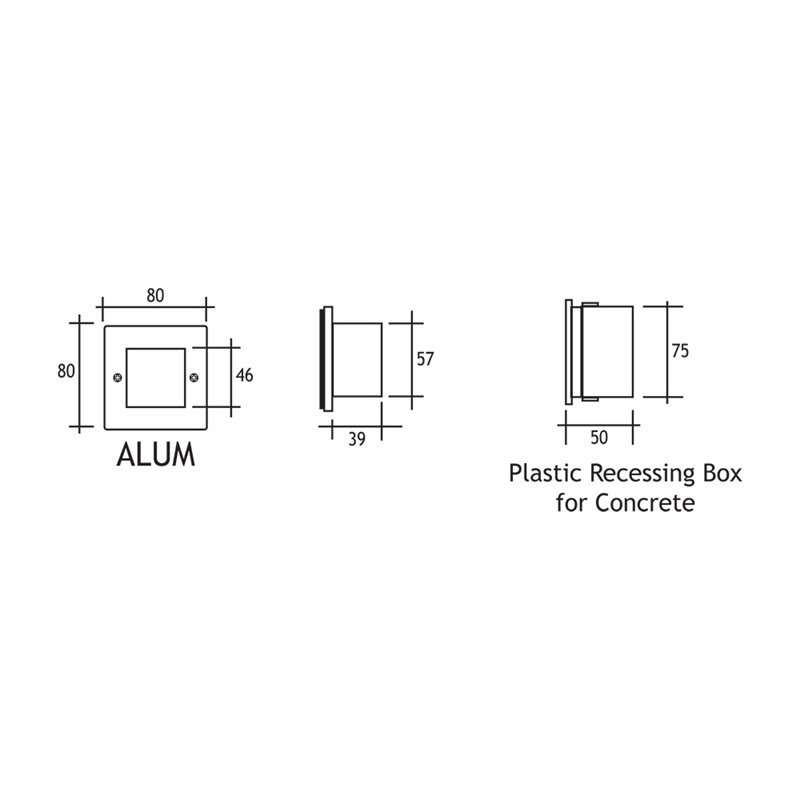

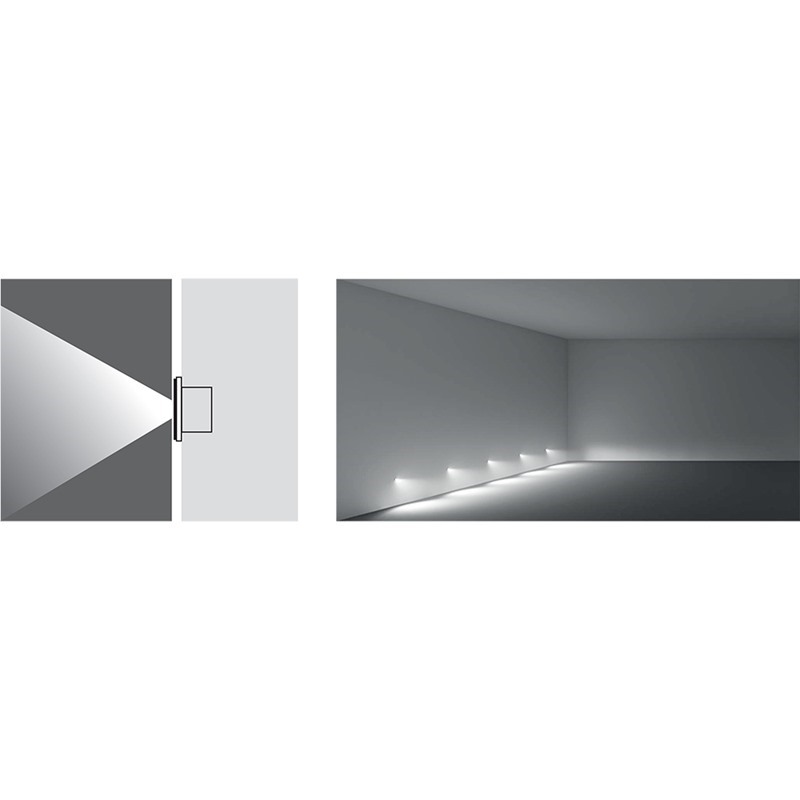

The Belkis 1 LLA is specially designed to deliver low glare LED lighting to steps, open areas, corridors and pathways. The fixture has a die cast aluminium body painted with electrostatic powder paint. The narrow depth of 39mm, which also includes the LED driver, allows the fixture to be installed in any wall. A plastic recessing box is included for installation into concrete. A specially developed potted power cable is used to effectively bond with the cast resin and stop any water ingress. The linear LED used comes in 2 different tones of white, 3000K and 4000K.

PRODUCT LIST & DOWNLOAD

  • Compare

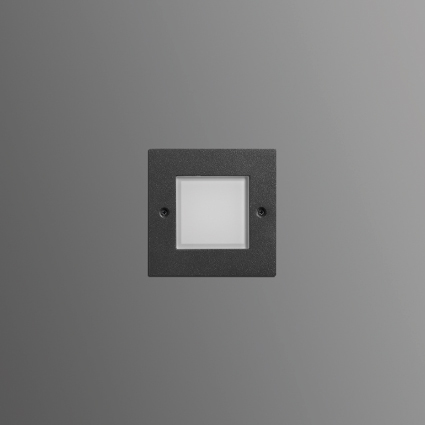

    424111
    • Product Name
      Belkıs 1 LLS
    • Power - Current
      1x350 mA (4W) LED
    • Color
      3000 K
    • Lumen
      128 lm
    • Voltage
      240V AC with integrated driver (12V AC or 24V DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Tilt
      Symmetrical With Milky Glass
    • IP
      IP65
  • Compare
    424112
    • Product Name
      Belkıs 1 LLS
    • Power - Current
      1x350 mA (4W) LED
    • Color
      4000 K
    • Lumen
      148 lm
    • Voltage
      240V AC with integrated driver (12V AC or 24V DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Tilt
      Symmetrical With Milky Glass
    • IP
      IP65
  • Compare

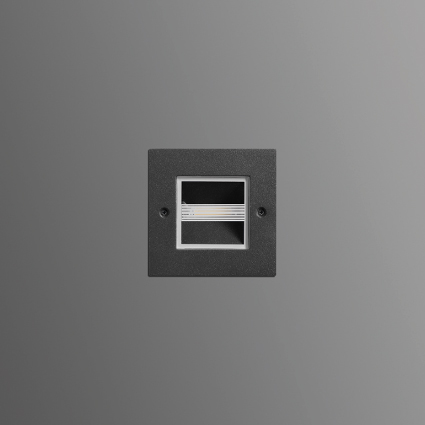

    424121
    • Product Name
      Belkıs 1 LLS
    • Power - Current
      1x350 mA (4W) LED
    • Color
      3000 K
    • Lumen
      255 lm
    • Voltage
      240V AC with integrated driver (12V AC or 24V DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Tilt

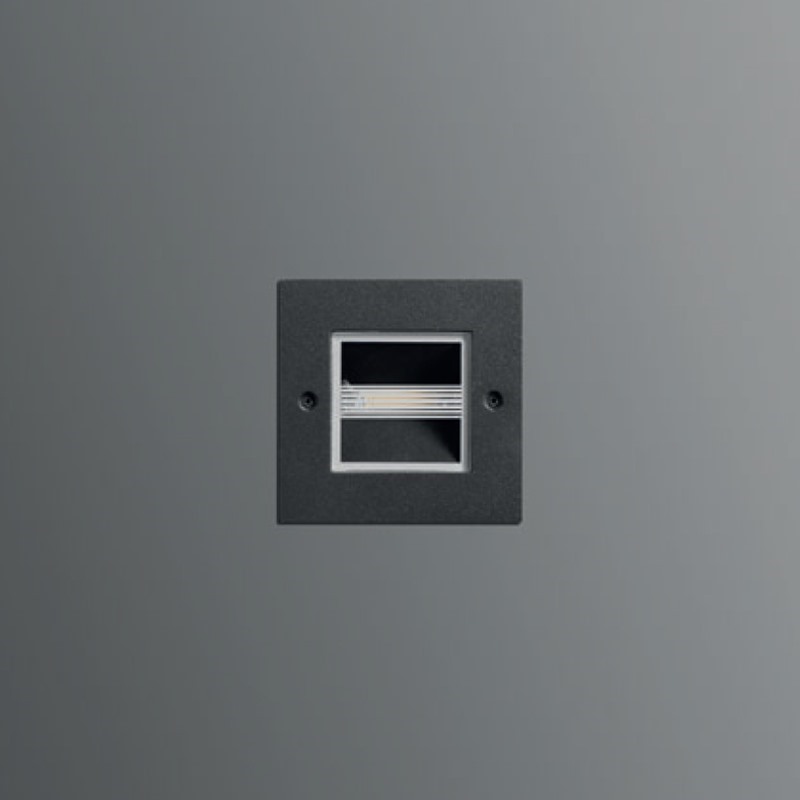

      Symmetrical With Anti-Glare Glass
    • IP
      IP65
  • Compare
    424122
    • Product Name
      Belkıs 1 LLS
    • Power - Current
      1x350 mA (4W) LED
    • Color
      4000 K
    • Lumen
      295 lm
    • Voltage
      240V AC with integrated driver (12V AC or 24V DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Tilt
      Symmetrical With Anti-Glare Glass
    • IP
      IP65
  • Compare
    424131
    • Product Name
      Belkıs 1 LLS
    • Power - Current
      1x350 mA (4W) LED
    • Color
      3000 K
    • Lumen
      255 lm
    • Voltage
      240V AC with integrated driver (12V AC or 24V DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Tilt

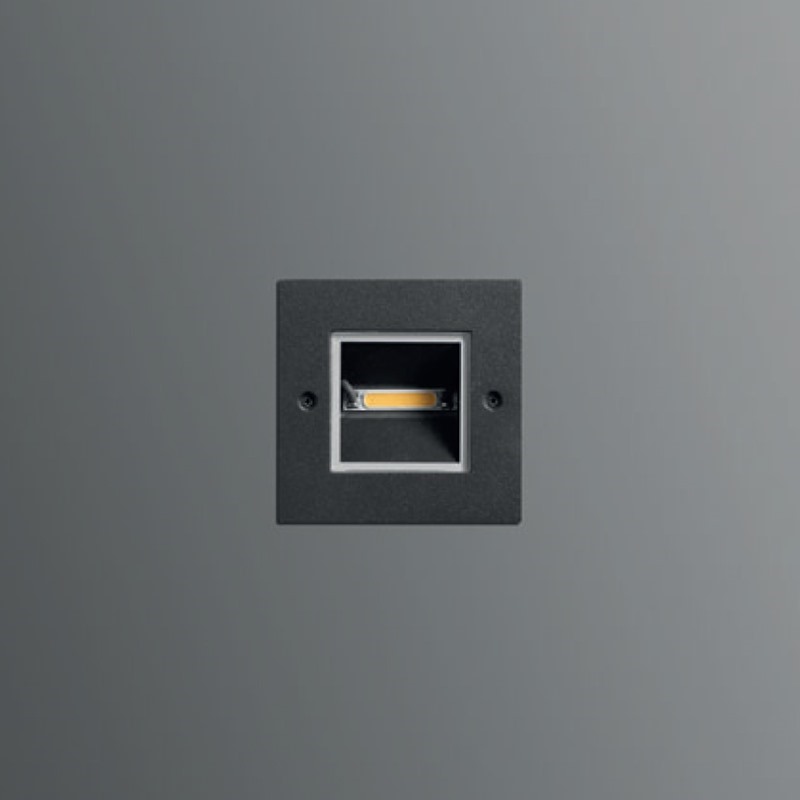

      Symmetrical With Clear Glass
    • IP
      IP65
  • Compare

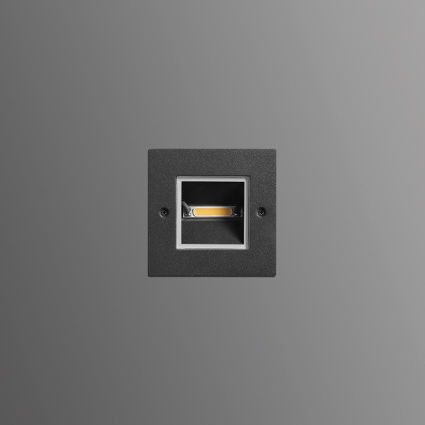

    424132
    • Product Name
      Belkıs 1 LLS
    • Power - Current
      1x350 mA (4W) LED
    • Color
      4000 K
    • Lumen
      295 lm
    • Voltage
      240V AC with integrated driver (12V AC or 24V DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • Tilt
      Symmetrical With Clear Glass
    • IP
      IP65
