TRIATHLON HALO 4

  • Technical Specifications
  • Body
    Die cast aluminium
  • Diffusers
    High efficiency frosted acrylic diffuser with 90º beam angle
  • Paint
    Electrostatic powder paint RAL 9016 (available in other RAL colors)
  • Gear
    Non-Dimmable electronic LED driver (1-10V Dimmable and DALI drivers available on request)
  • Cable
    0.5m exiting from top of fixture
  • Springs
    Steel for mounting in ceilings of 1-25mm thickness

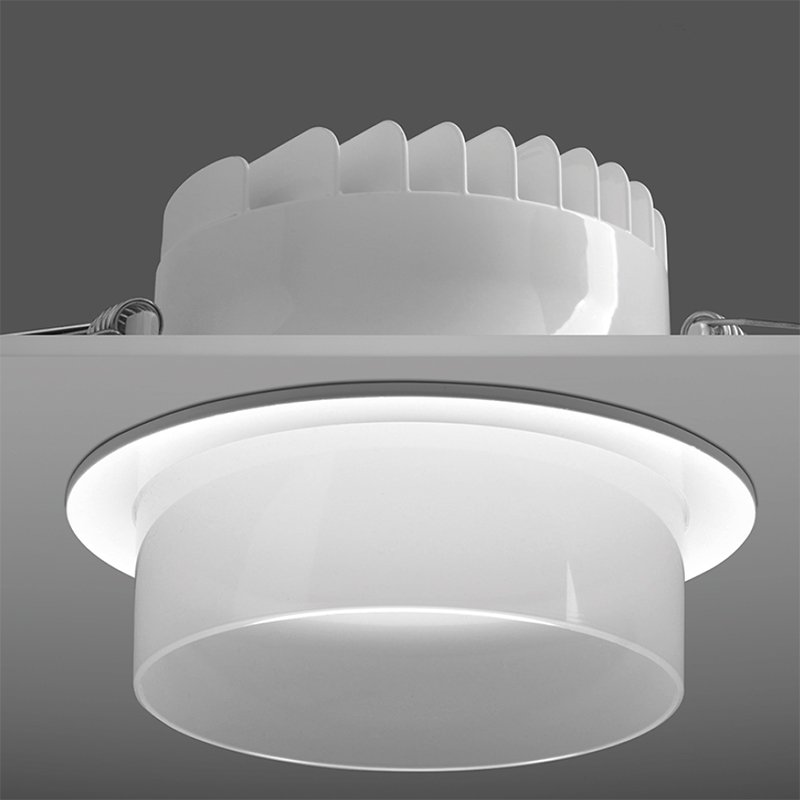

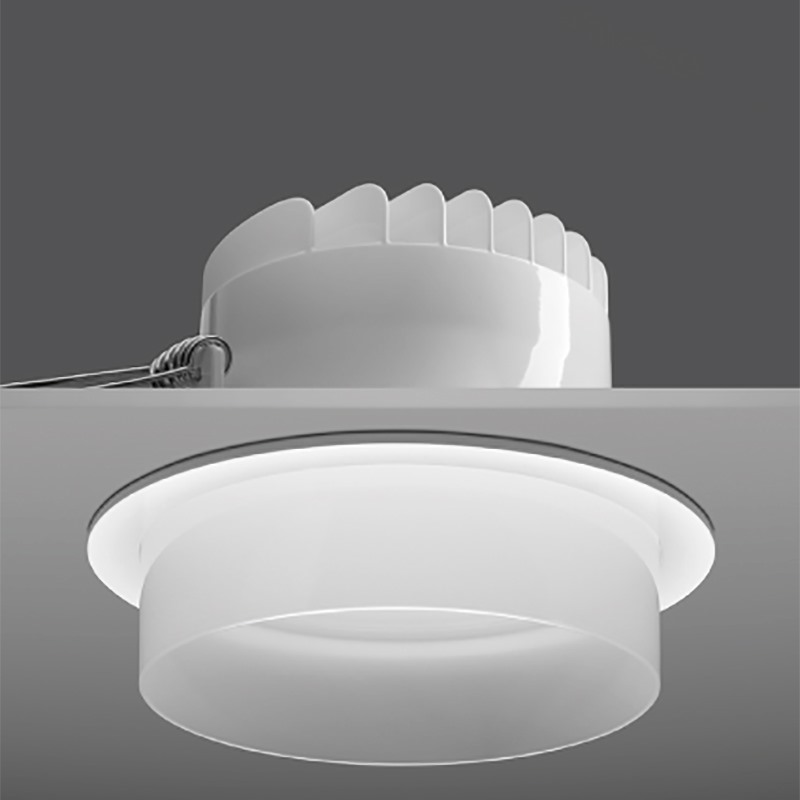

The Triathlon LED Downlight is specially designed to provide highest energy efficiency in general lighting applications. Using latest LED technology in combination with special plastic moulding and paint application allows for around 90lm/W lighting output. The highly efficient diffuser provides a completely homogenous light output. The simple installation method allows for easy installation into ceilings from 1-25mm thickness. One can choose from three compact sizes, 120mm, 150mm, and 175mm to achieve the desired lighting level.

PRODUCT LIST & DOWNLOAD

  • Compare
    269401
    • Product Name
      TRIATHLON HALO 4
    • Temp
      90°
    • Power - Current
      11W - 350 mA
    • Color
      2700 K
    • Lumen
      1280 lm
    • IP
      IP55
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    269402
    • Product Name
      TRIATHLON HALO 4
    • Reflector
      90°
    • Power - Current
      11W - 350 mA
    • Color
      3000 K
    • Lumen
      1280 lm
    • IP
      IP55
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    269411
    • Product Name
      TRIATHLON HALO 4
    • Reflector
      90°
    • Power - Current
      16w - 500 mA
    • Color
      2700 K
    • Lumen
      1600 lm
    • IP
      IP55
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    269412
    • Product Name
      TRIATHLON HALO 4
    • Reflector
      90°
    • Power - Current
      16w - 500 mA
    • Color
      3000 K
    • Lumen
      1600 lm
    • IP
      IP55
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    269421
    • Product Name
      TRIATHLON HALO 4
    • Reflector
      90°
    • Power - Current
      20W - 700 mA
    • Color
      2700 K
    • Lumen
      1900 lm
    • IP
      IP55
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    269422
    • Product Name
      TRIATHLON HALO 4
    • Reflector
      90°
    • Power - Current
      20W - 700 mA
    • Color
      3000 K
    • Lumen
      1900 lm
    • IP
      IP55
    • LED
      40 x Osram SMD LEDs ; over 110 lm/W
