ATLANTIS 5 (II)

  • Technical Specifications
  • Body
    316L Stainless Steel
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Screws
    Stainless Steel
  • Mounting Brackets
    316L Stainless Steel
  • Recessing Tube
    Aluminium

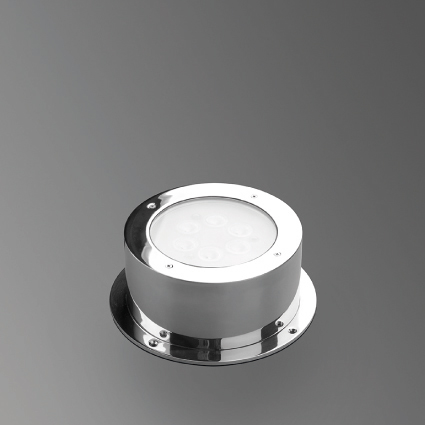

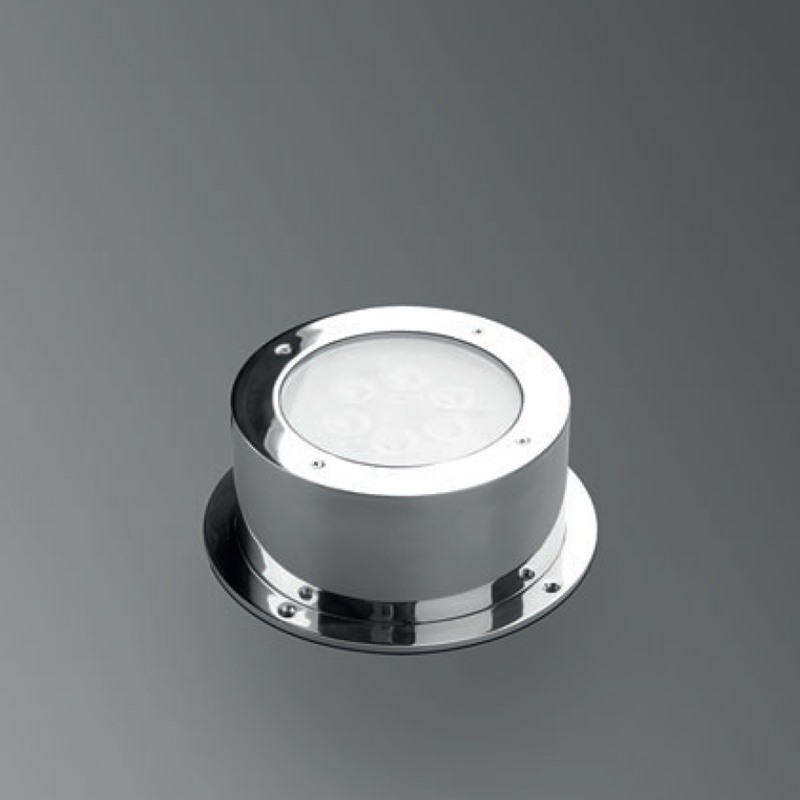

The Atlantis Near Water series is specially designed to light objects around pools, fountains, and water features or near the sea with high power LED light. The series is made of solid 316L stainless steel and can therefore withstand these rough environments. Standard finish is polished stainless steel to avoid collection of dirt and algae, but a brushed finish is also possible. The series comes as recessed, surface mount or spots. The spots are heavy duty with stainless steel brackets for sturdy fixing. A specially developed power cable ensures for a long lifetime in extreme conditions without any ingress of water. The low voltage electronic LED driver is housed in the base of the fixture. The LEDs used come in 3 different tones of white, as well as blue, red, green, amber or RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired the light effect.

PRODUCT LIST & DOWNLOAD

  • Compare
    412251
    • Product Name
      ATLANTIS 5
    • Power - Current
      6W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      24V AC or DC on request
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    412256
    • Product Name
      ATLANTIS 5
    • Power - Current
      6W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      24V AC or DC on request
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    412257
    • Product Name
      ATLANTIS 5
    • Power - Current
      6W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      612 lm
    • Voltage
      24V AC or DC on request
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    412271
    • Product Name
      ATLANTIS 5
    • Power - Current
      9W RGB LED
    • Color
      -
    • Lens
      25°, 40°
    • Lumen
      -
    • Voltage
      40V DC
    • Cable
      Potted 10m 4x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    421931
    • Product Name
      ATLANTIS 5
    • Power - Current
      18W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1350 lm
    • Voltage
      24V AC or DC on request
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    421932
    • Product Name
      ATLANTIS 5
    • Power - Current
      18W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1350 lm
    • Voltage
      24V AC or DC on request
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    421933
    • Product Name
      ATLANTIS 5
    • Power - Current
      18W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1620 lm
    • Voltage
      24V AC or DC on request
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • IP
      IP67
