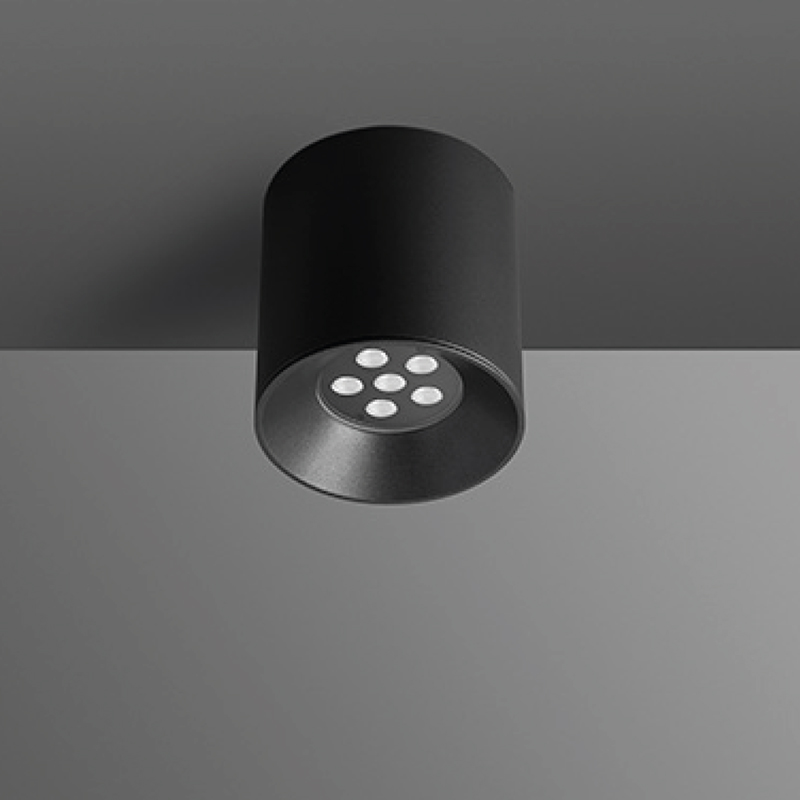

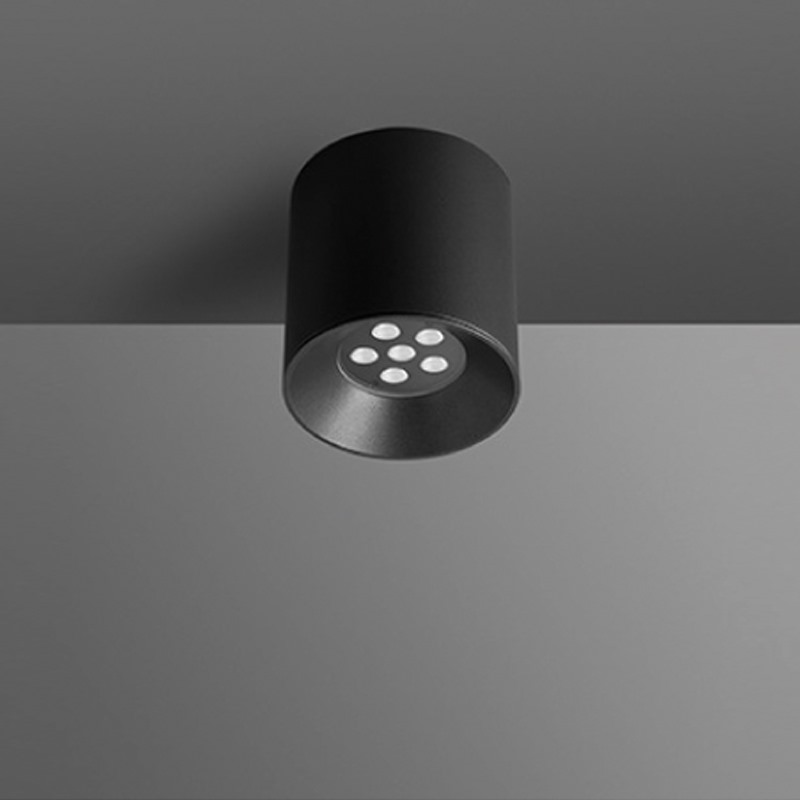

DECATHLON 3

  • Technical Specifications
  • Body
    Die cast aluminium designed to be heat sink
  • Diffusers
    Clear of frosted tempered Glass
  • Cover
    Die cast aluminium RAL9002 (available in other RAL colors as well as chrome or gold on request)
  • Gear
    Non-Dimmable electronic LED driver (1-10V Dimmable and DALI drivers available on request)
  • Cable
    0.5 m exiting top of fixture
  • Springs
    Die cast aluminium RAL9002 (available in other RAL colors as well as chrome or gold on request)
ORDER FORM

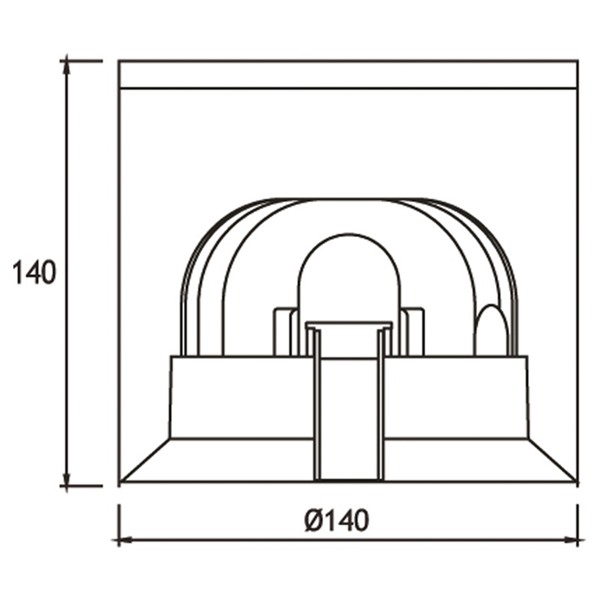

PRODUCT DRAWINGS

  • DECATHLON 3

PRODUCT LIST & DOWNLOAD

  • Compare
    266201
    • Product Name
      DECATHLON 3
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated Driver (24V AC or DC on request
    • Cable
      Potted 5 m 3 x 0,75 H03 VV-F
    • IP
      IP55
  • Compare
    266202
    • Product Name
      DECATHLON 3
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated Driver (24V AC or DC on request
    • Cable
      Potted 5 m 3 x 0,75 H03 VV-F
    • IP
      IP55
  • Compare
    266203
    • Product Name
      DECATHLON 3
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      612 lm
    • Voltage
      240V A.C with integrated Driver (24V AC or DC on request
    • Cable
      Potted 5 m 3 x 0,75 H03 VV-F
    • IP
      IP55
  • Compare
    266301
    • Product Name
      DECATHLON 3
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      935 lm
    • Voltage
      240V A.C with integrated Driver (24V AC or DC on request
    • Cable
      Potted 5 m 3 x 0,75 H03 VV-F
    • IP
      IP55
  • Compare
    266302
    • Product Name
      DECATHLON 3
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      935 lm
    • Voltage
      240V A.C with integrated Driver (24V AC or DC on request
    • Cable
      Potted 5 m 3 x 0,75 H03 VV-F
    • IP
      IP55
  • Compare
    266303
    • Product Name
      DECATHLON 3
    • Power - Current
      6 x 350 mA (6W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1070 lm
    • Voltage
      240V A.C with integrated Driver (24V AC or DC on request
    • Cable
      Potted 5 m 3 x 0,75 H03 VV-F
    • IP
      IP55
