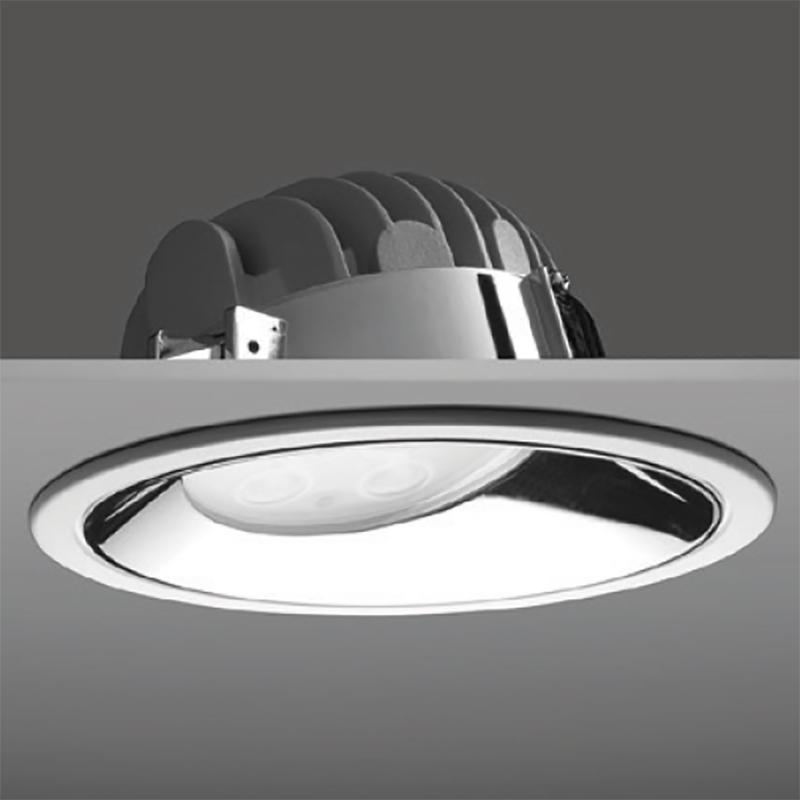

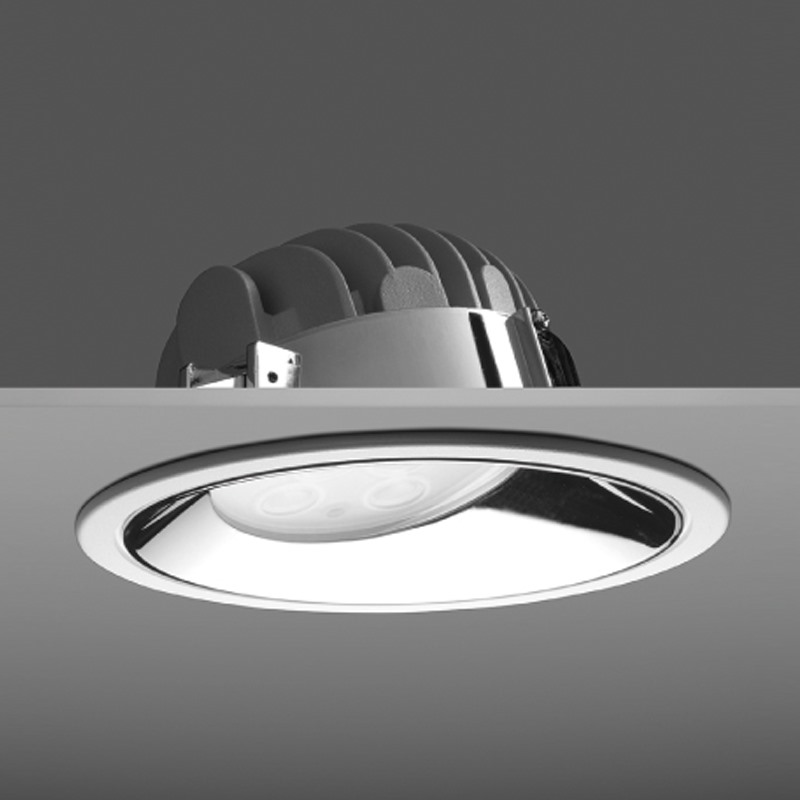

DECATHLONE 4 - Asymmetrical

  • Technical Specifications
  • Body
    Die cast aluminium designed to be heat sink
  • Diffusers
    Clear of frosted tempered Glass
  • Cover
    Die cast aluminium RAL9002 (available in other RAL colors as well as chrome or gold on request)
  • Gear
    Non-Dimmable electronic LED driver (1-10V Dimmable and DALI drivers available on request)
  • Cable
    0.5 m exiting top of fixture
  • Springs
    Stainless steel for mounting in ceilings or 1-25 mm (with plastic covers for the Marathon 2 Downlight)
ORDER FORM

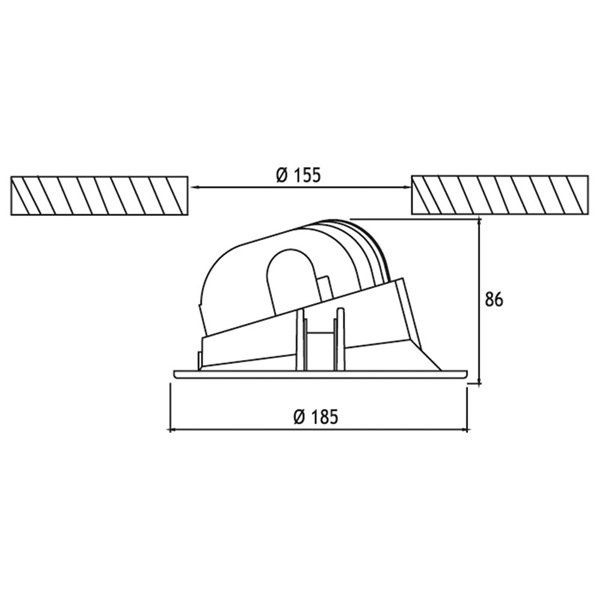

PRODUCT DRAWINGS

  • DECATHLONE 4 - Asymmetrical

PRODUCT LIST & DOWNLOAD

  • Compare
    267101
    • Product Name
      DECATHLONE 4 - Asymmetrical
    • Power - Current
      1 x 350 mA (25W)
    • Color
      3000 K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Lumen
      1645 lm
    • IP
      IP65
    • LED
      COB LED
  • Compare
    267103
    • Product Name
      DECATHLONE 4 - Asymmetrical
    • Power - Current
      1 x 350 mA (25W)
    • Color
      4000 K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Lumen
      1974 lm
    • IP
      IP65
    • LED
      COB LED
  • Compare
    267121
    • Product Name
      DECATHLONE 4 - Asymmetrical
    • Power - Current
      1 x 500 mA (32W)
    • Color
      3000 K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Lumen
      2134 lm
    • IP
      IP65
    • LED
      COB LED
  • Compare
    267123
    • Product Name
      DECATHLONE 4 - Asymmetrical
    • Power - Current
      1 x 500 mA (32W)
    • Color
      4000 K
    • Lens
      10°, 20°, 30° Mirror TIR Lens
    • Lumen
      2561 lm
    • IP
      IP65
    • LED
      COB LED
