MIRA 2

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    12 mm Tempered Glass
  • Screws
    316L Stainless steel
  • Cover
    316L Stainless steel

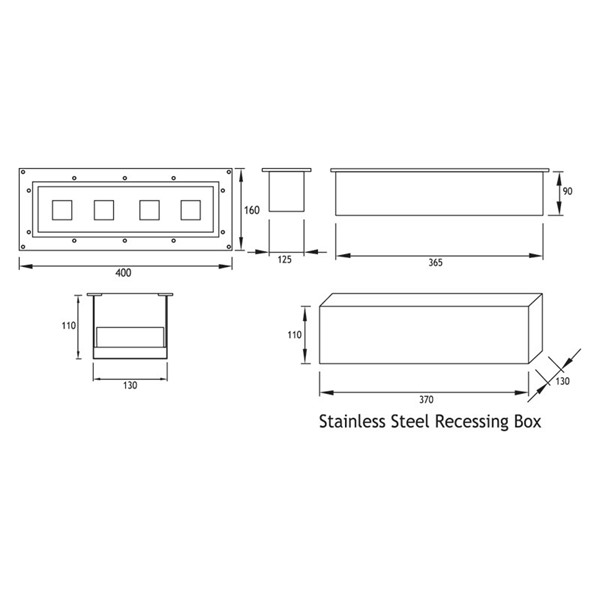

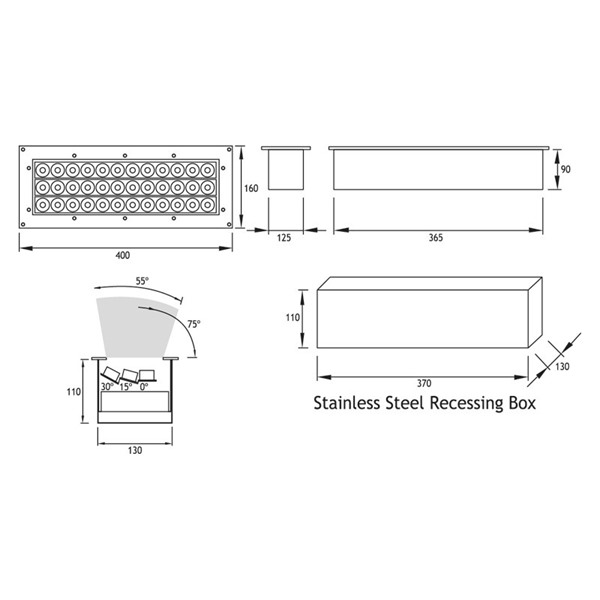

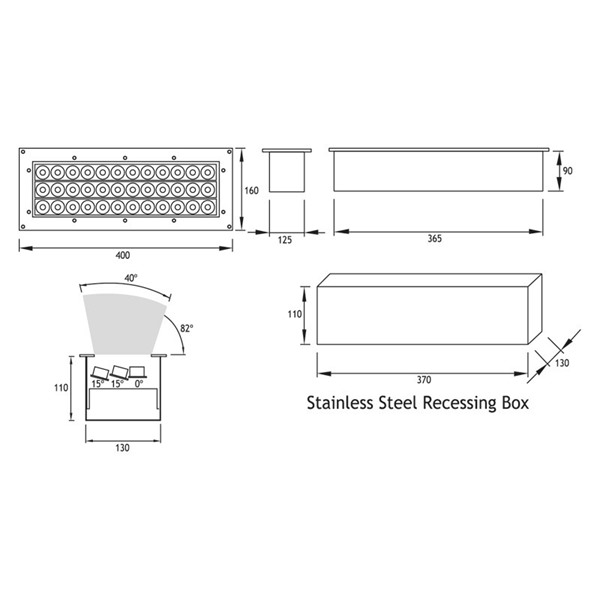

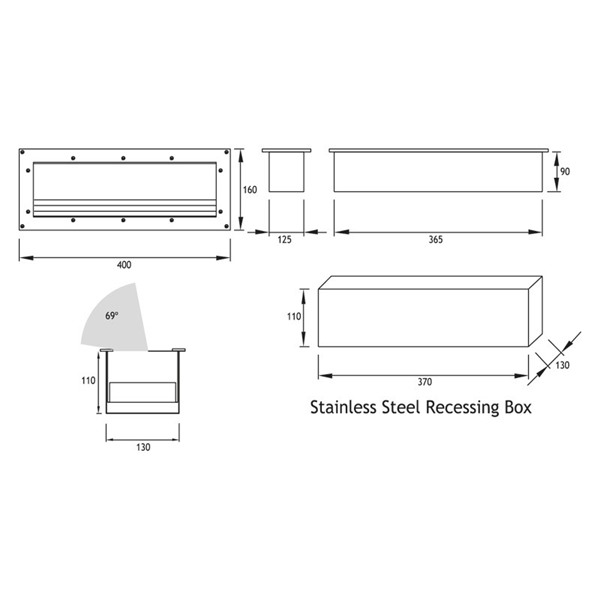

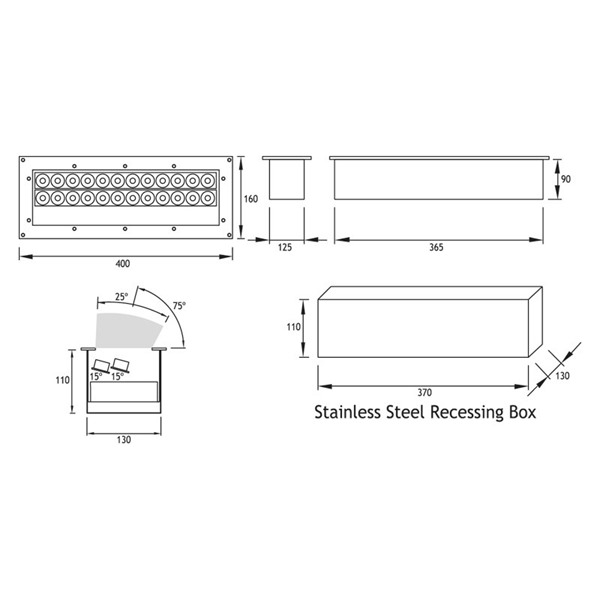

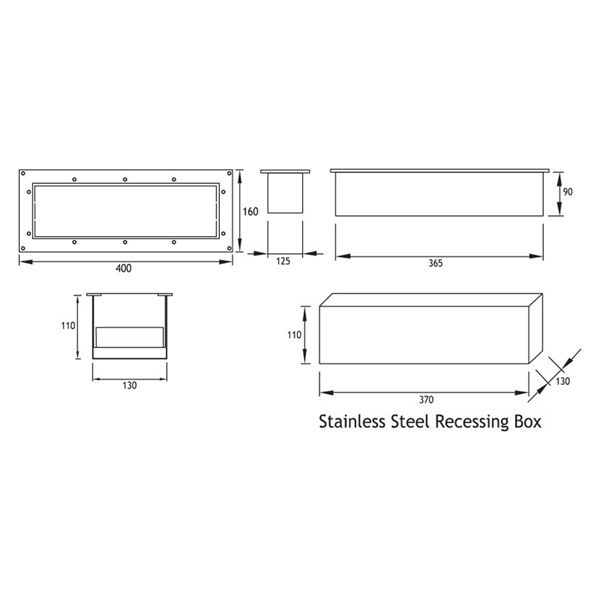

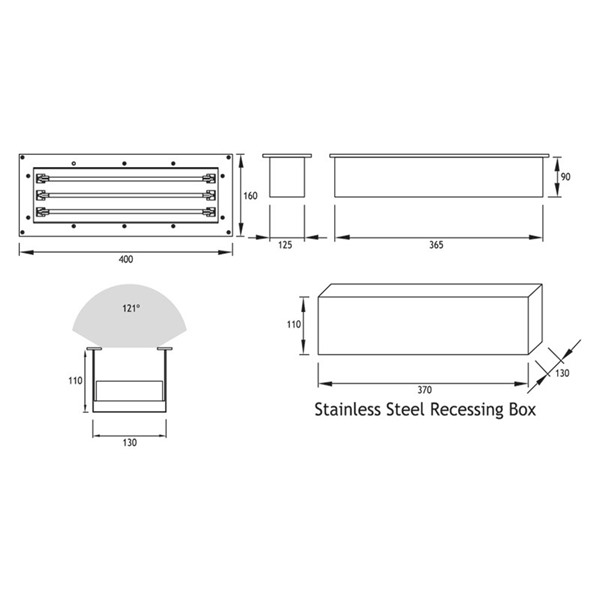

  • Recessing Box
    Stainless steel

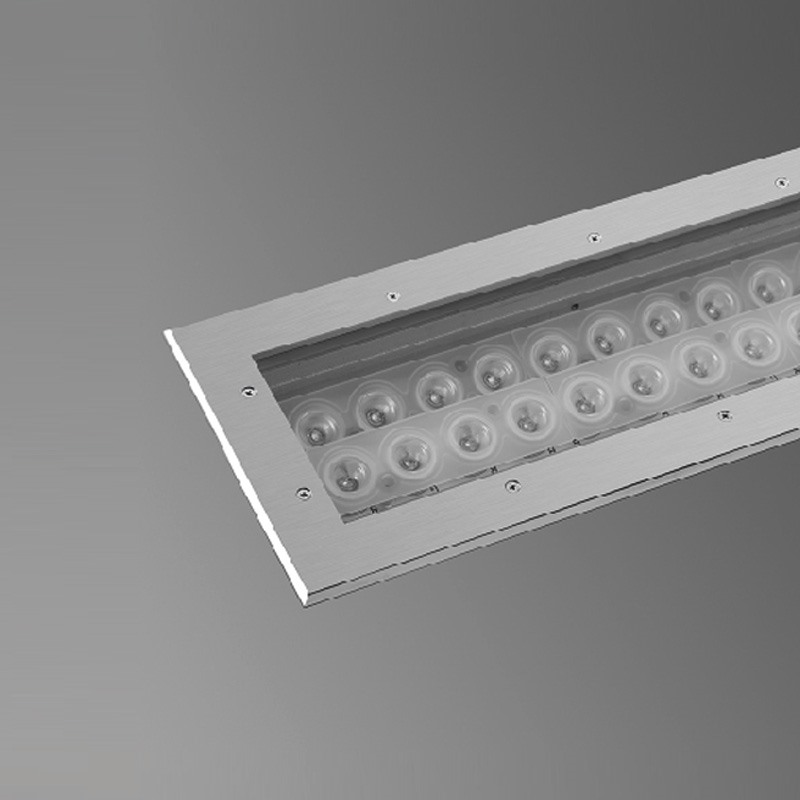

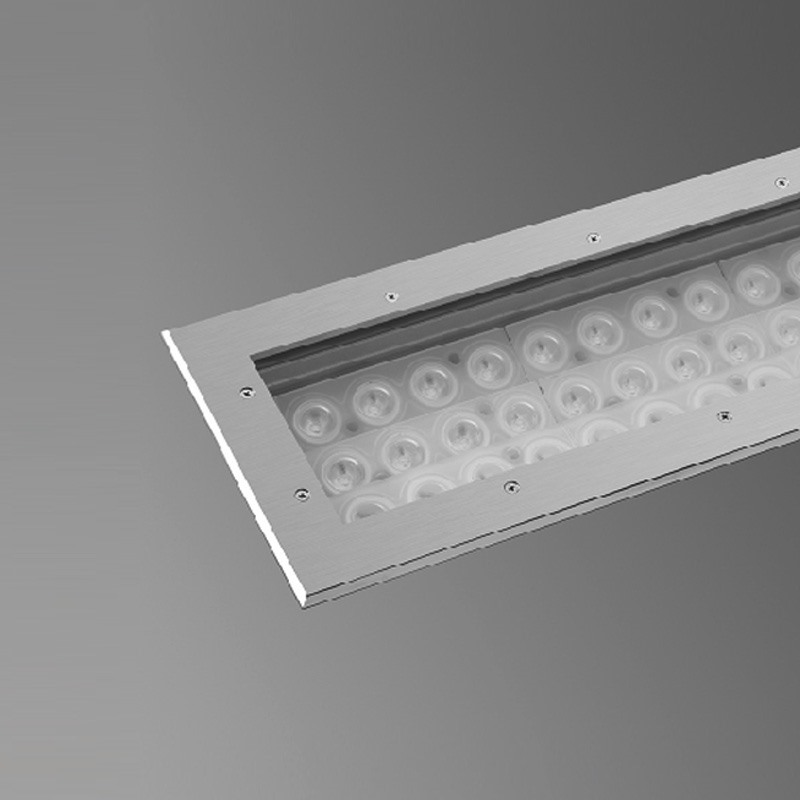

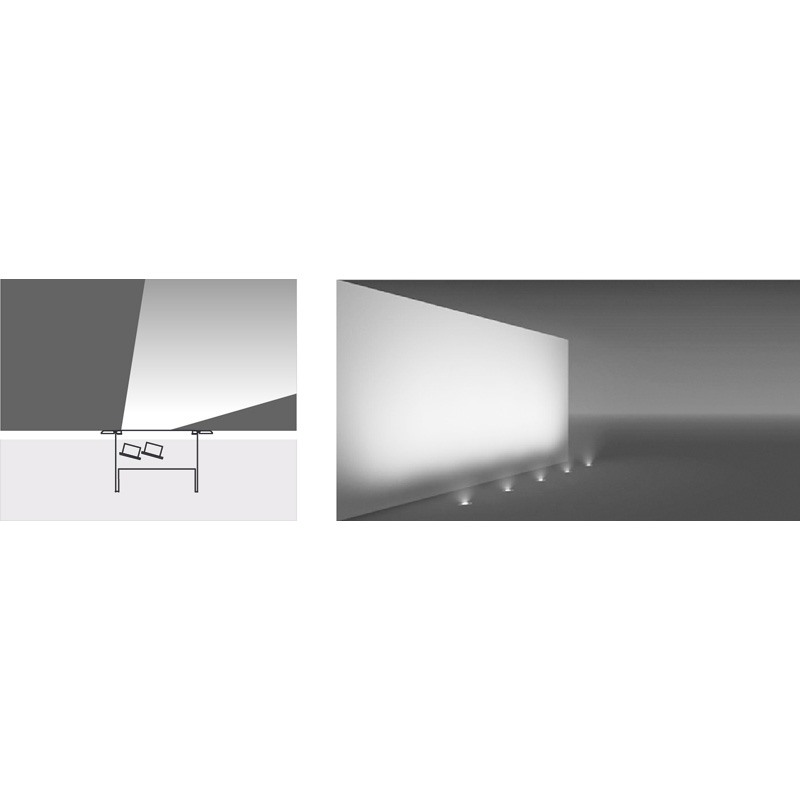

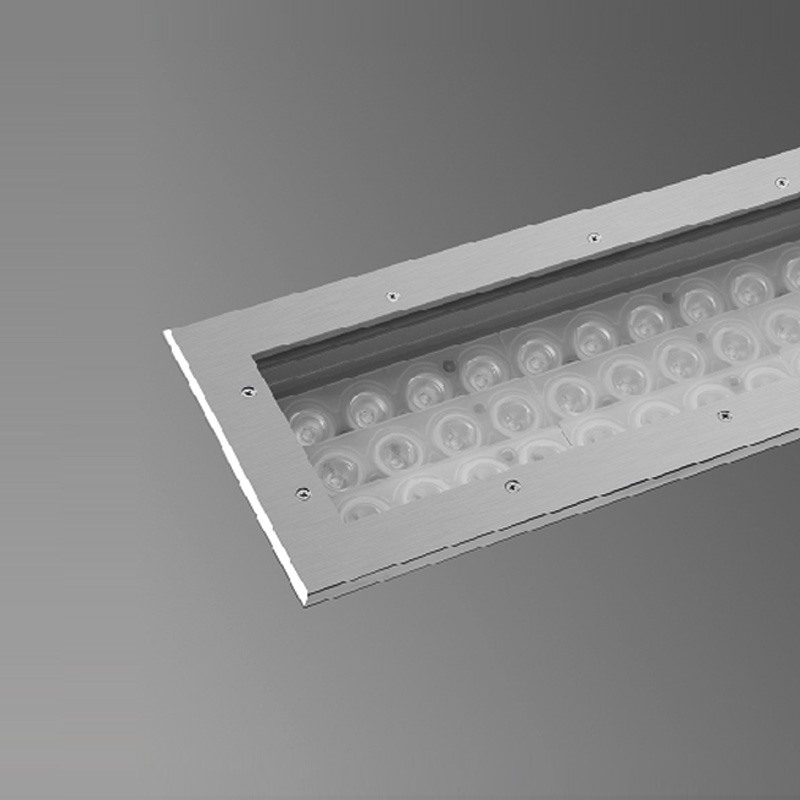

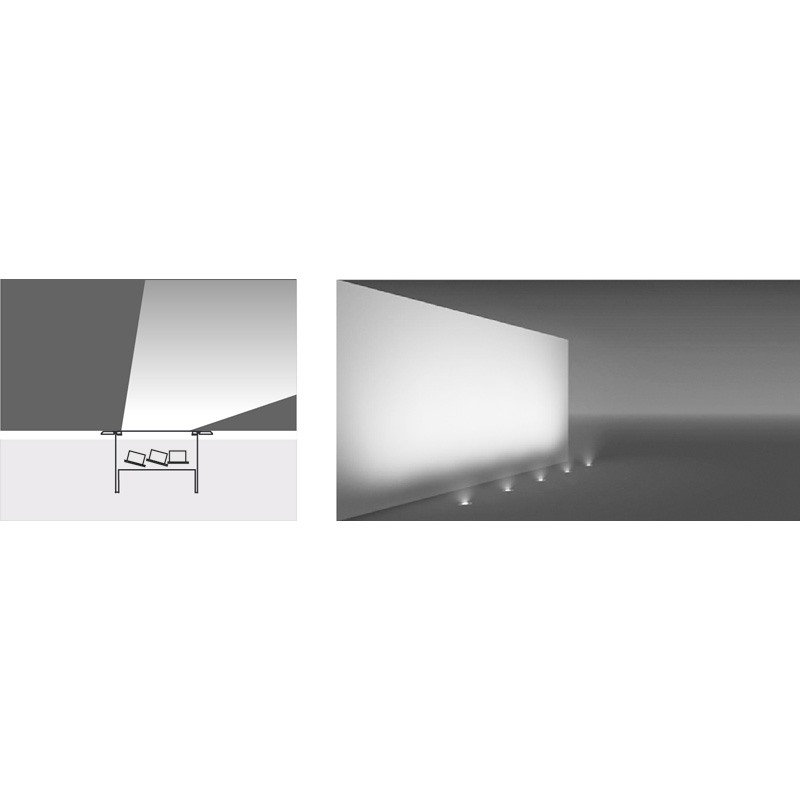

The Mira series consists of a range of LED and fluorescent sources to deliver the desired light effect to facades, columns, bridges, monuments, and signs. The series is made of a die cast aluminium body with electrostatic powder paint finished with a 316L stainless steel cover. The recessed versions are for drive over up to 20 kN including a stainless steel recessing box. The surface mounted verisons come with integrated electronic ballasts and a specially developed potted power cable to effectively bond with the cast resin and stop any water ingress. The LEDs used come in 3 different tones of white, as well as blue, red, green, amber and RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired the light effect.

PRODUCT LIST & DOWNLOAD

  • Compare
    430401
    • Product Name
      MIRA 2 15° + 15° ASYMMETRICAL LED
    • Power - Current
      24 x 350 mA (24 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      2040 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430406
    • Product Name
      MIRA 2 15° + 15° ASYMMETRICAL LED
    • Power - Current
      24 x 350 mA (24 W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      2040 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430407
    • Product Name
      MIRA 2 15° + 15° ASYMMETRICAL LED
    • Power - Current
      24 x 350 mA (24 W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      2448 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430501
    • Product Name

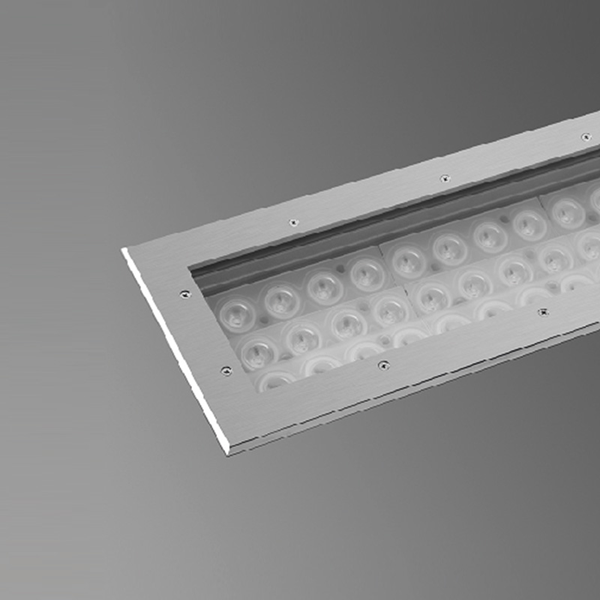

      MIRA 2 0° + 15° + 15° ASYMMETRICAL LED
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      3060 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430506
    • Product Name
      MIRA 2 0° + 15° + 15° ASYMMETRICAL LED
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      3060 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430507
    • Product Name
      MIRA 2 0° + 15° + 15° ASYMMETRICAL LED
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      3672 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430601
    • Product Name
      MIRA 2 30° + 15° + 0° ASYMMETRICAL LED
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      3060 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430606
    • Product Name
      MIRA 2 30° + 15° + 0° ASYMMETRICAL LED
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      3060 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430607
    • Product Name
      MIRA 2 30° + 15° + 0° ASYMMETRICAL LED
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      3672 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430611
    • Product Name
      MIRA 2 SYMMETRICAL LED
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      3060 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430612
    • Product Name
      MIRA 2 SYMMETRICAL LED
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      3060 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430613
    • Product Name
      MIRA 2 SYMMETRICAL LED
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      3060 lm
    • Voltage
      240V AC with integrated driver for RGB "240V AC with remote driver"
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430701
    • Product Name

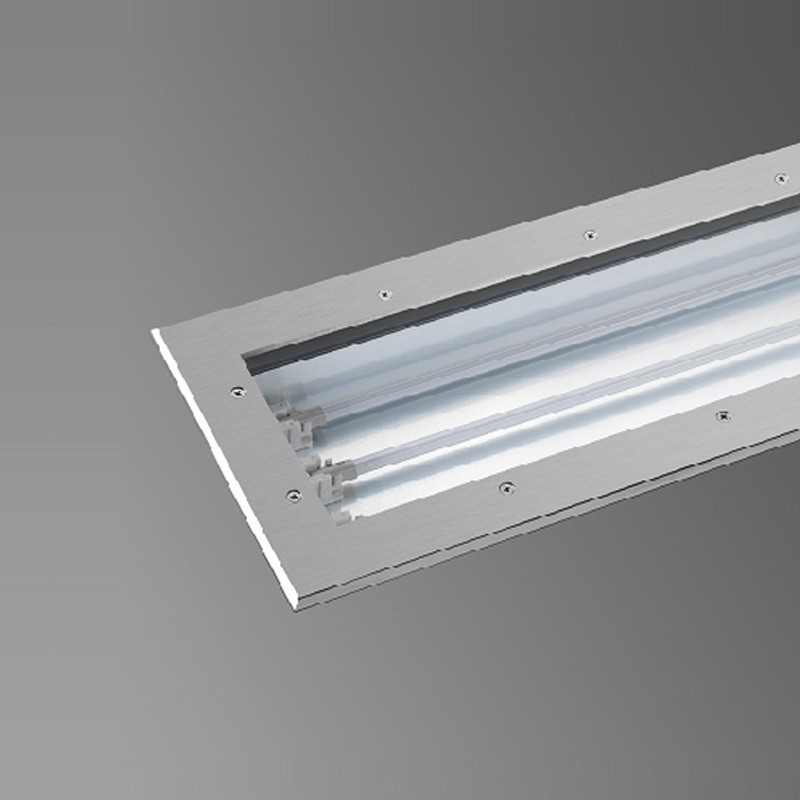

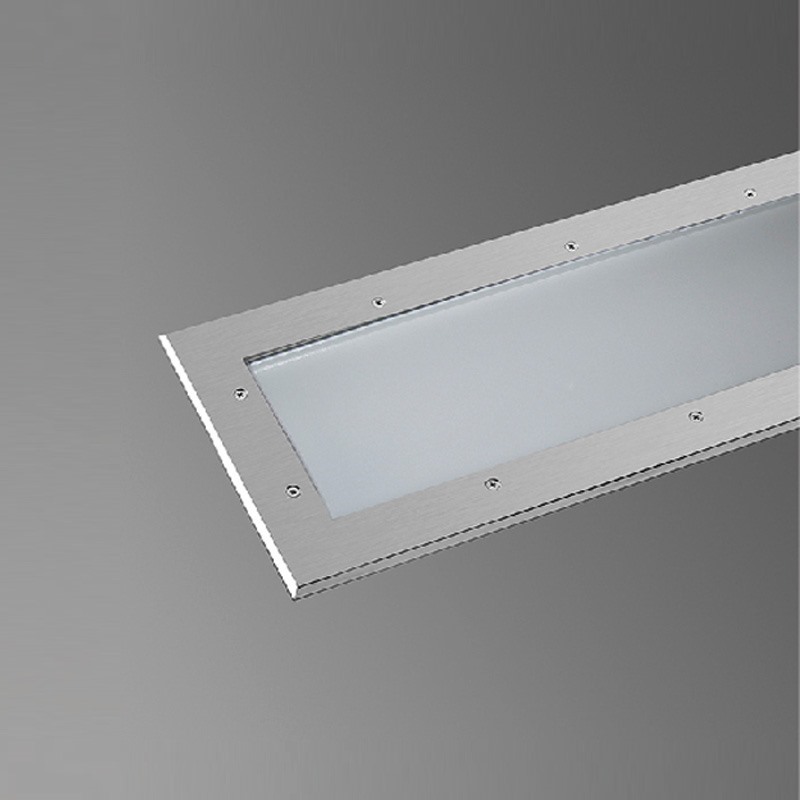

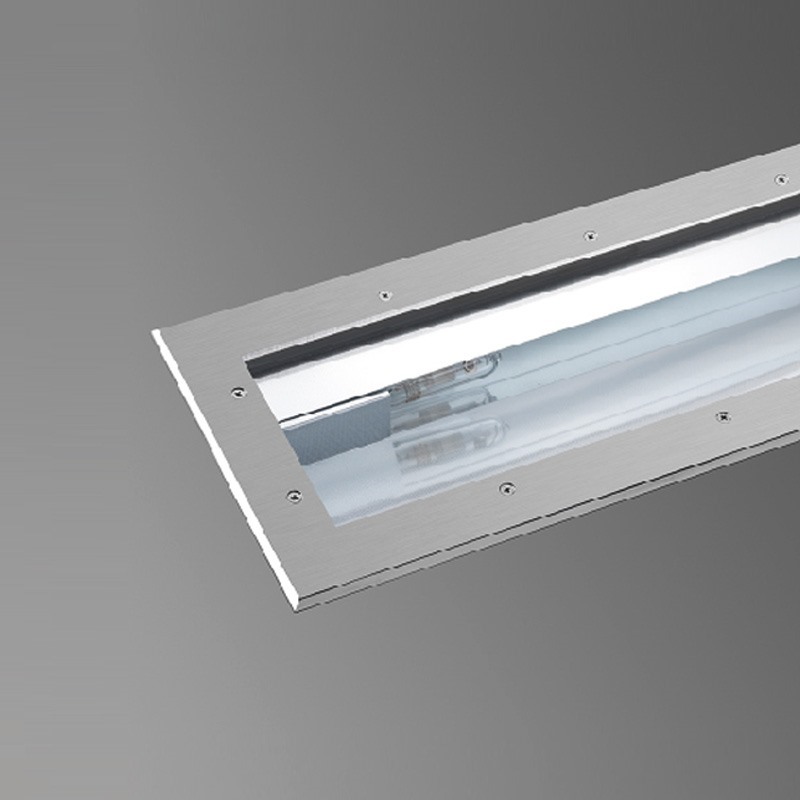

      MIRA 2 SYMMETRICAL FLUO.
    • Reflector
      Symmetrical
    • Power - Current
      FLUO T-2 3x8W (included)
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated ballast
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
    • Ballast
      Electronic
    • Lampholder
      W 4,3 x 8,5 d
  • Compare
    430701
    • Product Name
      MIRA 2 ASYMMETRICAL METAL HALIDE
    • Reflector
      Symmetrical
    • Power - Current
      Metal Halide 70W (not included)
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated ballast
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
    • Ballast
      Electronic
    • Lampholder
      G 8,5
  • Compare
    430721
    • Product Name

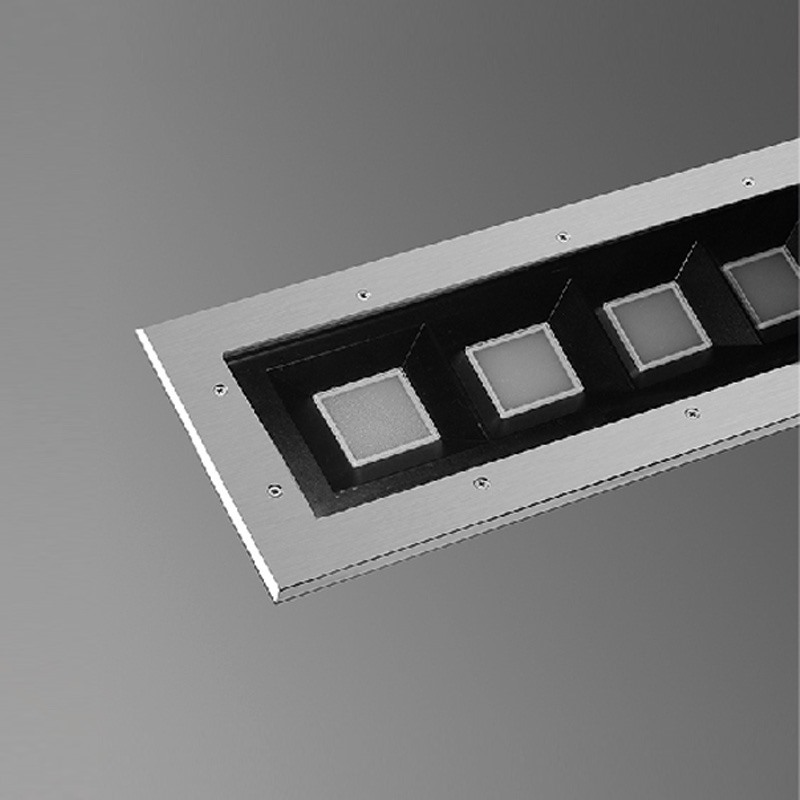

      MIRA 2 SYMMETRICAL LED
    • Power - Current
      4 x 350 mA (12 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1400 lm
    • Voltage
      240V AC with integrated ballast (12V DC or 24V DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430722
    • Product Name
      MIRA 2 SYMMETRICAL LED
    • Power - Current
      4 x 350 mA (12 W) LED
    • Color
      5000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1680 lm
    • Voltage
      240V AC with integrated ballast (12V DC or 24V DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430731
    • Product Name
      MIRA 2 SYMMETRICAL LED
    • Power - Current
      4 x 350 mA (12 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      700 lm
    • Voltage
      240V AC with integrated ballast (12V DC or 24V DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430732
    • Product Name
      MIRA 2 SYMMETRICAL LED
    • Power - Current
      4 x 350 mA (12 W) LED
    • Color
      5000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      840 lm
    • Voltage
      240V AC with integrated ballast (12V DC or 24V DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
