PINARA 2 - Symmetrical

  • Technical Specifications
  • Body
    Polycarbonate
  • Diffusers
    With clear or frosted tempered glass, without glass
  • Gear
    Non-Dimmable electronic LED driver (1-10V Dimmable and DALI drivers available on request)
  • Cable
    0.5 m exiting top of fixture
  • IP
    20
  • Heatsing
    Aluminium extrusion profile
  • Springs
    Steel
  • LED
    350 - 500 - 700 mA (Nichia)

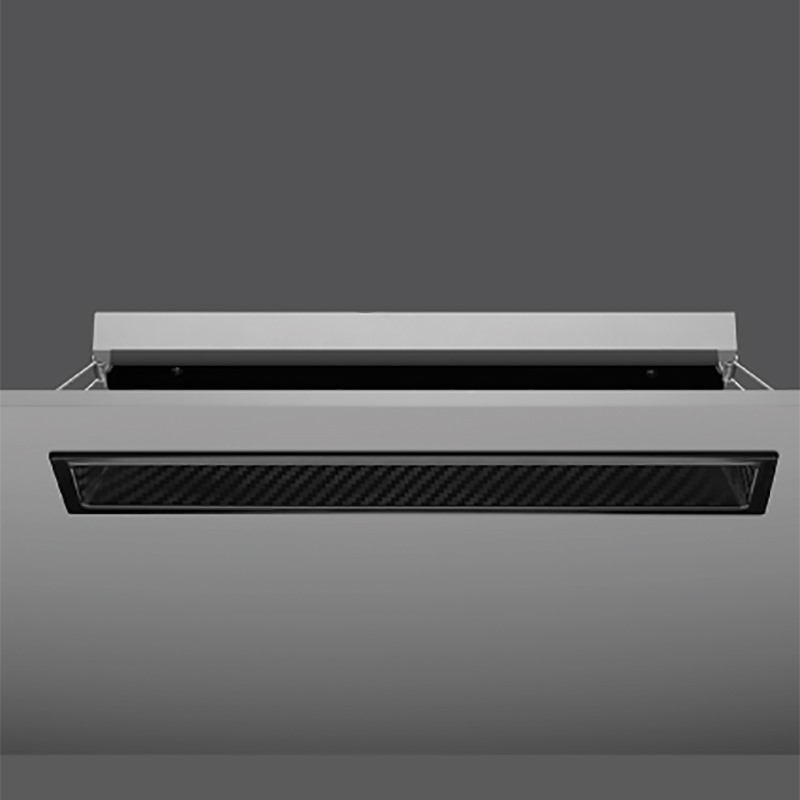

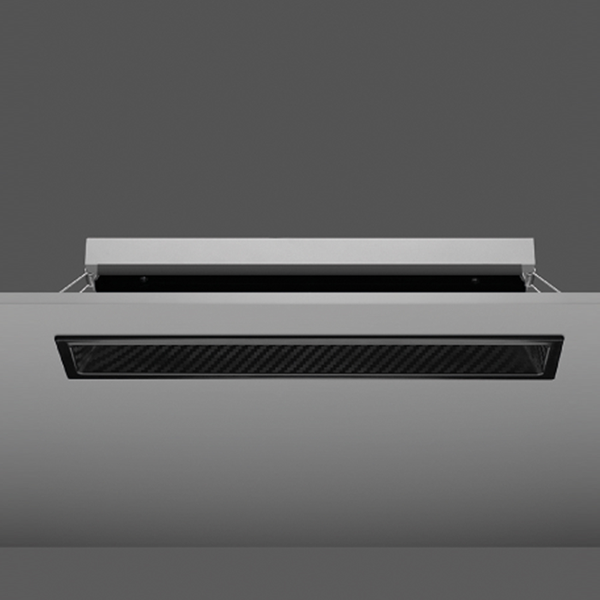

The PINARA LED downlight is specially designed to deliver high output LED light with very clean beam angles to corridors, hotel rooms, museums and general lighting of public spaces. The Nichia LEDs in the PINARA are very efficient and have a high CRI (90). The unique lens that is used in this fixture creates very sharp beams that minimize the spill of uncontrolled light from the fixture. This reduces the glare of the fixture and gives more control to the architects and designers.

PRODUCT LIST & DOWNLOAD

  • Compare
    392101
    • Product Name
      PINARA 2
    • Power - Current
      10W - 350 mA
    • Color
      3000 K
    • Lumen
      1050 lm
    • Tilt
      Symmetrical
    • IP
      IP20
    • LED
      350 - 500 - 700 mA (Nichia)
  • Compare
    392102
    • Product Name
      PINARA 2
    • Power - Current
      15W - 500 mA
    • Color
      3000 K
    • Lumen
      1500 lm
    • Tilt
      Symmetrical
    • IP
      IP20
    • LED
      350 - 500 - 700 mA (Nichia)
  • Compare
    392103
    • Product Name
      PINARA 2
    • Power - Current
      21W - 700 mA
    • Color
      3000K
    • Lumen
      2050 lm
    • Tilt
      Symmetrical
    • IP
      IP20
    • LED
      350 - 500 - 700 mA (Nichia)
  • Compare
    392111
    • Product Name
      PINARA 2
    • Power - Current
      10W - 350 mA
    • Color
      4000 K
    • Lumen
      1150 lm
    • Tilt
      Symmetrical
    • IP
      IP20
    • LED
      350 - 500 - 700 mA (Nichia)
  • Compare
    392112
    • Product Name
      PINARA 2
    • Power - Current
      15W - 500 mA
    • Color
      4000 K
    • Lumen
      1600 lm
    • Tilt
      Symmetrical
    • IP
      IP20
    • LED
      350 - 500 - 700 mA (Nichia)
  • Compare
    392113
    • Product Name
      PINARA 2
    • Power - Current
      21W - 700 mA
    • Color
      4000 K
    • Lumen
      2200 lm
    • Tilt
      Symmetrical
    • IP
      IP20
    • LED
      350 - 500 - 700 mA (Nichia)
