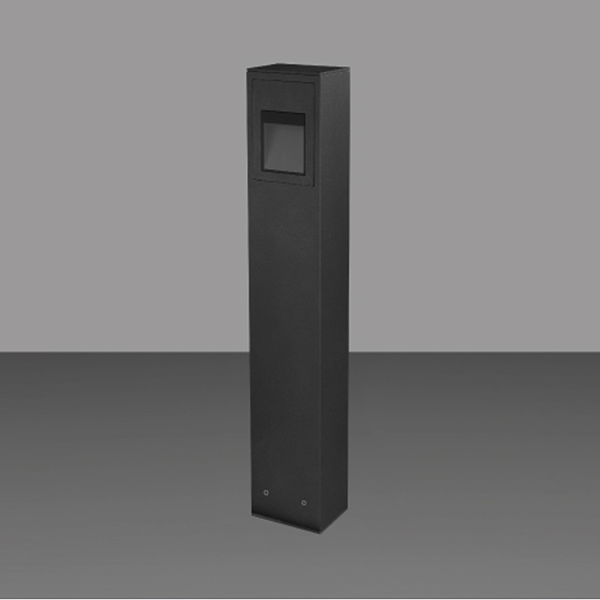

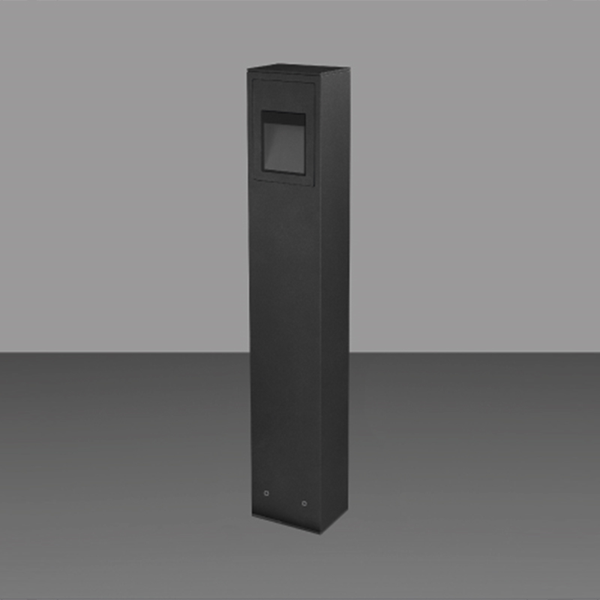

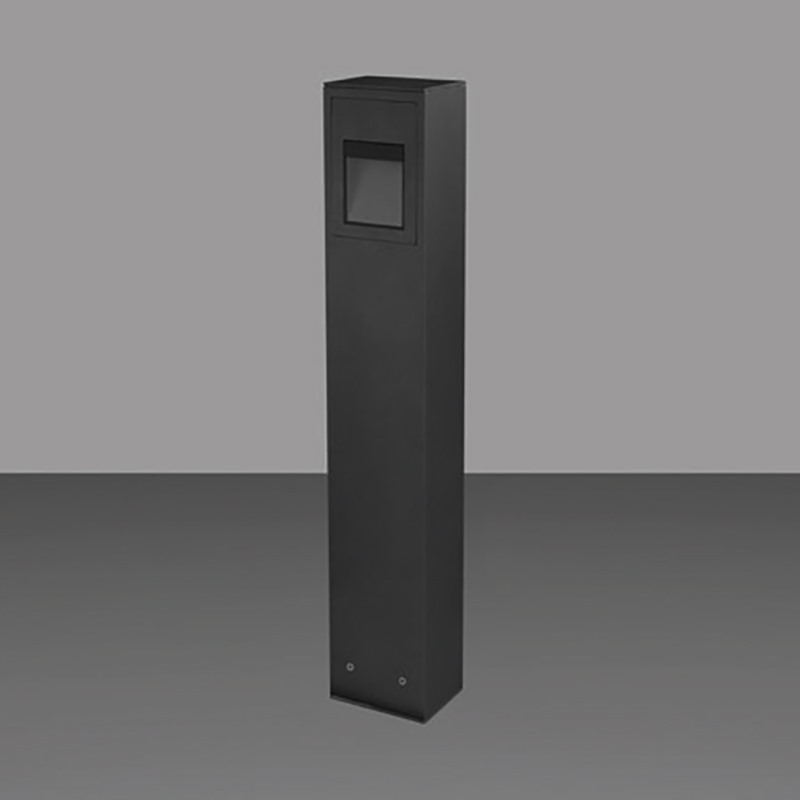

ANI 1 ASYMMETRICAL

  • Technical Specifications
  • Body
    Die cast aluminium
  • Profile
    Aluminium
  • Gaskets
    Silicone
  • Diffusers
    4 mm Tempered Glass
  • Screws
    316L Stainless steel
  • Glands
    PG 11
EMFA offers many combinations for each fixture, as all fixtures are made in house. A combination of 6 standard paint colors, 8 LED colors, and 2 wattages, and available to make the fixture suitable for the required application. This is done without increasing lead-time and is available for large as well as small quantities.

PRODUCT LIST & DOWNLOAD

  • Compare
    452001
    • Product Name
      Ani 1 Asymmetrical (450 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      600 lm
    • Nominal Lumen Output
      850 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452501
    • Product Name
      Ani 1 Asymmetrical (450 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      600 lm
    • Nominal Lumen Output
      850 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452502
    • Product Name
      Ani 1 Asymmetrical (450 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      690 lm
    • Nominal Lumen Output
      977 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452511
    • Product Name
      Ani 1 Asymmetrical (450 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      12W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1020 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452512
    • Product Name
      Ani 1 Asymmetrical (450 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      12W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1173 lm
    • Nominal Lumen Output
      1679 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452601
    • Product Name
      Ani 1 Asymmetrical (700 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      600 lm
    • Nominal Lumen Output
      850 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452602
    • Product Name
      Ani 1 Asymmetrical (700 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      690 lm
    • Nominal Lumen Output
      977 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452611
    • Product Name
      Ani 1 Asymmetrical (700 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      12W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1020 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452612
    • Product Name
      Ani 1 Asymmetrical (700 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      12 W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1173 lm
    • Nominal Lumen Output
      1679 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452701
    • Product Name
      Ani 1 Asymmetrical (1100 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      600 lm
    • Nominal Lumen Output
      850 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452702
    • Product Name
      Ani 1 Asymmetrical (1100 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      6W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      690 lm
    • Nominal Lumen Output
      977 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452711
    • Product Name
      Ani 1 Asymmetrical (1100 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      12 W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1020 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    452712
    • Product Name
      Ani 1 Asymmetrical (1100 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      12 W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1020 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP55
    • LED
      Linear LEDs
