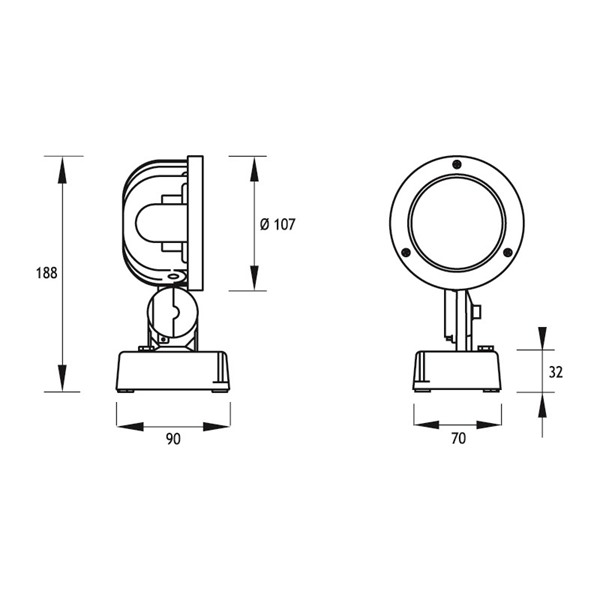

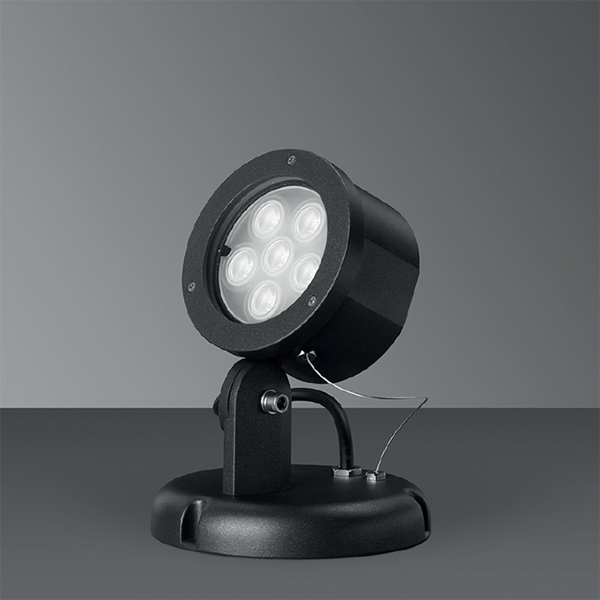

BELKIS 3 - LED DRIVER IN BASE

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Paint
    Electrostatic powder
"Customization" is EMFA's standard
EMFA offers many combinations for each fixture, as all fixtures are made in house. A combination of 6 standard paint colors, 8 LED colors, 2 wattages, and 5 or more lenses and reflectors are available to make the fixture suitable for the required application. This is done without increasing lead-time and is available for large as well as small quantities.

PRODUCT LIST & DOWNLOAD

  • Compare
    121101
    • Product Name

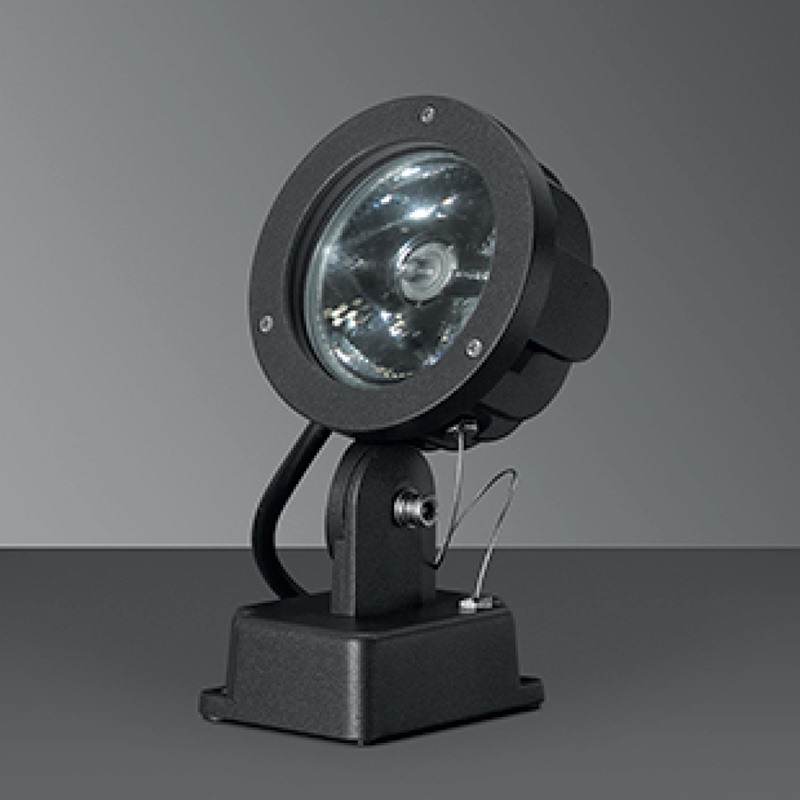

      BELKIS 3 - LED SPOT WITH TIR LENS FIXTURES LED DRIVER IN BASE
    • Power - Current
      12W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40° Mirror TIR Lens
    • Lumen
      655 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    121102
    • Product Name
      BELKIS 3 - LED SPOT WITH TIR LENS FIXTURES LED DRIVER IN BASE
    • Power - Current
      12W LED
    • Color
      4000 K
    • Lens
      10°, 25°, 40° Mirror TIR Lens
    • Lumen
      786 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare

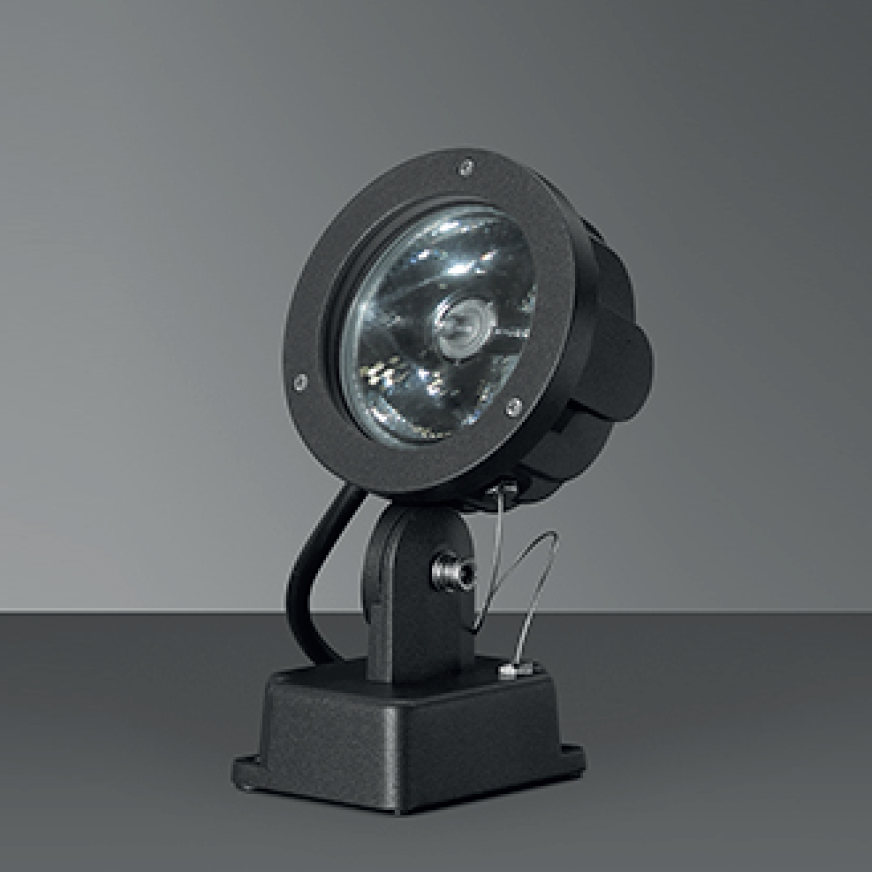

    121111
    • Product Name
      BELKIS 3 - LED SPOT WITH TIR LENS FIXTURES LED DRIVER IN BASE
    • Power - Current
      18W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40° Mirror TIR Lens
    • Lumen
      1153 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare

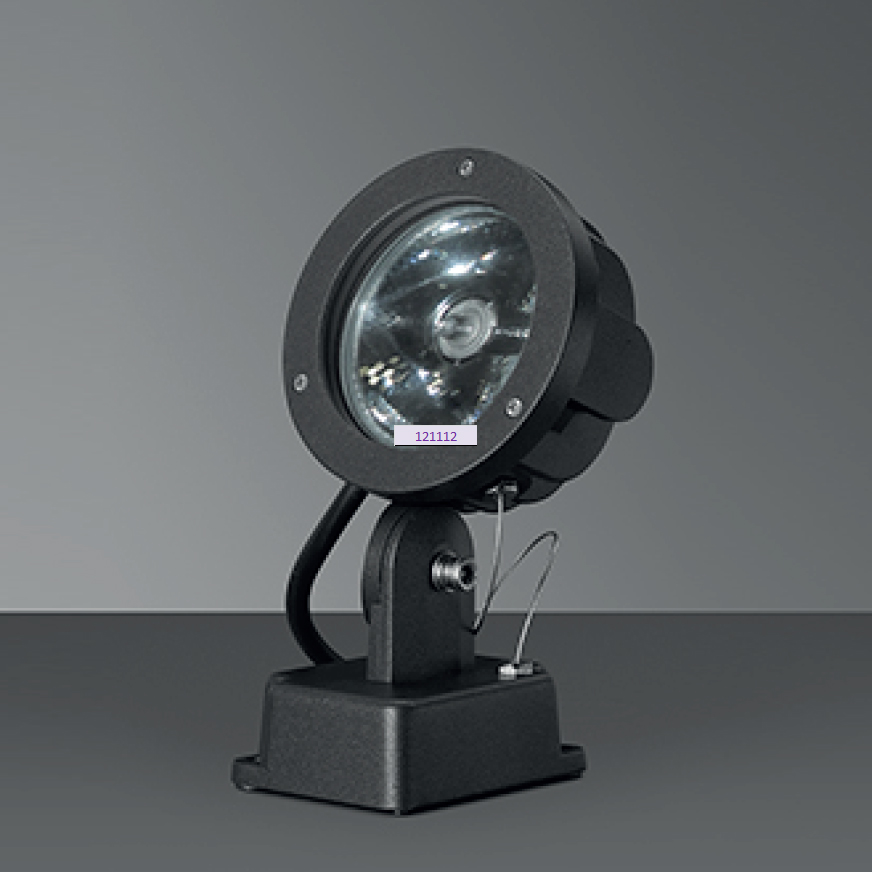

    121112
    • Product Name
      BELKIS 3 - LED SPOT WITH TIR LENS FIXTURES LED DRIVER IN BASE
    • Power - Current
      18W LED
    • Color
      4000 K
    • Kelvin
      1383 lm
    • Lens
      10°, 25°, 40° Mirror TIR Lens
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331311
    • Product Name

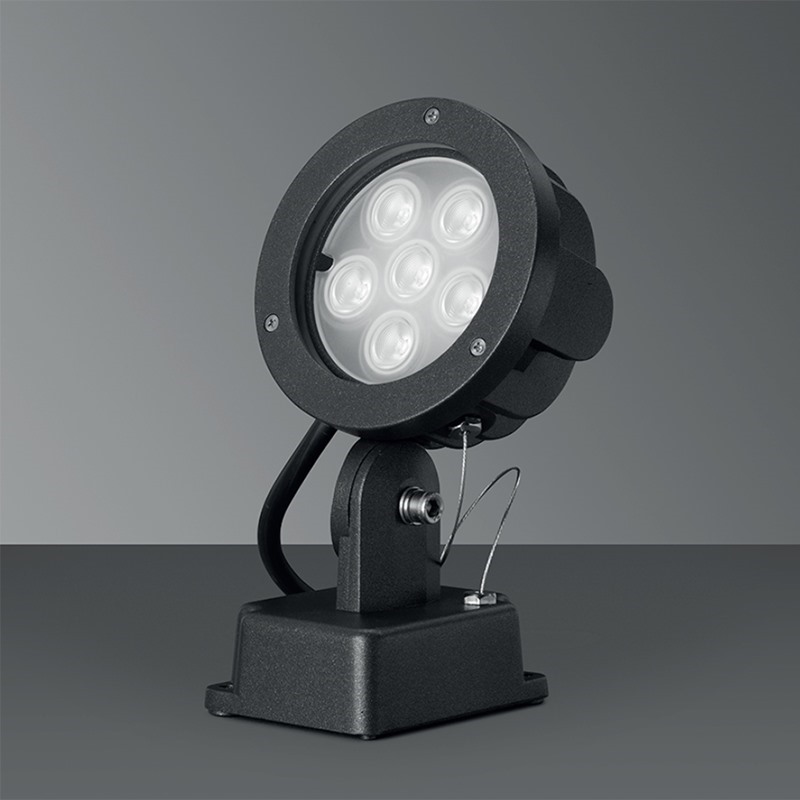

      BELKIS 3 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      6W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331316
    • Product Name
      BELKIS 3 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      6W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331317
    • Product Name
      BELKIS 3 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      6W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      612 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare

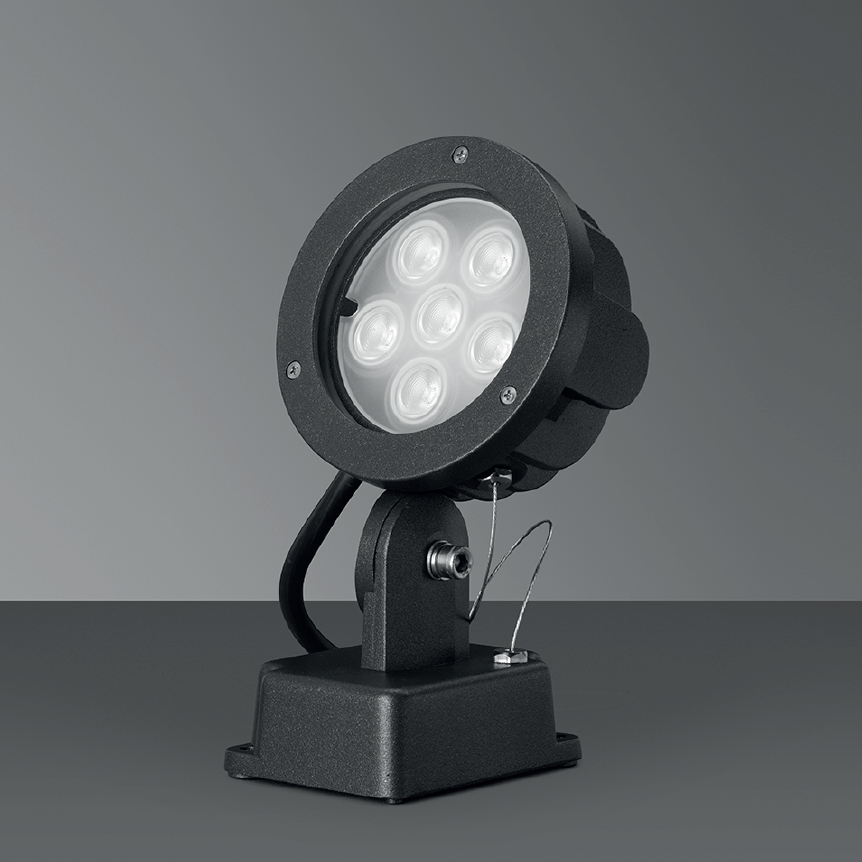

    331321
    • Product Name
      BELKIS 3 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      18W LED
    • Color
      -
    • Lens
      10°, 25°, 40°
    • Lumen
      -
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331331
    • Product Name
      BELKIS 3 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      18W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1350 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331332
    • Product Name
      BELKIS 3 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      18W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1350 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    331333
    • Product Name
      BELKIS 3 - LED SPOT LED DRIVER IN BASE
    • Power - Current
      18W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1620 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
