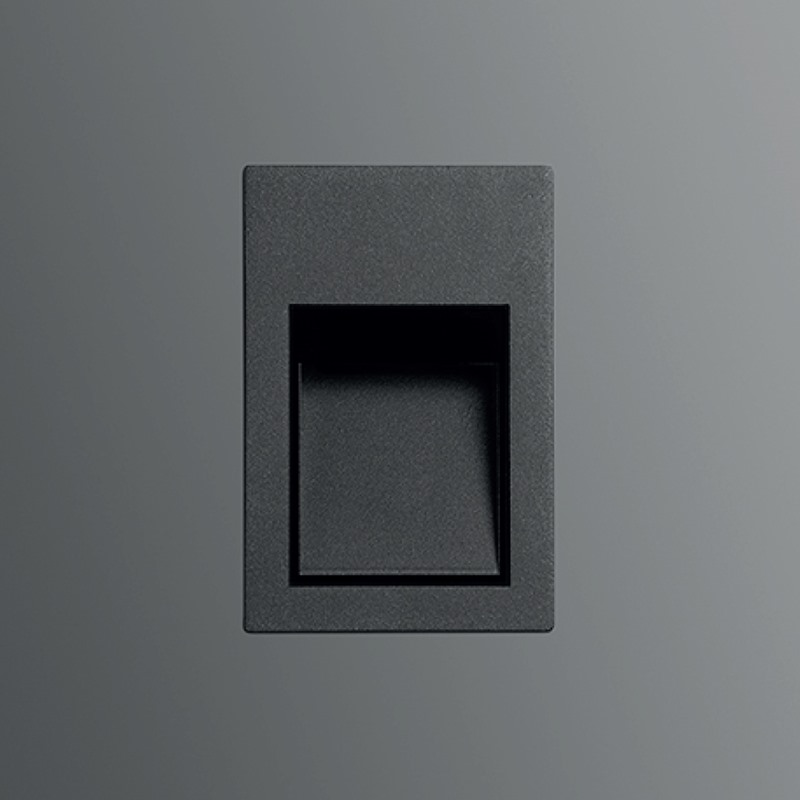

Ani 1-2-3-4 Asym (II)

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    4 mm Tempered Glass
  • Screws
    316L Stainless Steel
  • Glands
    PG 11
  • Cover
    316L Stainless steel
Customization” is EMFA’s standard

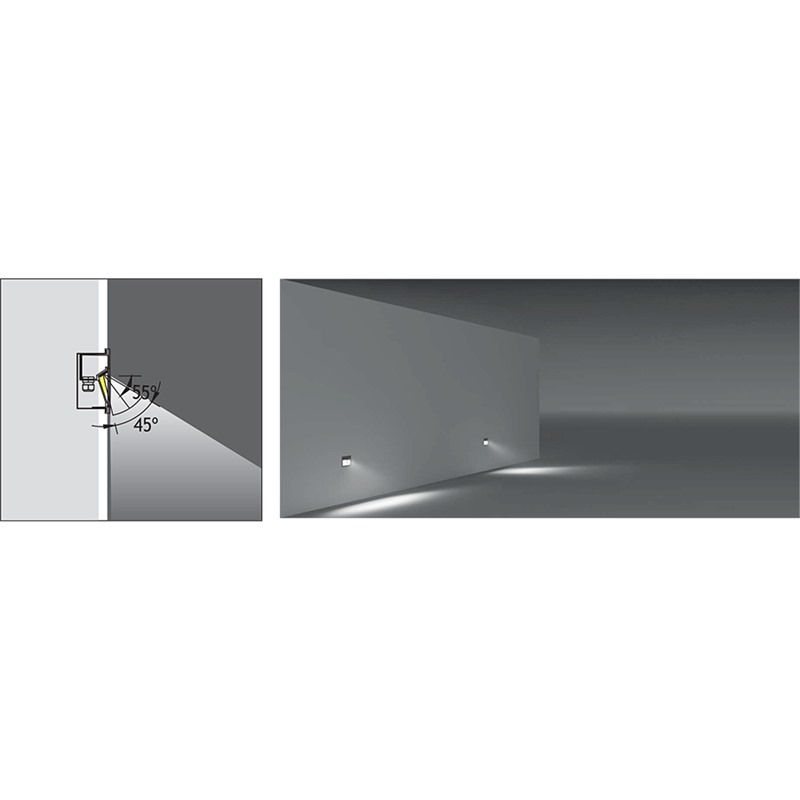

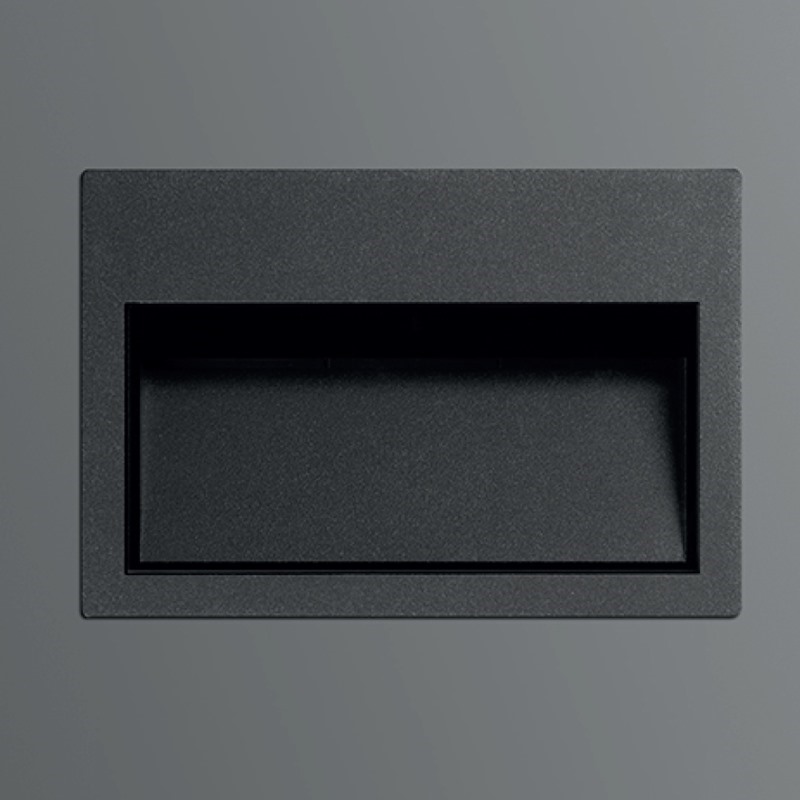

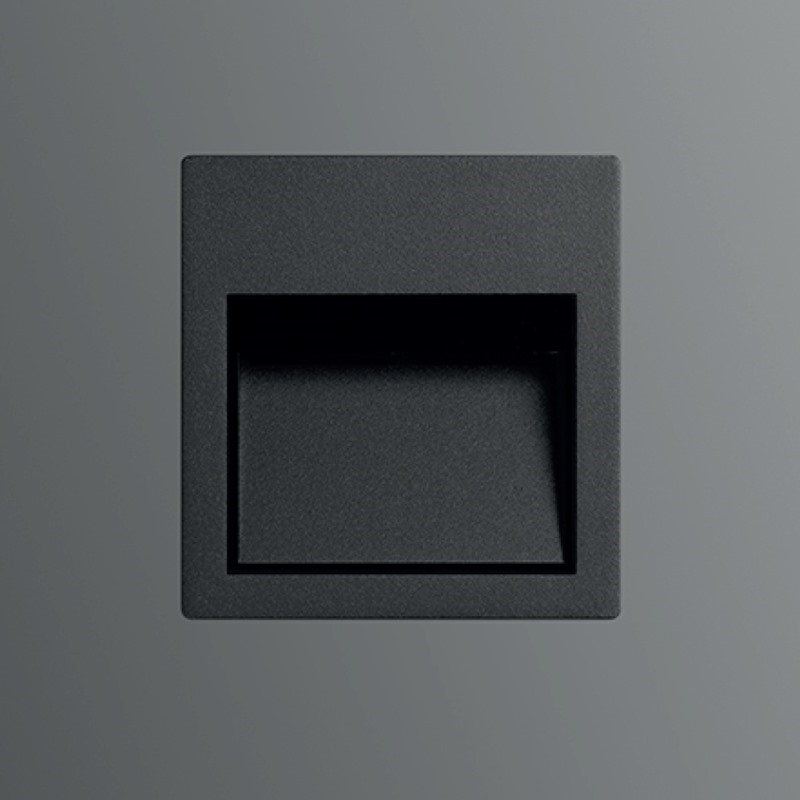

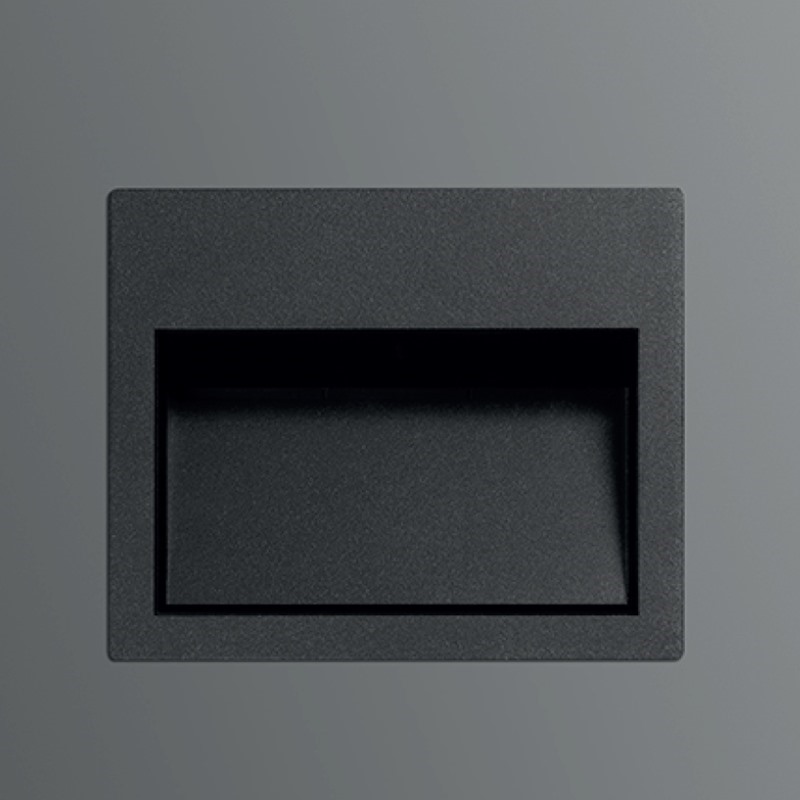

EMFA’s Ani wall recessed series is specially designed to deliver low-glare lighting to facades, walkways, pathways and driveways with minimal installation depth and narrow trim. The fixture is made of a combination of 316L stainless steel and die cast aluminium. The tilted design reduces the glare of the LED’s The Linear LEDs with special lenseS gives excellent wallwashing effect. An anti-slip glass is available upon request.

PRODUCT LIST & DOWNLOAD

  • Compare

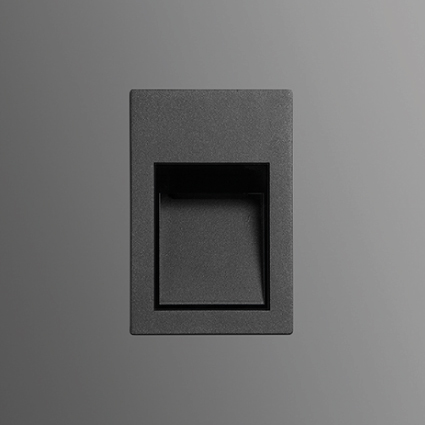

    455501
    • Product Name
      ANI 1
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      6W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      600 lm
    • Nominal Lumen Output
      850 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455502
    • Product Name
      ANI 1
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      6W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      690 lm
    • Nominal Lumen Output
      977 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455511
    • Product Name
      ANI 1
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      12W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      1020 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455512
    • Product Name
      ANI 1
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      12W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      1173 lm
    • Nominal Lumen Output
      1679 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455601
    • Product Name
      ANI 2
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      12W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      1020 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455602
    • Product Name
      ANI 2
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      12W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      1173 lm
    • Nominal Lumen Output
      1679 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455611
    • Product Name
      ANI 2
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      24W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455612
    • Product Name
      ANI 2
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      24W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455701
    • Product Name
      ANI 3
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      18W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      1200 lm
    • Nominal Lumen Output
      1700 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455702
    • Product Name
      ANI 3
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      18W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      1380 lm
    • Nominal Lumen Output
      1955 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare

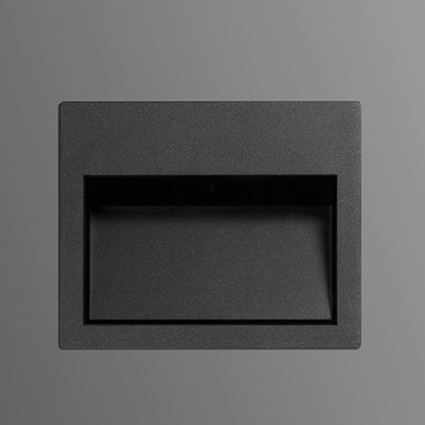

    455711
    • Product Name
      ANI 3
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      36W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      2300 lm
    • Nominal Lumen Output
      3300 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455712
    • Product Name
      ANI 3
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      36W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      2645 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455801
    • Product Name
      ANI 4
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      24W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455802
    • Product Name
      ANI 4
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      24W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455811
    • Product Name
      ANI 4
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      48W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    455812
    • Product Name
      ANI 4
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      %64
    • Power - Current
      48W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC)
    • Tilt
      Asymetrical
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP55
    • LED
      Linear LEDs
