MIRA

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    12 mm Tempered Glass
  • Screws
    316L Stainless steel
  • Cover
    316L Stainless steel
  • Recessing Box
    Stainless steel

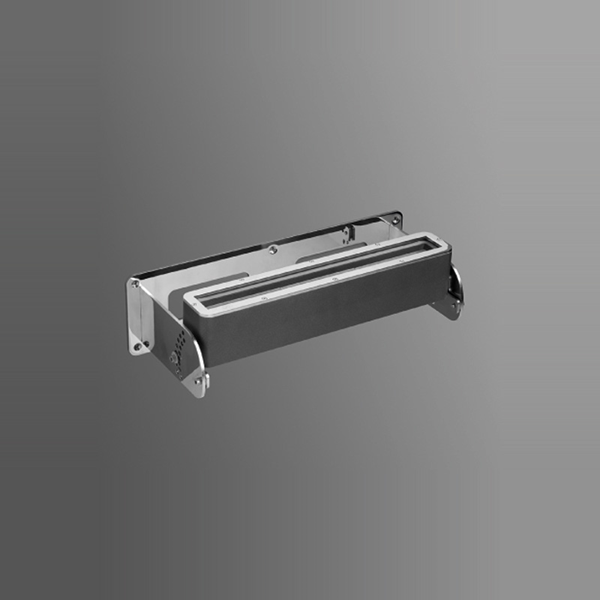

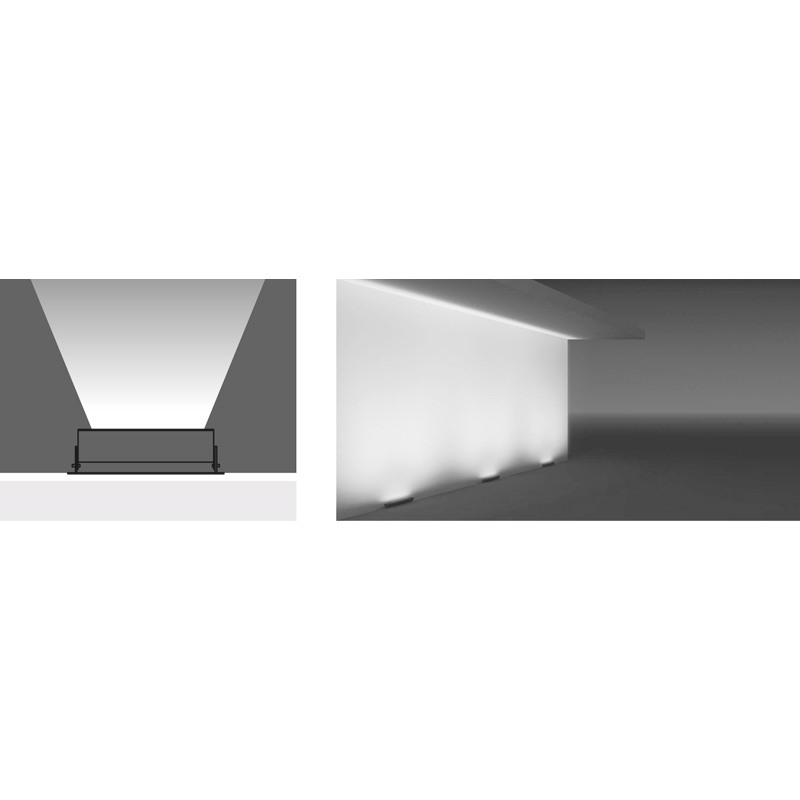

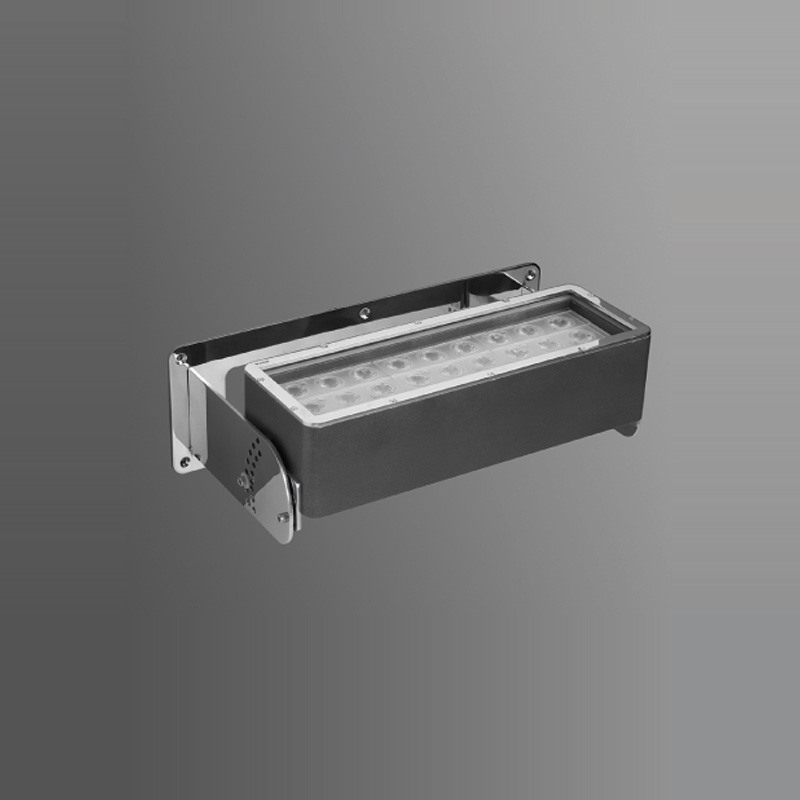

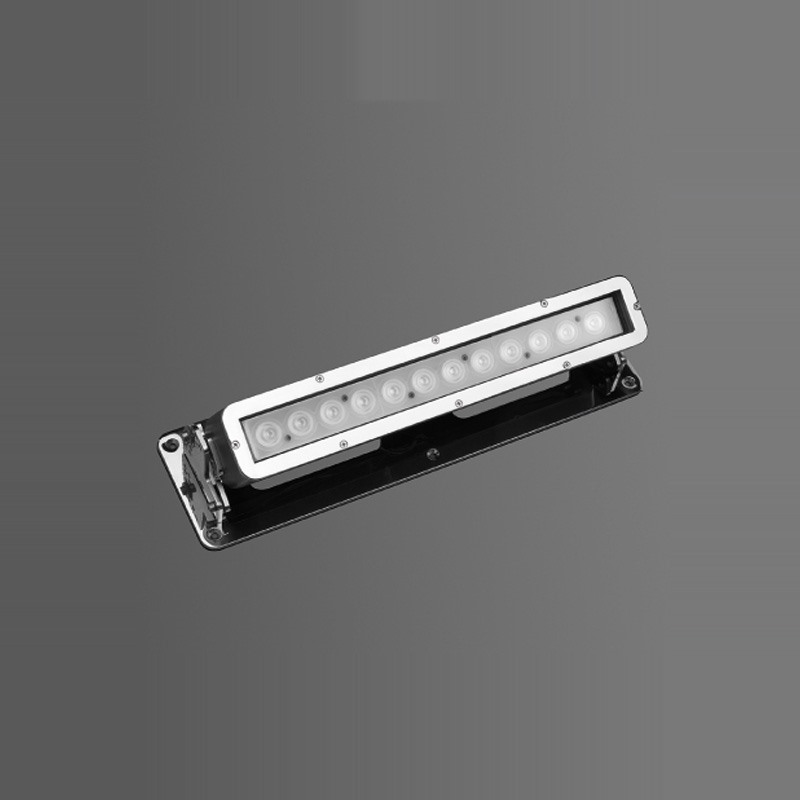

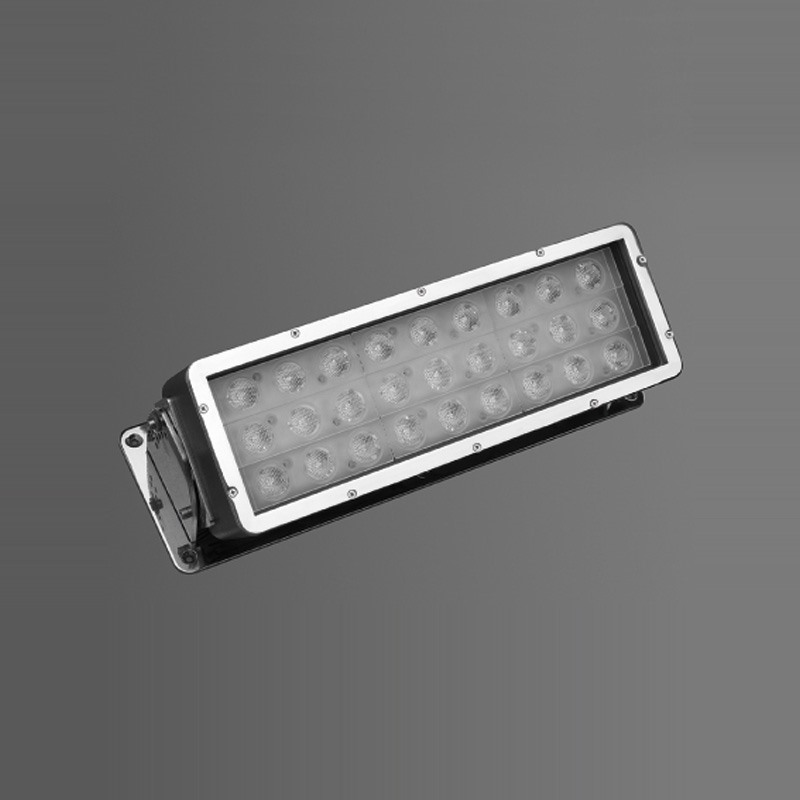

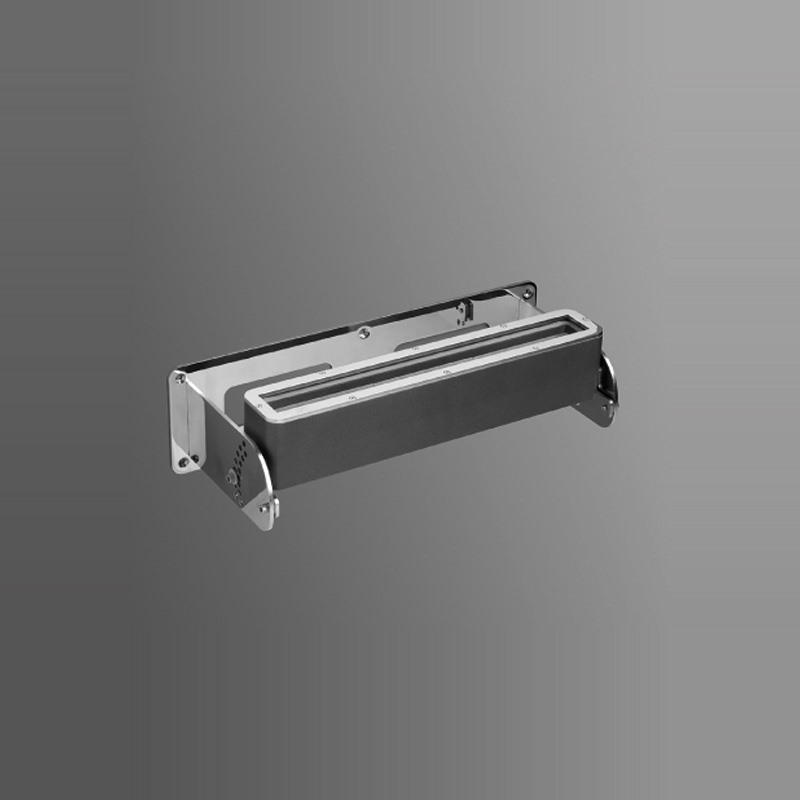

The Mira series consists of a range of LED, fluorescent and metal halide sources to deliver the desired light effect to facades, columns, bridges, monuments, and signs. The series is made of a die cast aluminium body with electrostatic powder paint finished with a 316L stainless steel cover. The recessed versions are for drive over up to 20 kN including a stainless steel recessing box. The surface mounted versions come with a heavy-duty 316L stainless steel bracket. The fixtures come with integrated electronic ballasts and a specially developed potted power cable to effectively bond with the cast resin and stop any water ingress. The LEDs used come in 3 different tones of white, as well as blue, red, green, amber and RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired the light effect.

PRODUCT LIST & DOWNLOAD

  • Compare
    430201
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1020 lm
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430206
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1020 lm
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430207
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1224 lm
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430231
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Reflector
      Symmetrical
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1224 lm
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Ballast
      Electronic
    • Lampholder
      W 4,3 x 8,5 d
  • Compare
    430241
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      27 x 350 mA (27 W) RGB LED
    • Color
      RGB
    • Lens
      10°, 25°, 40°
    • Lumen
      -
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430301
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1020 lm
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430306
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1020 lm
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430307
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1224 lm
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430331
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Reflector
      Symmetrical
    • Power - Current
      12 x 350 mA (12 W) LED
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated driver
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
    • Ballast
      Electronic
    • Lampholder
      W 4,3 x 8,5 d
  • Compare
    430341
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Reflector
      Symmetrical
    • Power - Current
      27 x 350 mA (27 W) RGB LED
    • Color
      RGB
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430801
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      27 x 350 mA (27 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Lumen
      3060 lm
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430806
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Lumen
      3060 lm
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430807
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Lumen
      3672 LM
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430821
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      81 x 350 mA (81 W) RGB LED
    • Color
      RGB
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Lumen
      -
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430841
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Reflector
      Asymmetrical
    • Power - Current
      Metal Halide 70W (not included)
    • Color
      RGB
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated ballast
    • Lumen
      -
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
    • Ballast
      Electronic
    • Lampholder
      G 8,5
  • Compare
    430901
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      3060 LM
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430906
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      3060 LM
    • Lens
      10°, 25°, 40°
    • Lumen
      4500 K
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430907
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      36 x 350 mA (36 W) LED
    • Color
      3672 LM
    • Lens
      10°, 25°, 40°
    • Lumen
      6000 K
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430921
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Power - Current
      81 x 350 mA (81 W) RGB LED
    • Color
      RGB
    • Lens
      10°, 25°, 40°
    • Lumen
      -
    • Voltage
      240V AC with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    430941
    • Body
      Mira Surface Mounted Fixtures
    • Diffusers
      Clear Glass 12 mm (Frosted Glass on request)
    • Reflector
      Asymmetrical
    • Power - Current
      Metal Halide 70W (not included)
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated ballast
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
    • Ballast
      Electronic
    • Lampholder
      G 8,5
