TRİATHLON 5

  • Technical Specifications
  • Body
    Die cast aluminium
  • Diffusers
    High efficiency frosted acrylic diffuser with 90º beam angle
  • Paint
    Electrostatic powder paint RAL 9016 (available in other RAL colors)
  • Gear
    Non-Dimmable electronic LED driver (1-10V Dimmable and DALI drivers available on request)
  • Cable
    0.5m exiting from top of fixture
  • Springs

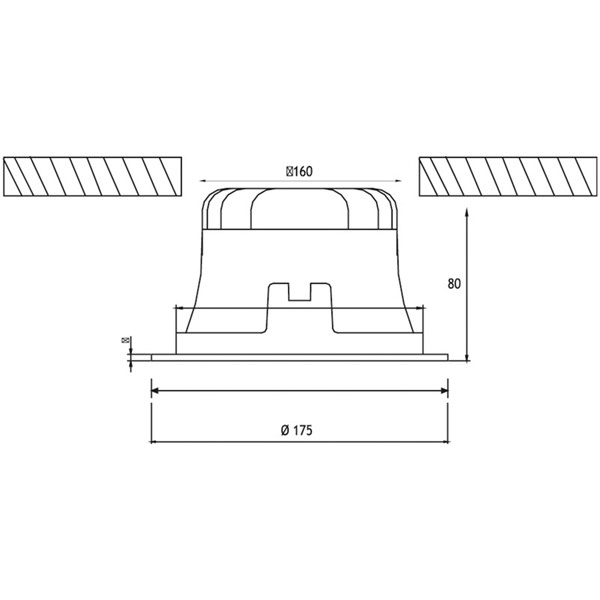

    Steel for mounting in ceilings of 1-25mm thickness

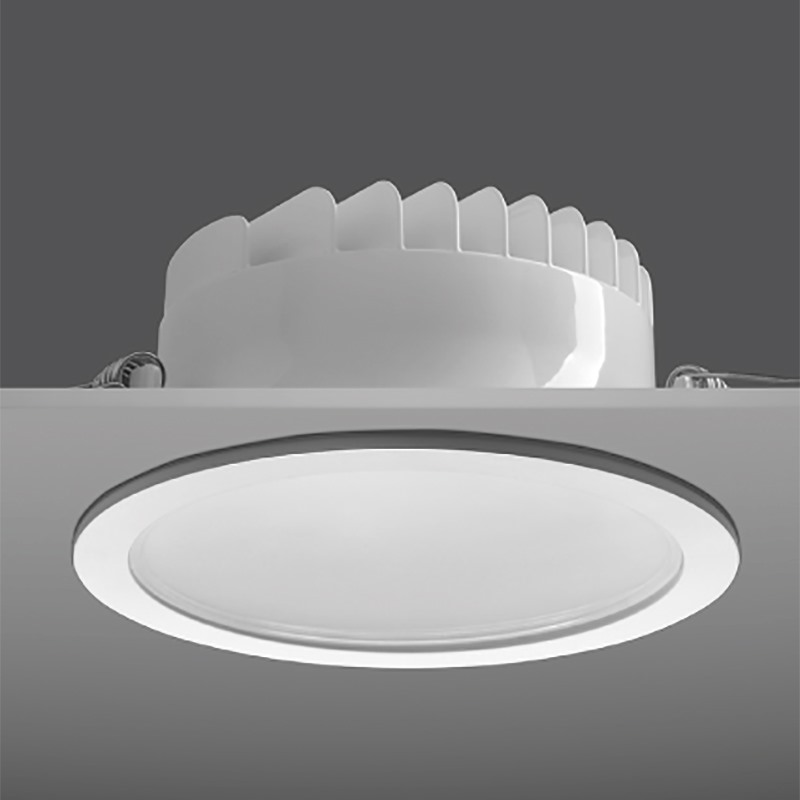

The Triathlon LED Downlight is specially designed to provide highest energy efficiency in general lighting applications. Using latest LED technology in combination with special plastic moulding and paint application allows for around 90lm/W lighting output. The highly efficient diffuser provides a completely homogenous light output. The simple installation method allows for easy installation into ceilings from 1-25mm thickness. One can choose from three compact sizes, 120mm, 150mm, and 175mm to achieve the desired lighting level.

PRODUCT LIST & DOWNLOAD

  • Compare
    268501
    • Product Name
      TRIATHLON 5
    • Reflector
      90°
    • Power - Current
      16W - 350 mA
    • Color
      2700 K
    • Lumen
      1900 lm
    • IP
      IP55
    • LED
      60 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    268502
    • Product Name
      TRIATHLON 5
    • Reflector
      90°
    • Power - Current
      16W - 350 mA
    • Color
      3000 K
    • Lumen
      1900 lm
    • IP
      IP55
    • LED
      60 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    268511
    • Product Name
      TRIATHLON 5
    • Reflector
      90°
    • Power - Current
      24W - 500 mA
    • Color
      2700 K
    • Lumen
      2400 lm
    • IP
      IP55
    • LED
      60 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    268512
    • Product Name
      TRIATHLON 5
    • Reflector
      90°
    • Power - Current
      24W - 500 mA
    • Color
      3000 K
    • Lumen
      2400 lm
    • IP
      IP55
    • LED
      60 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    268521
    • Product Name
      TRIATHLON 5
    • Reflector
      90°
    • Power - Current
      31W - 700 mA
    • Color
      2700 K
    • Lumen
      2850 lm
    • IP
      IP55
    • LED
      60 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    268522
    • Product Name
      TRIATHLON 5
    • Reflector
      90°
    • Power - Current
      31W - 700 mA
    • Color
      3000 K
    • Lumen
      2850 lm
    • IP
      IP55
    • LED
      60 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    268531
    • Product Name
      TRIATHLON 5
    • Reflector
      90°
    • Power - Current
      40W - 1050 mA Nichia LED
    • Color
      2700 K
    • Lumen
      4000 lm
    • IP
      IP55
    • LED
      60 x Osram SMD LEDs ; over 110 lm/W
  • Compare
    268532
    • Product Name
      TRIATHLON 5
    • Reflector
      90°
    • Power - Current
      40W - 1050 mA Nichia LED
    • Color
      3000 K
    • Lumen
      4000 lm
    • IP
      IP55
    • LED
      60 x Osram SMD LEDs ; over 110 lm/W
