SANTOS 5

  • Technical Specifications
  • Body
    Die cast aluminium or aluminium profile with die cast aluminium bottom and connection box
  • Gaskets
    Silicone
  • Diffusers
    8 mm Tempered Glass
  • Screws
    316L Stainless steel
  • Glands
    2 x PG 13.5
  • Cover
    316L Stainless steel
  • Recessing Tube
    Polyamide 6
"Customization” is EMFA’s standard"

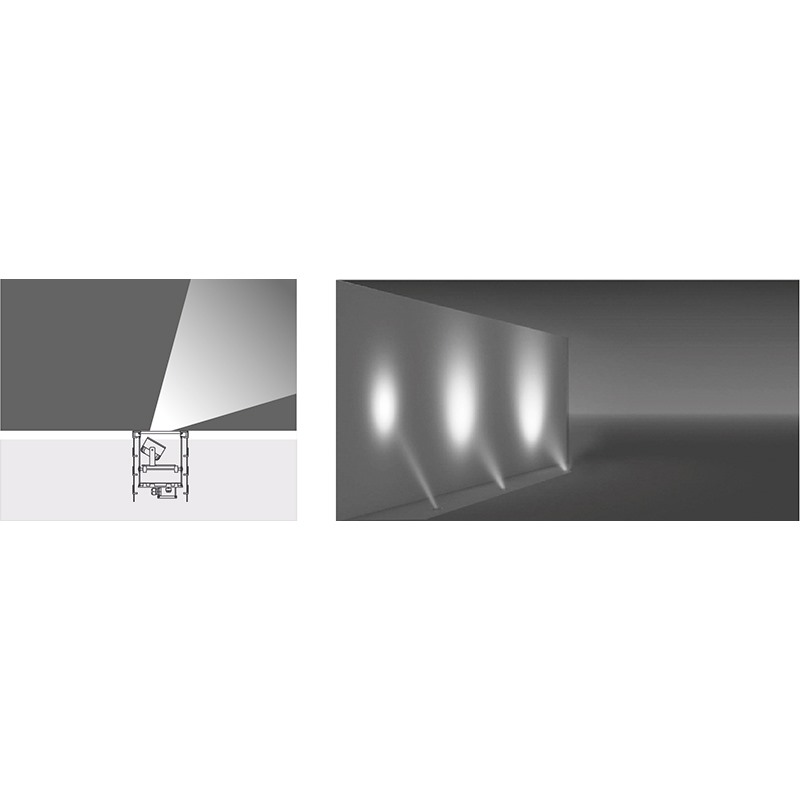

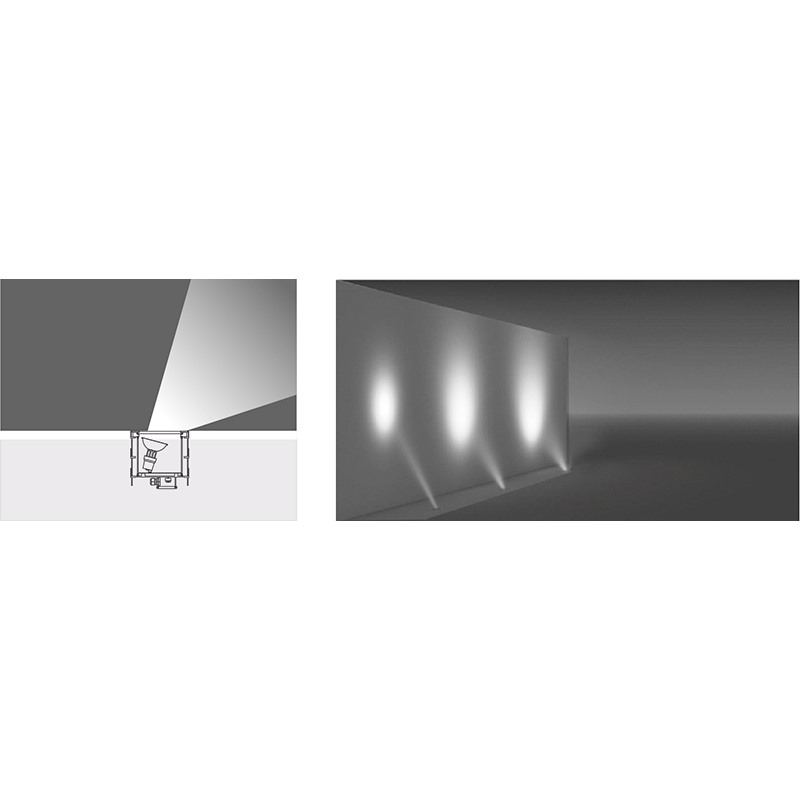

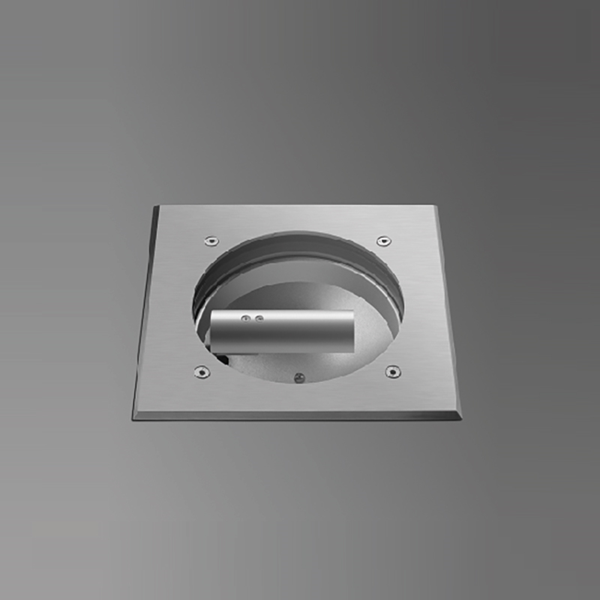

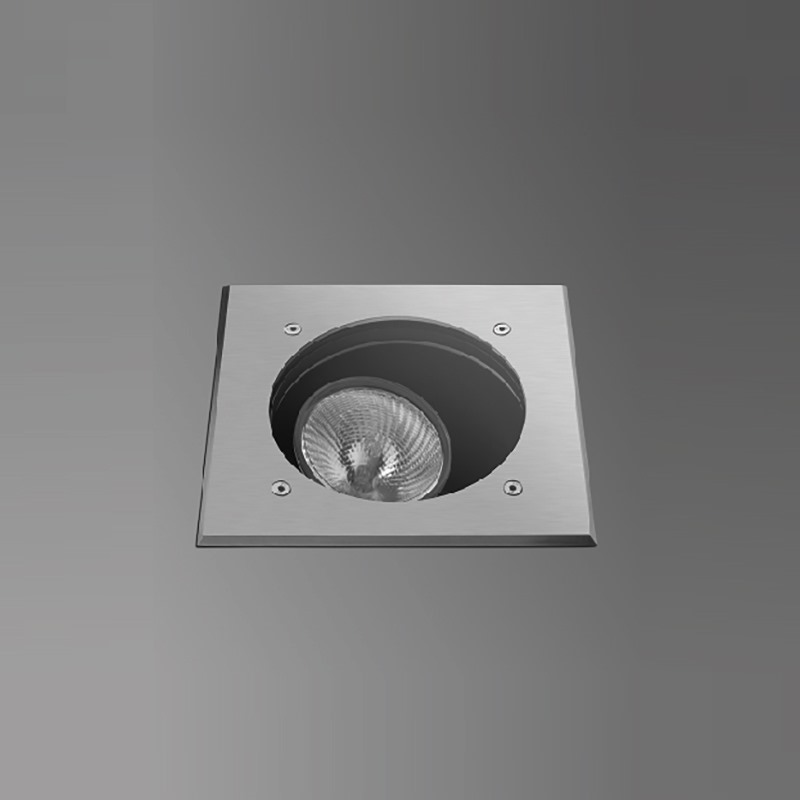

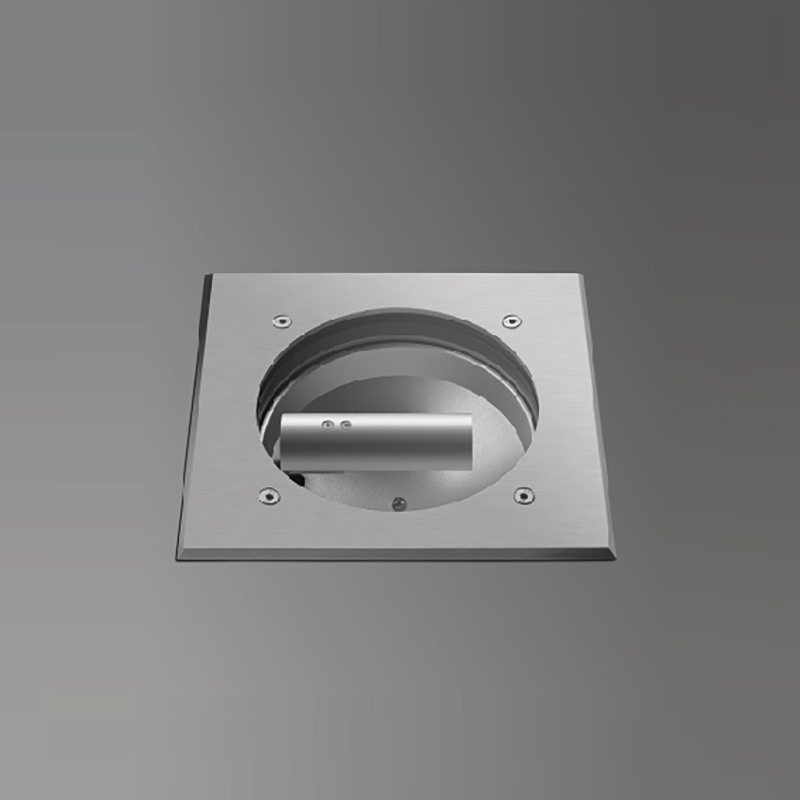

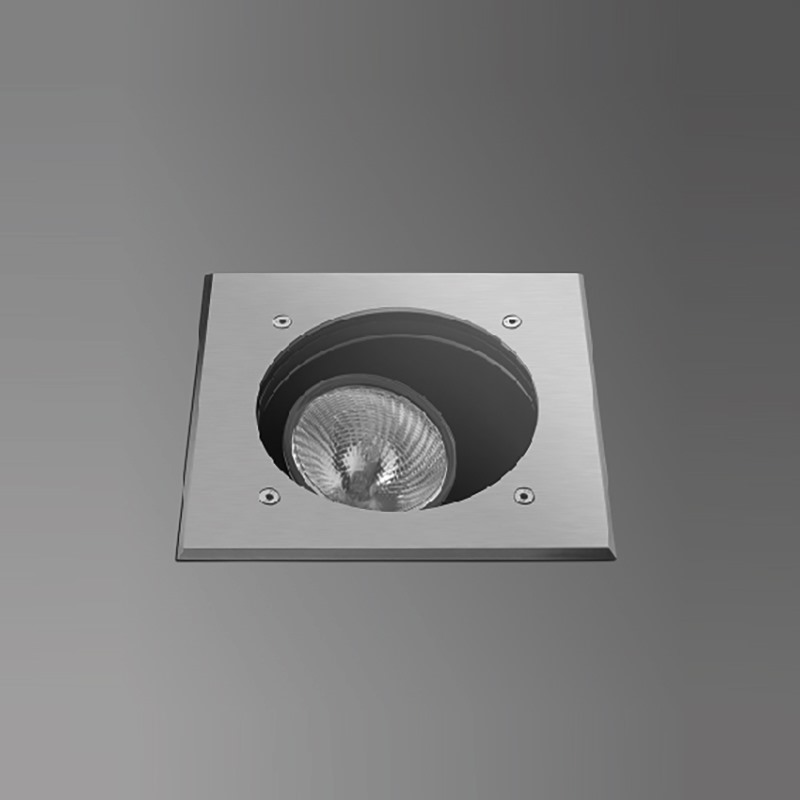

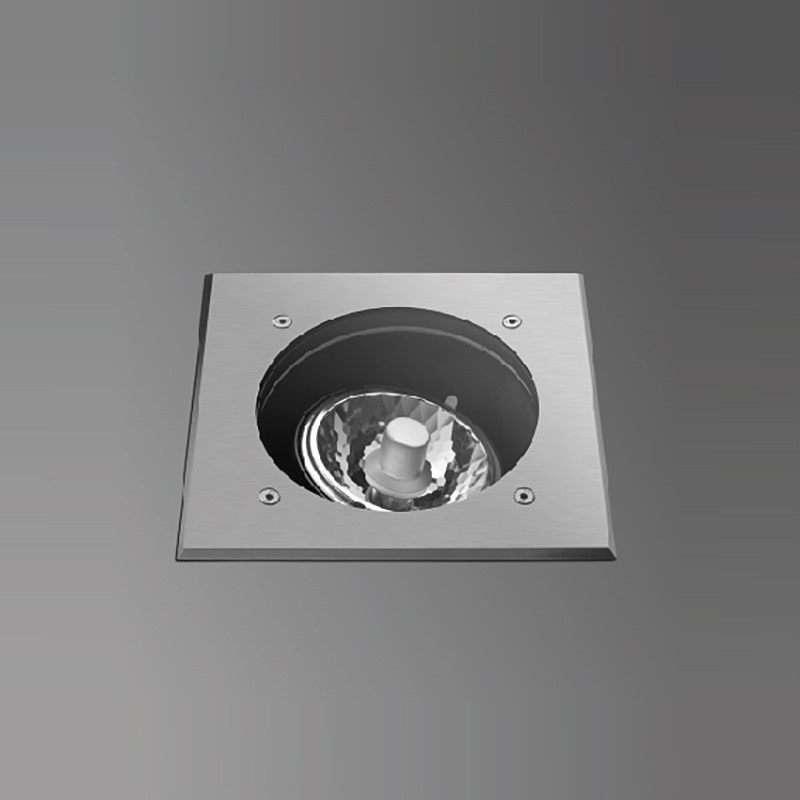

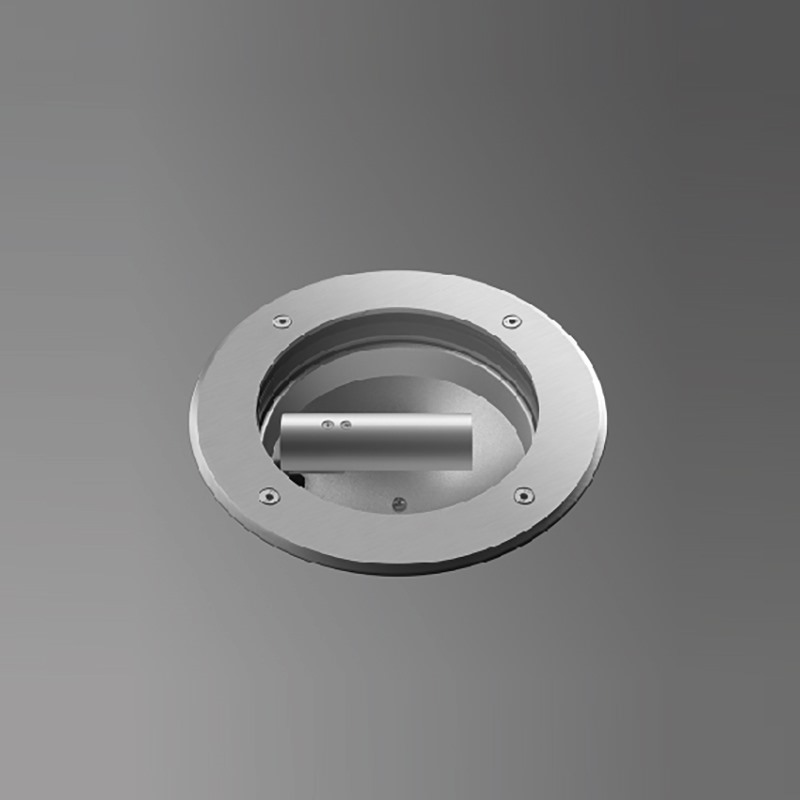

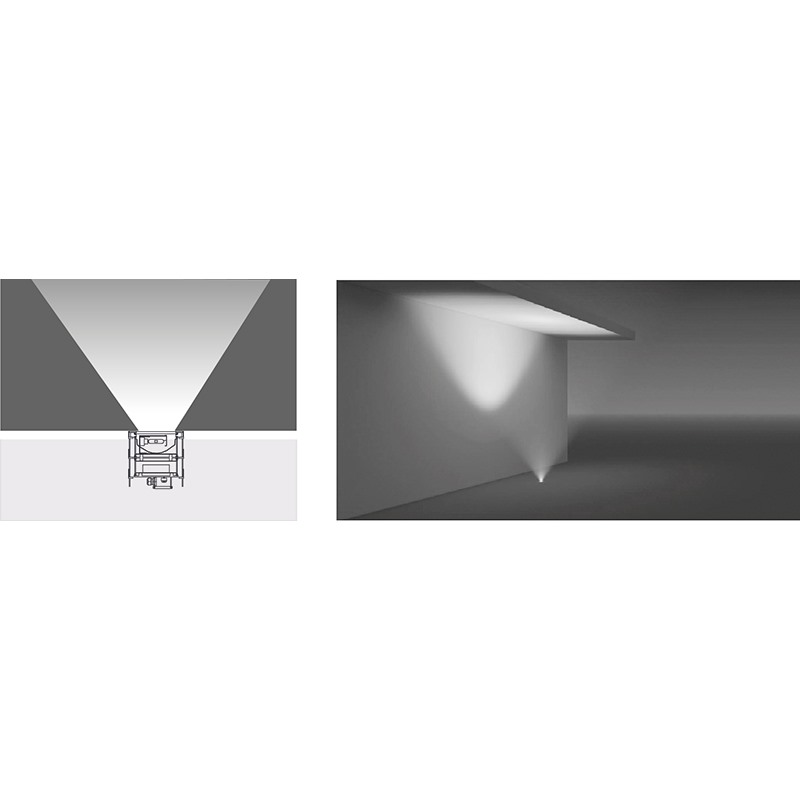

EMFA’s Santos flush mounted series is specially designed to deliver low-glare lighting to facades, columns, monuments and trees with minimal installation depth and narrow trim. The fixture is made of a combination of 316L stainless steel and die cast aluminium. A shield above the lamp reduces the glare of the metal halide lamps. A mirror finish reflector allows for a narrow to wide beam light output. An anti-slip glass is available upon request.

PRODUCT LIST & DOWNLOAD

  • Compare
    551101
    • Product Name
      SANTOS 5 (HALOGEN PAR 30 75W)
    • Reflector
      -
    • Temp
      129°C
    • Lamp
      HALOGEN PAR 30 75W
    • Lampholder
      E27 Adjustable ± 20°
  • Compare
    551111
    • Product Name
      SANTOS 5 (METAL HALIDE 20W)
    • Reflector
      12°, 36°
    • Temp
      62°C, 100°C
    • Lamp
      METAL HALIDE 20W
    • Lampholder
      G 8.5 fixed
  • Compare
    551121
    • Product Name
      SANTOS 5 (METAL HALIDE 35W)
    • Reflector
      12°, 36°
    • Temp
      62°C, 100°C
    • Lamp
      METAL HALIDE 35W
    • Lampholder
      G 8.5 fixed
  • Compare
    551131
    • Product Name
      SANTOS 5 (METAL HALIDE 70W)
    • Reflector
      12°, 36°
    • Temp
      66°C
    • Lamp
      METAL HALIDE 70W
    • Lampholder
      G 8.5 fixed
  • Compare
    551141
    • Product Name
      SANTOS 5 (HALOGEN RJ 111 50W)
    • Reflector
      -
    • Temp
      130°C
    • Lamp
      HALOGEN PAR 30 75W
    • Lampholder
      G_53 Adjustable ± 30°
  • Compare
    551151
    • Product Name
      SANTOS 5 (METAL HALIDE CDMR 111 35W)
    • Reflector
      -
    • Temp
      100°C, 166°C
    • Lamp
      METAL HALIDE CDMR 111 35W
    • Lampholder
      Gx8.5 Adjustable ± 30°
  • Compare
    551161
    • Product Name
      SANTOS 5 (METAL HALIDE CDMR 111 70W)
    • Reflector
      -
    • Temp
      100°C, 166°C
    • Lamp
      METAL HALIDE CDMR 111 70W
    • Lampholder
      Gx8.5 Adjustable ± 30°
  • Compare
    551201
    • Product Name
      SANTOS 5 (HALOGEN PAR 30 75W)
    • Reflector
      -
    • Temp
      129°C
    • Lamp
      HALOGEN PAR 30 75W
    • Lampholder
      E27 Adjustable ± 20°
  • Compare
    551211
    • Product Name
      SANTOS 5 (METAL HALIDE 20W)
    • Reflector
      12°, 36°
    • Temp
      62°C, 100°C
    • Lamp
      METAL HALIDE 20W
    • Lampholder
      G 8.5 fixed
  • Compare
    551221
    • Product Name
      SANTOS 5 (METAL HALIDE 35W)
    • Reflector
      12°, 36°
    • Temp
      62°C, 100°C
    • Lamp
      METAL HALIDE 35W
    • Lampholder
      G 8.5 fixed
  • Compare
    551231
    • Product Name
      SANTOS 5 (METAL HALIDE 70W)
    • Reflector
      12°, 36°
    • Temp
      62°C, 100°C
    • Lamp
      METAL HALIDE 70W
    • Lampholder
      G 8.5 fixed
  • Compare
    551241
    • Product Name
      SANTOS 5 (HALOGEN RJ 111 50W)
    • Reflector
      -
    • Temp
      130°C
    • Lamp
      HALOGEN RJ 111 50W
    • Lampholder
      G_53 Adjustable ± 30°
  • Compare
    551251
    • Product Name
      SANTOS 4 (METAL HALIDE CDMR 35W)
    • Reflector
      -
    • Temp
      100°C, 166°C
    • Lamp
      METAL HALIDE CDMR 35W
    • Lampholder
      Gx8.5 Adjustable ± 30°
  • Compare
    551261
    • Product Name
      SANTOS 5 (METAL HALIDE CDMR 111 70W)
    • Reflector
      -
    • Temp
      100°C, 166°C
    • Lamp
      METAL HALIDE CDMR 111 70W
    • Lampholder
      Gx8.5 Adjustable ± 30°
  • Compare
    551301
    • Product Name
      SANTOS 5 (18W COB LED - 500 mA)
    • Reflector
      10°, 23°, 38° Aluminium-Coated Polycarbonate Reflector
    • Temp
      42°C
    • Gear
      240V Non-Dimmable Driver (1-10V Dimmable Driver & DALI Driver available on request)
    • Color
      Warm White
    • Kelvin
      3000K
    • Total Lighting Output
      1224 lm
    • LED
      COB LED - Adjustable
    • Lamp
      18W COB LED - 500 mA
  • Compare
    551302
    • Product Name
      SANTOS 5 (18W COB LED - 500 mA)
    • Reflector
      10°, 23°, 38° Aluminium-Coated Polycarbonate Reflector
    • Temp
      42°C
    • Gear
      240V Non-Dimmable Driver (1-10V Dimmable Driver & DALI Driver available on request)
    • Color
      Natural White
    • Kelvin
      4000K
    • Total Lighting Output
      1469 lm
    • LED
      COB LED - Adjustable
    • Lamp
      18W COB LED - 500 mA
  • Compare
    551311
    • Product Name
      SANTOS 5 (18W COB LED - 500 mA)
    • Reflector
      10°, 23°, 38° Aluminium-Coated Polycarbonate Reflector
    • Temp
      42°C
    • Gear
      240V Non-Dimmable Driver (1-10V Dimmable Driver & DALI Driver available on request)
    • Color
      Warm White
    • Kelvin
      3000K
    • Total Lighting Output
      768 lm
    • LED
      COB LED - Adjustable
    • Lamp
      18W COB LED - 500 mA
  • Compare
    551312
    • Product Name
      SANTOS 5 (18W COB LED - 500 mA)
    • Reflector
      10°, 23°, 38° Aluminium-Coated Polycarbonate Reflector
    • Temp
      42°C
    • Gear
      240V Non-Dimmable Driver (1-10V Dimmable Driver & DALI Driver available on request)
    • Color
      Natural White
    • Kelvin
      4000K
    • Total Lighting Output
      864 lm
    • LED
      COB LED - Adjustable
    • Lamp
      18W COB LED - 500 mA
