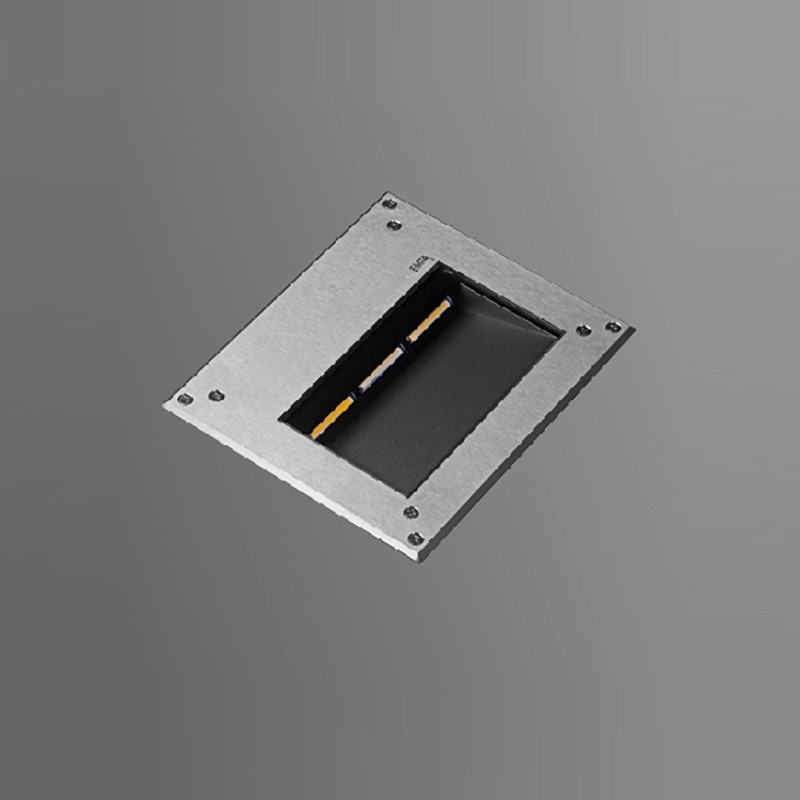

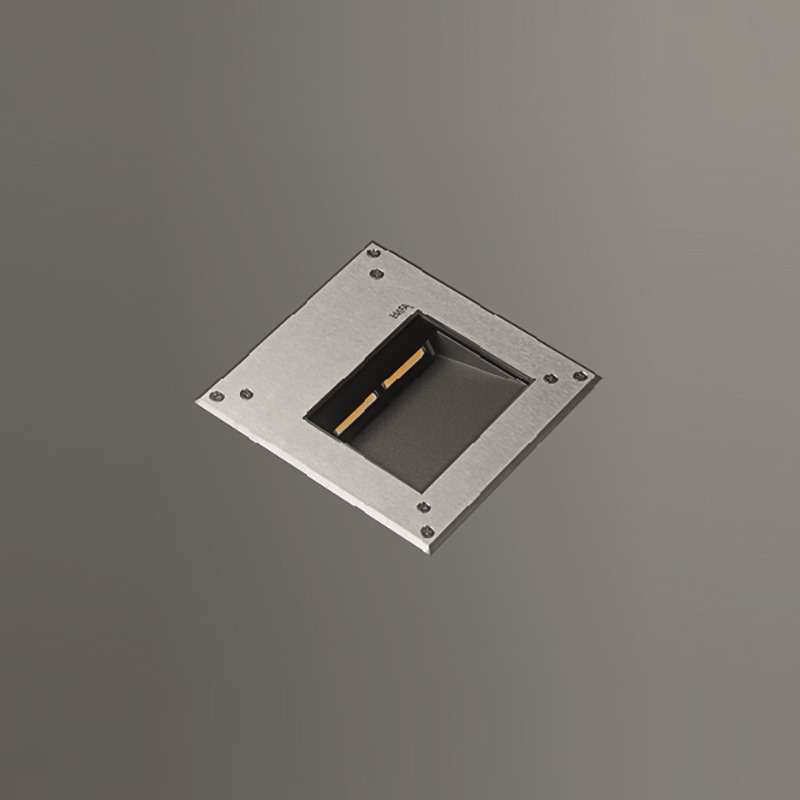

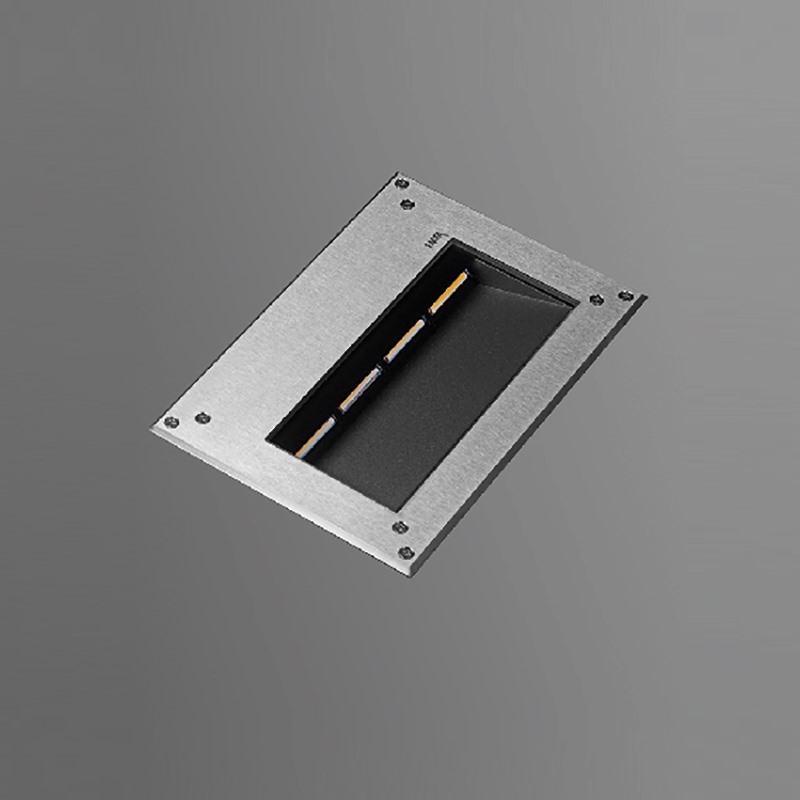

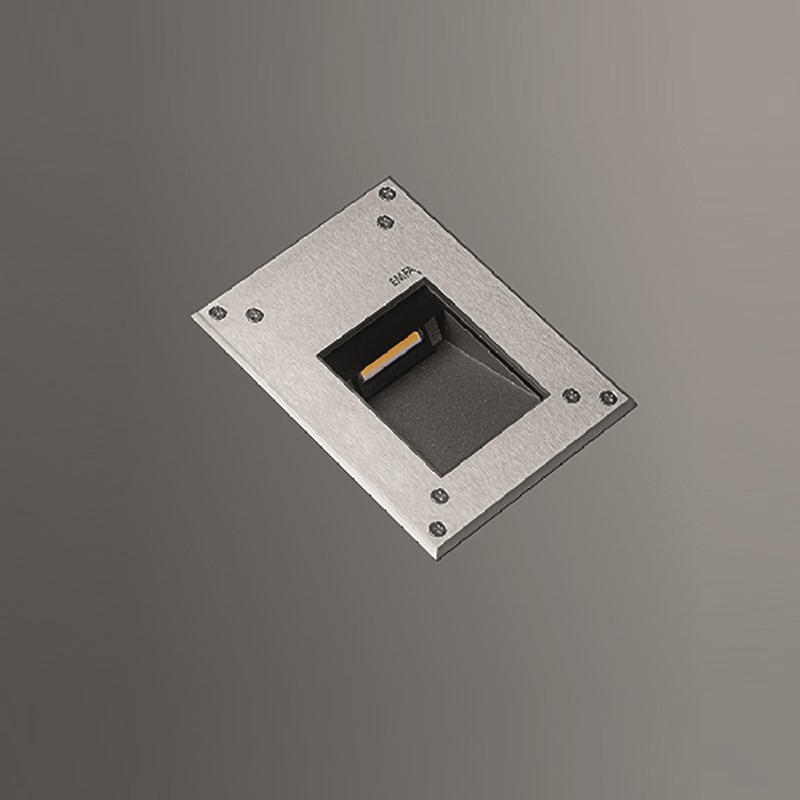

ANI 1-2-3-4 ASYM

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    8 mm Tempered Glass
  • Screws
    316L Stainless Steel
  • Cover
    316L Stainless Steel
“Customization” is EMFA’s standard

EMFA offers many combinations for each fixture, as all fixtures are made in house. A combination of 6 standard paint colors, 8 LED colors, and 2 wattages, and available to make the fixture suitable for the required application. This is done without increasing lead-time and is available for large as well as small quantities.

PRODUCT LIST & DOWNLOAD

  • Compare
    450501
    • Product Name
      ANI 1
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      6W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      600 lm
    • Nominal Lumen Output
      850 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450502
    • Product Name
      ANI 1
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      6W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      690 lm
    • Nominal Lumen Output
      977 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450511
    • Product Name
      ANI 1
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      12W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1020 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450512
    • Product Name
      ANI 1
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      12W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1173 lm
    • Nominal Lumen Output
      1679 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450601
    • Product Name
      ANI 2
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      12W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1020 lm
    • Nominal Lumen Output
      1460 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450602
    • Product Name
      ANI 2
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      12W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1173 lm
    • Nominal Lumen Output
      1679 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450611
    • Product Name
      ANI 2
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      24W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450612
    • Product Name
      ANI 2
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      24W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450701
    • Product Name
      ANI 3
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      18W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1380 lm
    • Nominal Lumen Output
      1955 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450702
    • Product Name
      ANI 3
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      18W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1380 lm
    • Nominal Lumen Output
      1955 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450711
    • Product Name
      ANI 3
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      36W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      2300 lm
    • Nominal Lumen Output
      3300 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450712
    • Product Name
      ANI 3
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      36W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      2645 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450801
    • Product Name
      ANI 4
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      24W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2250 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450802
    • Product Name
      ANI 4
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      24W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450811
    • Product Name
      ANI 4
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      48W
    • Kelvin
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    450812
    • Product Name
      ANI 4
    • Beam Angle
      45° / 60° / 90°
    • Mac Adam
      3
    • CRI
      80
    • L.O.R %
      %70
    • Power - Current
      48W
    • Kelvin
      4000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Tilt
      Asymmetrical
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP67
    • LED
      Linear LEDs
