MIRA 1

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    12 mm Tempered Glass
  • Screws
    316L Stainless steel
  • Cover
    316L Stainless steel

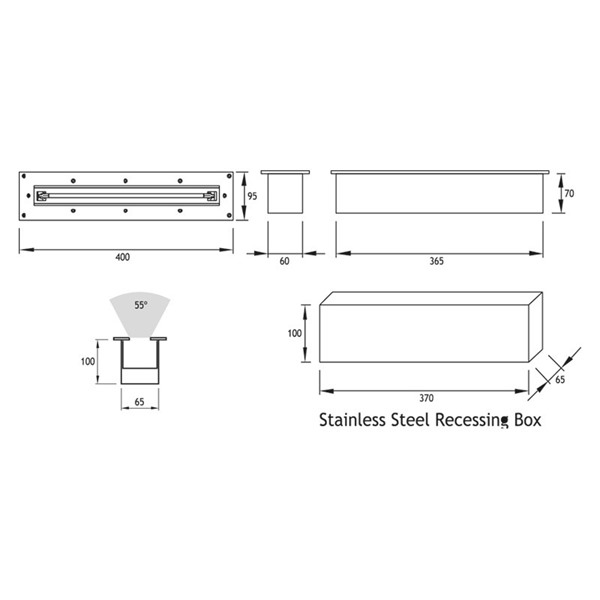

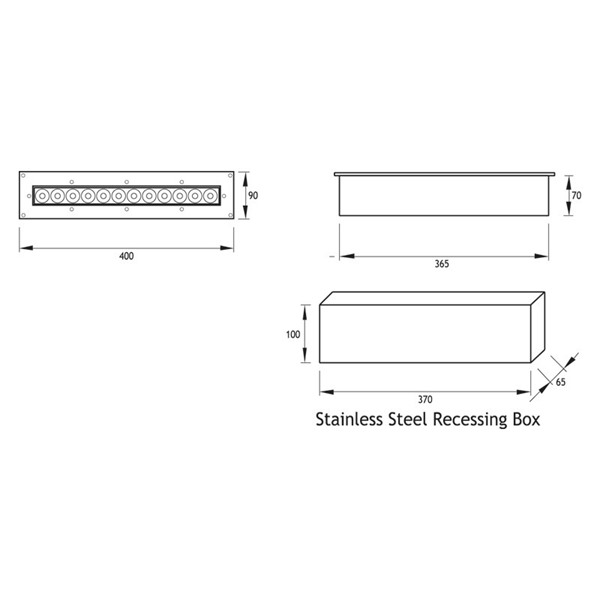

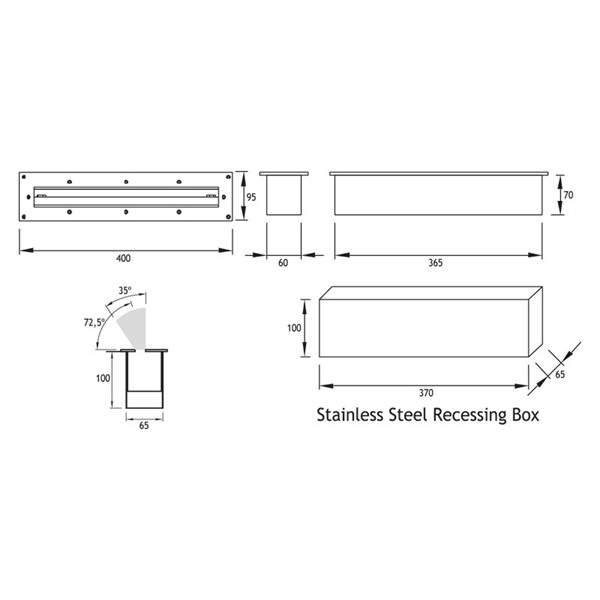

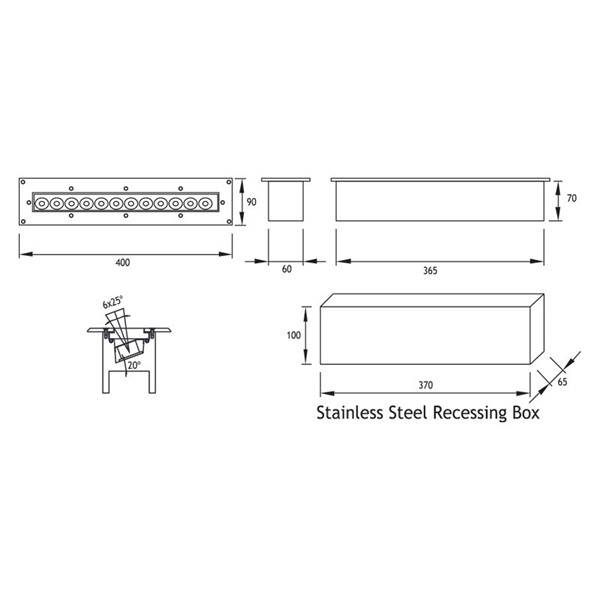

  • Recessing Tube
    Stainless steel

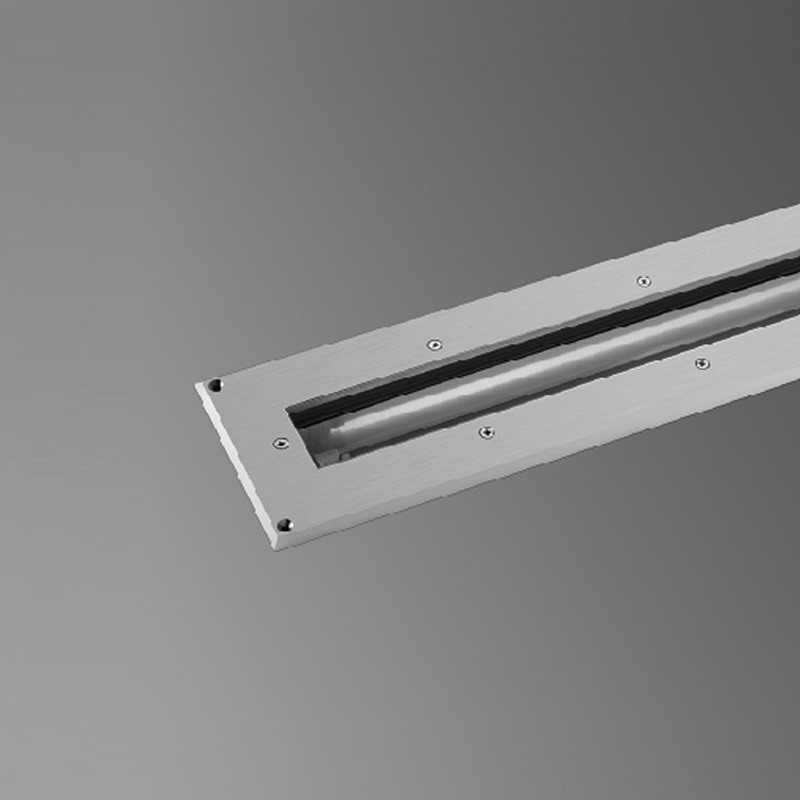

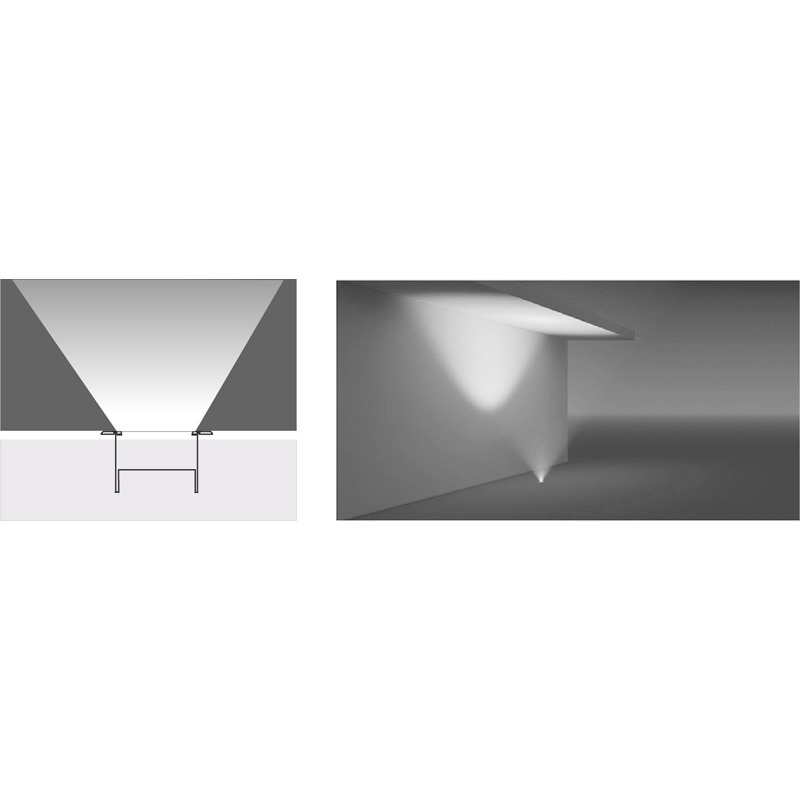

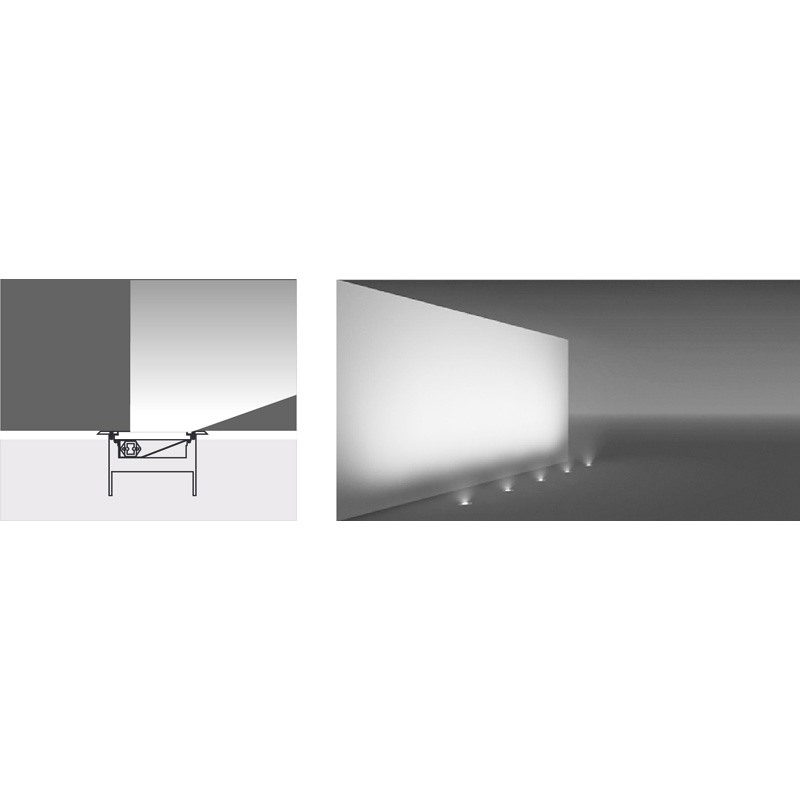

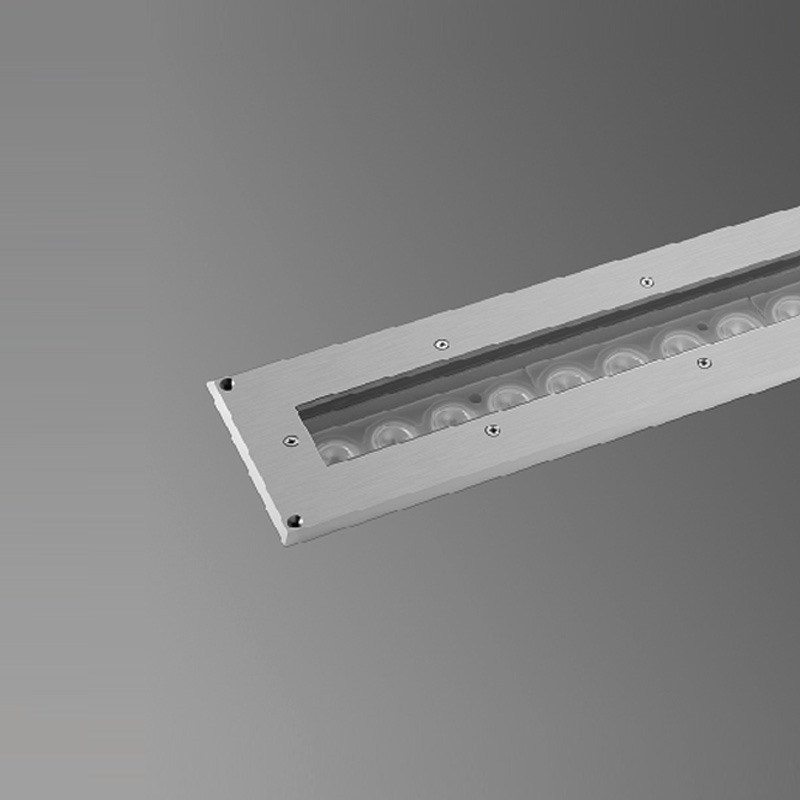

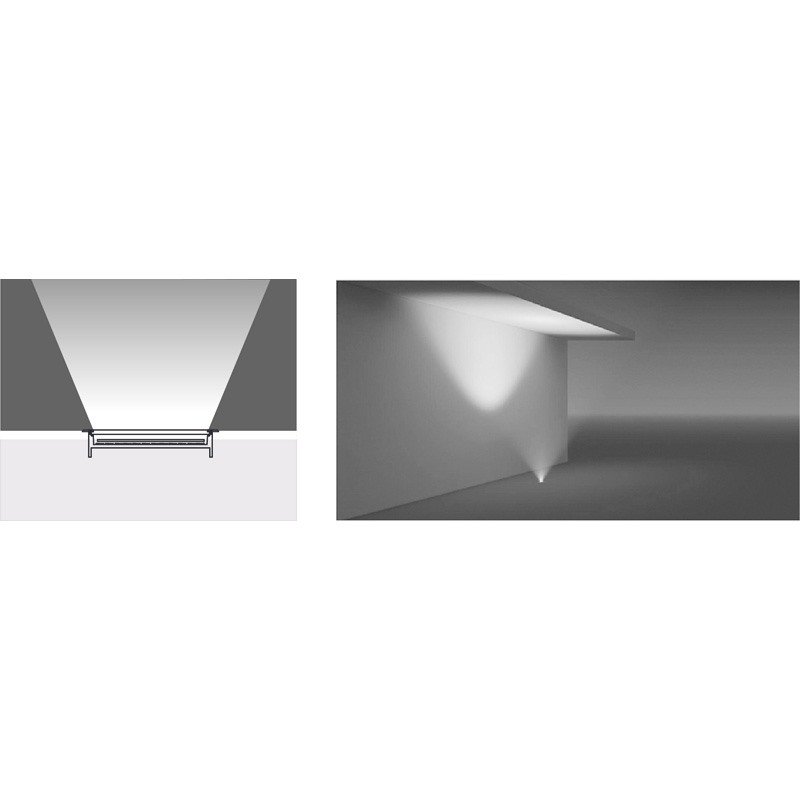

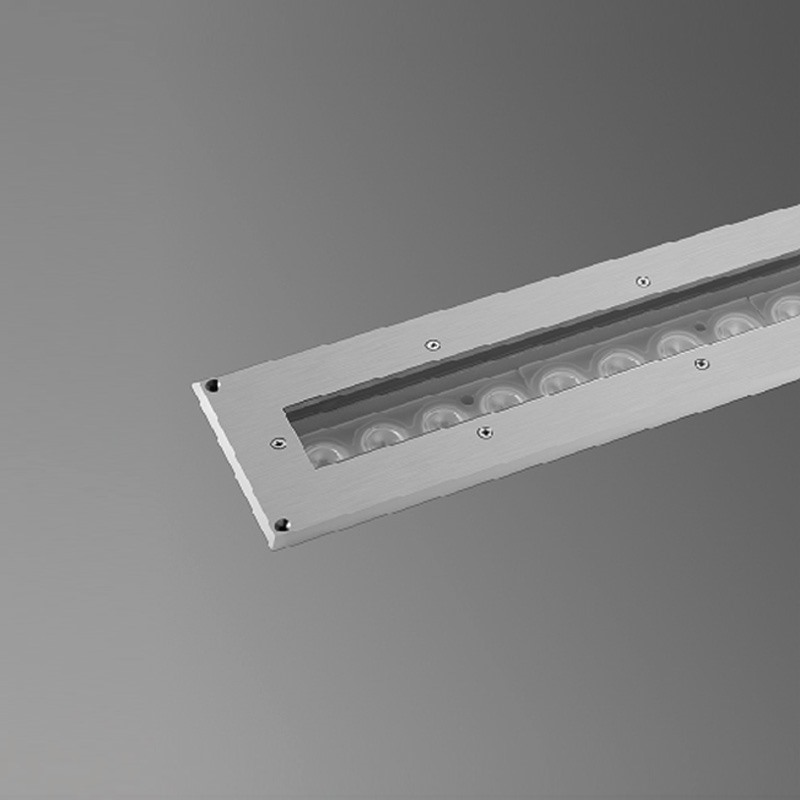

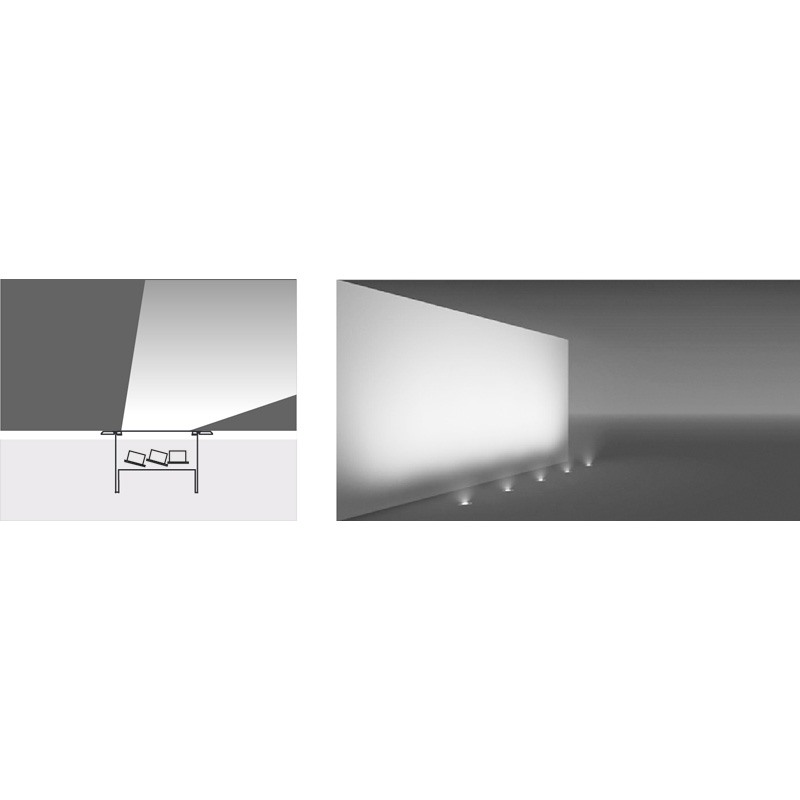

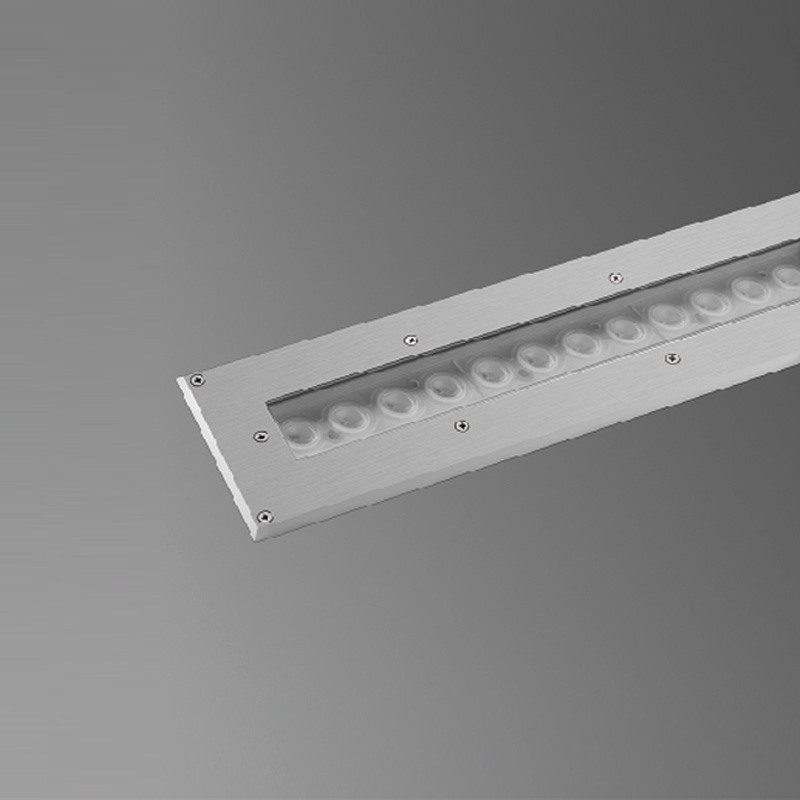

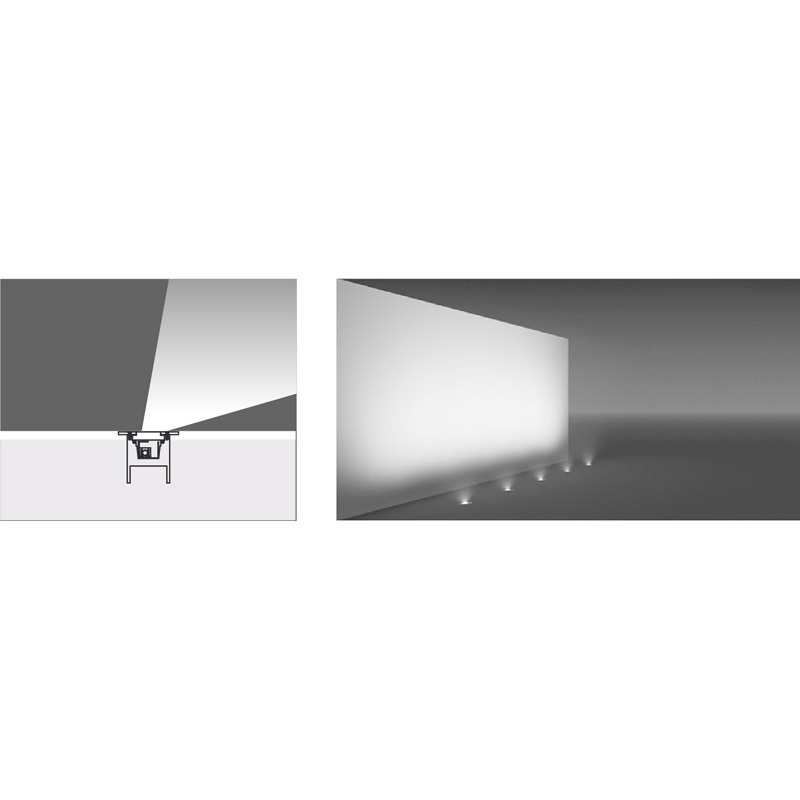

The Mira series consists of a range of LED and fluorescent sources to deliver the desired light effect to facades, columns, bridges, monuments, and signs. The series is made of a die cast aluminium body with electrostatic powder paint finished with a 316L stainless steel cover. The recessed versions are for drive over up to 20 kN including a stainless steel recessing box. The surface mounted verisons come with integrated electronic ballasts and a specially developed potted power cable to effectively bond with the cast resin and stop any water ingress. The LEDs used come in 3 different tones of white, as well as blue, red, green, amber and RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired the light effect.

PRODUCT LIST & DOWNLOAD

  • Compare
    430111
    • Product Name
      MIRA 1 SYMMETRICAL LED
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1020 lm
    • Voltage
      240V AC with integrated dirver (24V AC of DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
  • Compare
    430116
    • Product Name
      MIRA 1 SYMMETRICAL LED
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1020 lm
    • Voltage
      240V AC with integrated dirver (24V AC of DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
  • Compare
    430117
    • Product Name
      MIRA 1 SYMMETRICAL LED
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1224 lm
    • Voltage
      240V AC with integrated dirver (24V AC of DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
  • Compare
    430141
    • Product Name

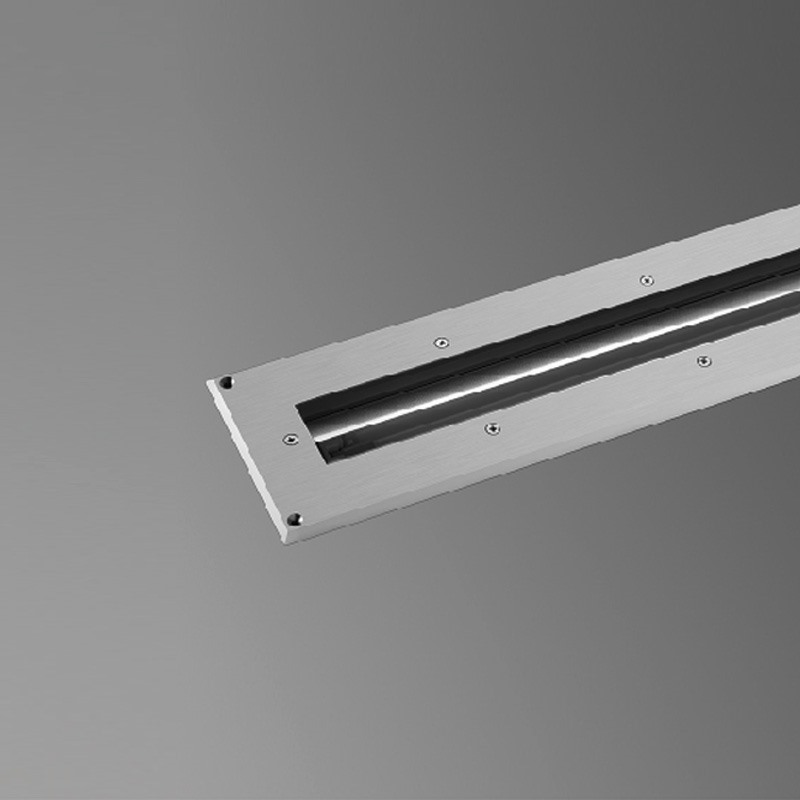

      MIRA 1 SYMMETRICAL FLUO.
    • Reflector
      Electronic
    • Power - Current
      12 x 350 mA (27 W) RGB LED
    • Color
      RGB
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated ballast
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Lampholder
      W 4,3 x 8,5 d
    • Ballast
      Symmetrical
  • Compare
    430151
    • Product Name
      MIRA 1 ASYMMETRICAL FLUO.
    • Reflector
      Electronic
    • Power - Current
      FLUO T-2 1x8W (included)
    • Color
      RGB
    • Lens
      10°, 25°, 40°
    • Voltage
      240V AC with integrated ballast
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • Lampholder
      W 4,3 x 8,5 d
    • Ballast
      Asymmetrical
  • Compare
    430161
    • Product Name
      MIRA 1 SYMMETRICAL LED
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      RGB
    • Lens
      10°, 25°, 40°
    • Lumen
      1224 lm
    • Voltage
      240V AC with integrated dirver (24V AC of DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
  • Compare
    430351
    • Product Name
      MIRA 1 ASYMMETRICAL LED
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1020 lm
    • Voltage
      240V AC with integrated dirver (24V AC of DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
  • Compare
    430352
    • Product Name
      MIRA 1 ASYMMETRICAL LED
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1020 lm
    • Voltage
      240V AC with integrated dirver (24V AC of DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
  • Compare
    430353
    • Product Name
      MIRA 1 ASYMMETRICAL LED
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1224 lm
    • Voltage
      240V AC with integrated dirver (24V AC of DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
  • Compare
    430361
    • Product Name
      MIRA 1 ASYMMETRICAL LED
    • Power - Current
      12 x 350 mA (12 W) LED
    • Color
      RGB
    • Lens
      10°, 25°, 40°
    • Lumen
      -
    • Voltage
      240V AC with integrated dirver (24V AC of DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
