BELKIS 1 LLA

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass 4 mm
  • Paint
    Electrostatic powder

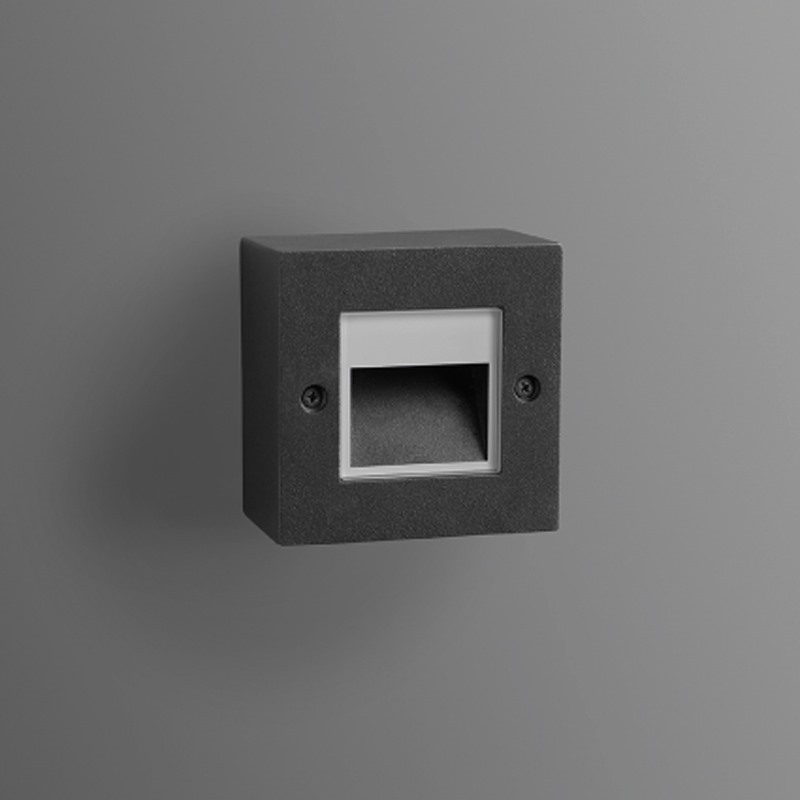

The Belkis 1 LLA is specially designed to deliver low glare LED lighting to steps, open areas, corridors and pathways where recessing the fixture is not possible. The fixture has a die cast aluminium body painted with electrostatic powder paint. The narrow depth of 39mm, which also includes the LED driver, allows the fixture to be installed in any wall. A plastic recessing box is included for installation into concrete. A specially developed potted power cable is used to effectively bond with the cast resin and stop any water ingress. The linear LED used comes in 2 different tones of white, 3000K and 4000K.

PRODUCT LIST & DOWNLOAD

  • Compare
    424141
    • Product Name
      Belkis 1 LLA
    • Color
      3000 K
    • Lumen
      92 lm
    • Voltage
      240V AC with integrated driver (12V DC or 24V DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
    • Lamp
      1 x 350 mA (4W) LED
  • Compare
    424142
    • Product Name
      Belkis 1 LLA
    • Color
      4000 K
    • Lumen
      107 lm
    • Voltage
      240V AC with integrated driver (12V DC or 24V DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP67
    • Lamp
      1 x 350 mA (4W) LED
