ATLANTIS 5 (I)

  • Technical Specifications
  • Body
    316L Stainless Steel
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Screws
    Stainless Steel
  • Mounting Brackets
    316L Stainless Steel

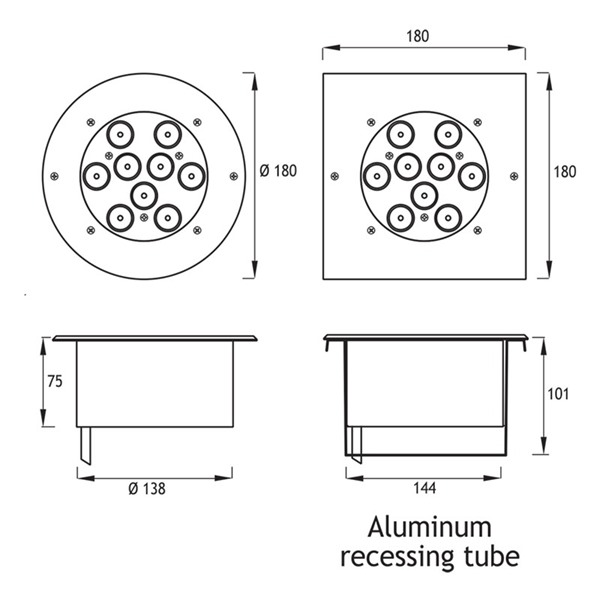

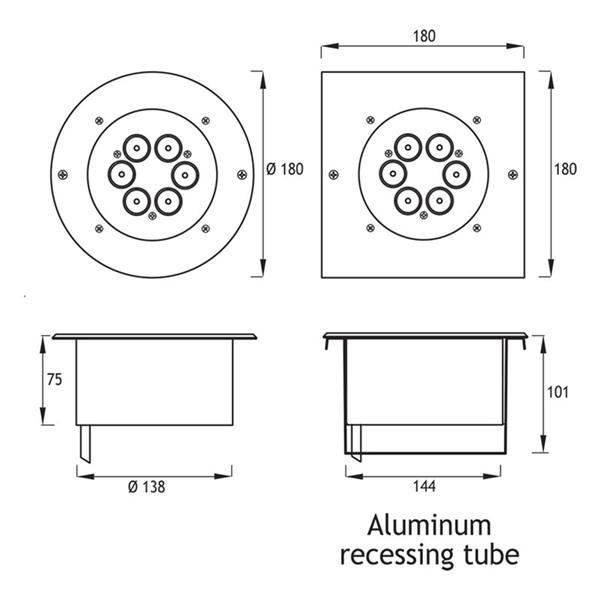

  • Recessing Tube
    Aluminium

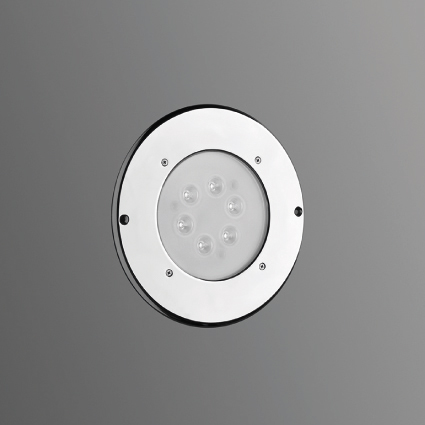

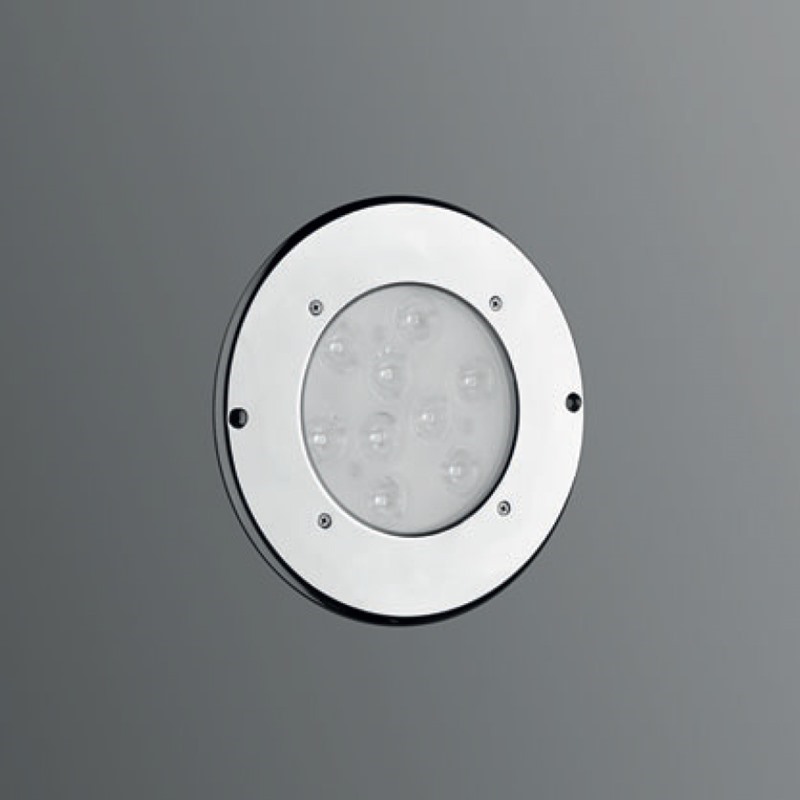

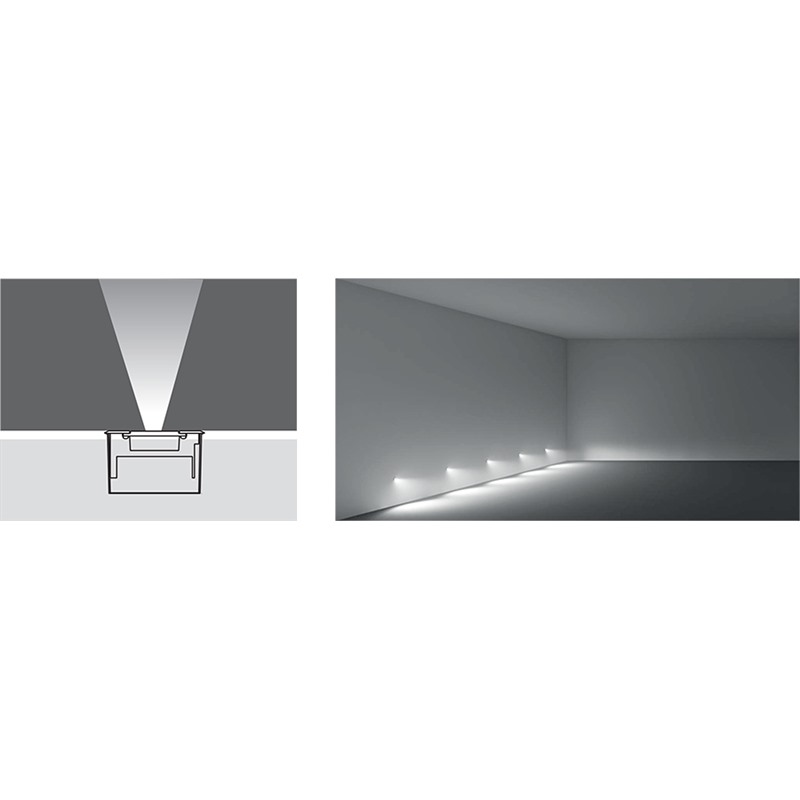

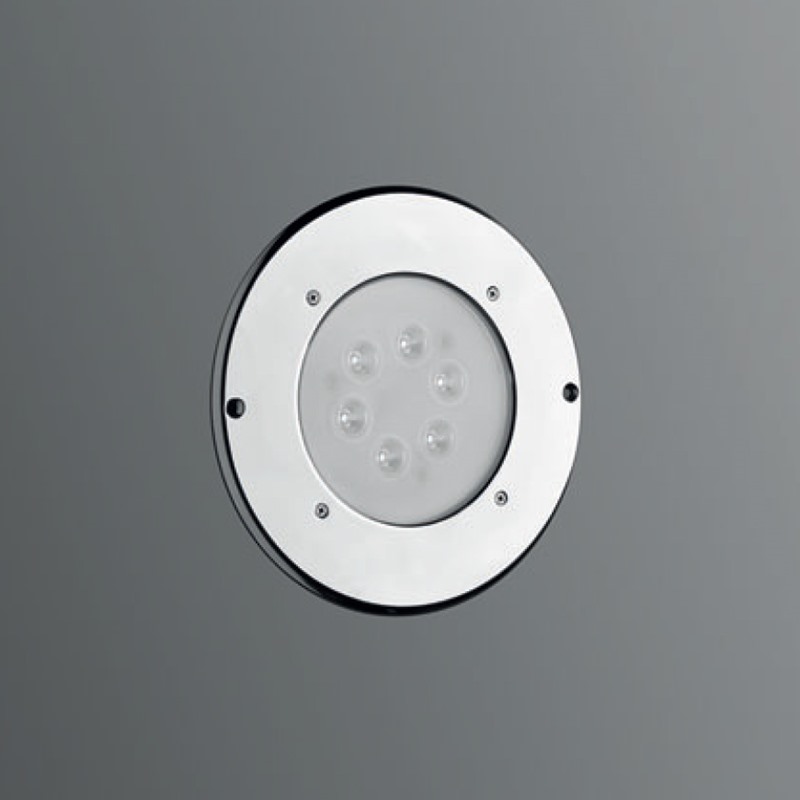

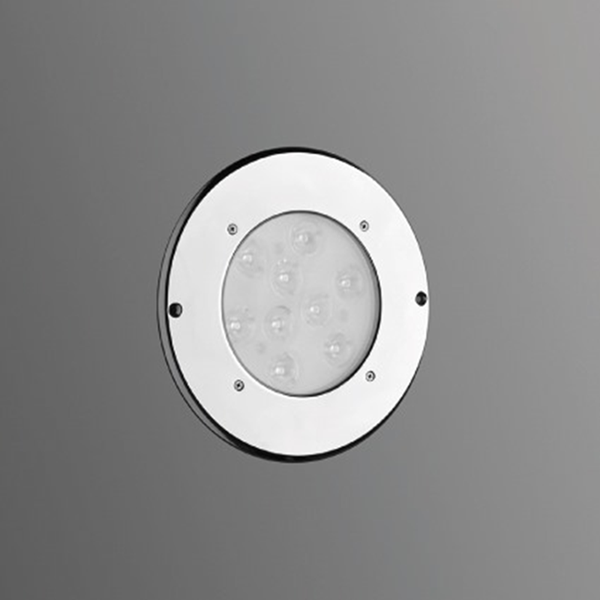

The Atlantis Near Water series is specially designed to light objects around pools, fountains, and water features or near the sea with high power LED light. The series is made of solid 316L stainless steel and can therefore withstand these rough environments. Standard finish is polished stainless steel to avoid collection of dirt and algae, but a brushed finish is also possible. The series comes as recessed, surface mount or spots. The spots are heavy duty with stainless steel brackets for sturdy fixing. A specially developed power cable ensures for a long lifetime in extreme conditions without any ingress of water. The low voltage electronic LED driver is housed in the base of the fixture. The LEDs used come in 3 different tones of white, as well as blue, red, green, amber or RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired the light effect.

PRODUCT LIST & DOWNLOAD

  • Compare
    412161
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      6W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
  • Compare
    412166
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      6W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
  • Compare
    412167
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      6W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      612 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
  • Compare
    412171
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      6W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Square
    • IP
      IP67
  • Compare
    412176
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      6W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Square
    • IP
      IP67
  • Compare
    412177
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      6W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      612 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Square
    • IP
      IP67
  • Compare
    412181
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      9W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      765 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
  • Compare
    412186
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      9W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      765 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
  • Compare
    412187
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      9W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      810 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
  • Compare
    412191
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      9W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      765 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Square
    • IP
      IP67
  • Compare
    412196
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      9W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      765 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Square
    • IP
      IP67
  • Compare
    412197
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      9W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      810 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Square
    • IP
      IP67
  • Compare
    412201
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      27W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      2100 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Square
    • IP
      IP67
  • Compare
    421891
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      18W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1350 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
  • Compare
    421892
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      18W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1350 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
  • Compare
    421893
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      18W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1620 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
  • Compare
    421901
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      18W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1350 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Square
    • IP
      IP67
  • Compare
    421902
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      18W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1350 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Square
    • IP
      IP67
  • Compare
    421903
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      18W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      1620 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Square
    • IP
      IP67
  • Compare
    421911
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      27W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      2100 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
  • Compare
    421912
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      27W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      2100 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
  • Compare
    421913
    • Product Name
      ATLANTIS 5 WITH RECESSING TUBE
    • Power - Current
      27W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      2520 lm
    • Voltage
      12V AC or DC (24V AC or DC on request)
    • Cable
      Potted 5m 2x0,75 H03 VV-F
    • Product Type
      Round
    • IP
      IP67
