ASSOS 2

  • Technical Specifications
  • Body
    Die cas aluminium or aluminium profile with die cast aluminium bottom and connection box.
  • Gaskets
    Silicone
  • Diffusers
    8 mm Tempered Glass
  • Screws
    316L Stainless Steel
  • Glands
    2 x PG 13.5
  • Cover
    Die cast aluminium
  • Recessing Tube
    Polyamide 6

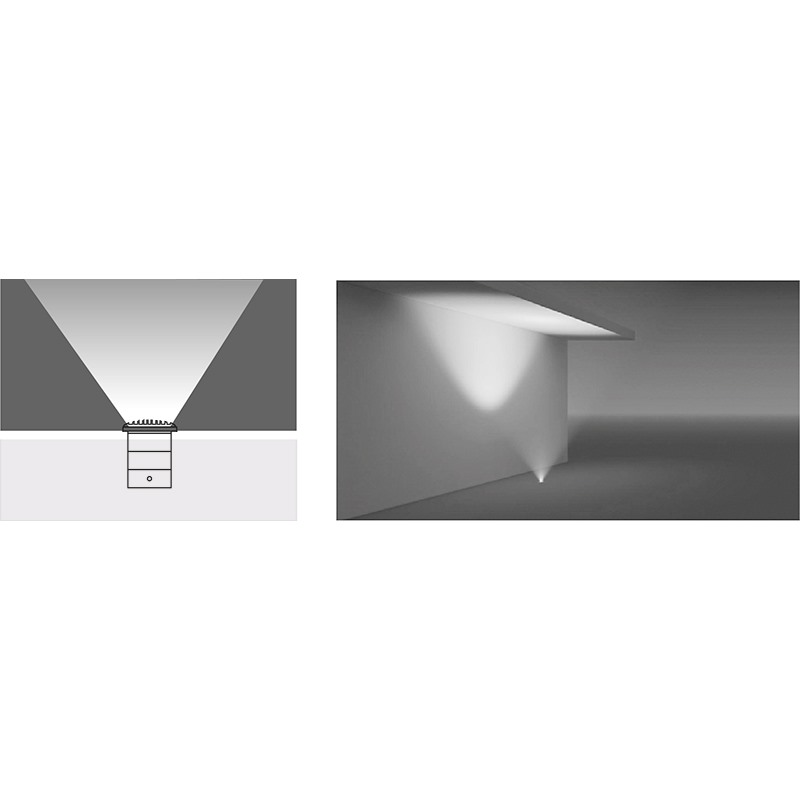

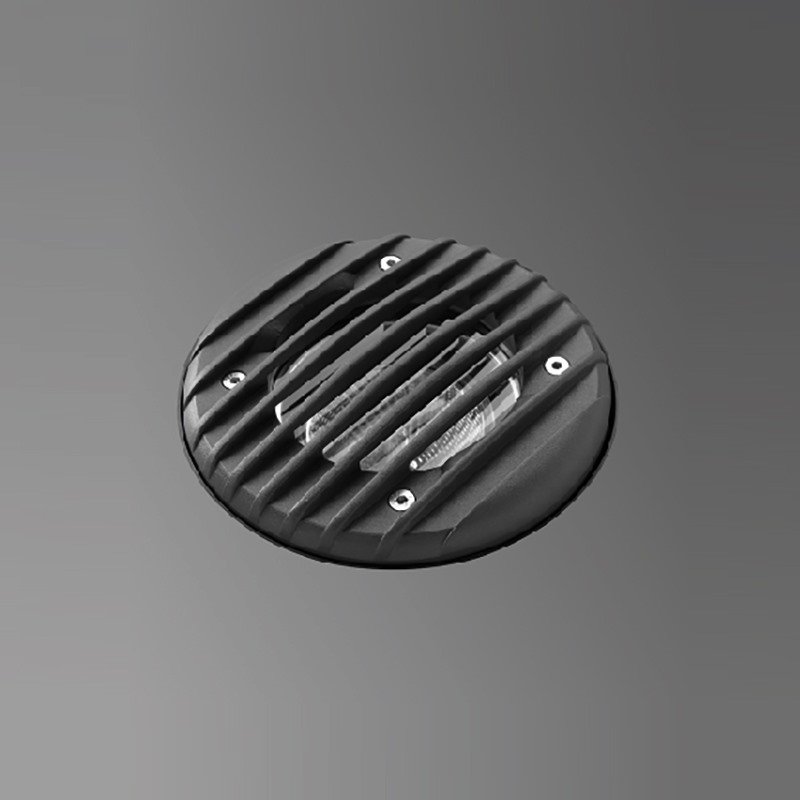

EMFA’s Assos 2 series is specially designed to light facades, columns, monuments and trees with a die cast aluminium grill protecting the glass. The fixture can be equipped with metal halide, halogen or fluorescent lamps. The fixture is made completely of die cast aluminium body, which allows for IP67 and IK10 and a load of 15kN. The fixture comes with a polyamide recessing tube for easy mounting in the ground or concrete. A louvre can be orderedseparately to reduce the glare of the lamps.

PRODUCT LIST & DOWNLOAD

  • Compare
    201131
    • Product Name
      Assos 2
    • Reflector
      -
    • Temp
      129°C
    • IP
      IP67
    • Lamp
      HALOGEN PAR 30 75W (10° or 30°)
    • Lampholder
      E27 fixed
  • Compare
    201141
    • Product Name
      Assos 2
    • Reflector
      -
    • Temp
      129°C
    • IP
      IP67
    • Lamp
      HALOGEN PAR 38 100W 30°
    • Lampholder
      E27 fixed
  • Compare
    201181
    • Product Name
      Assos 2
    • Reflector
      -
    • Temp
      35W - 67°C -- 50W - 80°C
    • IP
      IP67
    • Lamp
      HALOGEN PAR 16 35W / 50W
    • Lampholder
      Gu 5.3 Fixed or Adjustable ± 30°
  • Compare
    201241
    • Product Name
      Assos 2
    • Reflector
      30°C , 42°C
    • Temp
      35W - 99°C -- 70W - 144°C -- 150W - 238°C
    • IP
      IP67
    • Lamp
      METAL HALIDE 35W / 70W / 150W
    • Lampholder
      G 12 Fixed or Adjustable ± 20°
