ASSOS 3

  • Technical Specifications
  • Body
    Die cast aluminium or aluminium profile with die cast aluminium bottom and connection box.
  • Gaskets
    Silicone
  • Diffusers
    Tempered press glass or polycarbonate
  • Screws
    316L Stainless steel
  • Glands
    2 x PG 13.5
  • Cover
    Die cast aluminium
  • Recessing Tube
    Polyamide 6
"Customization” is EMFA’s standard"

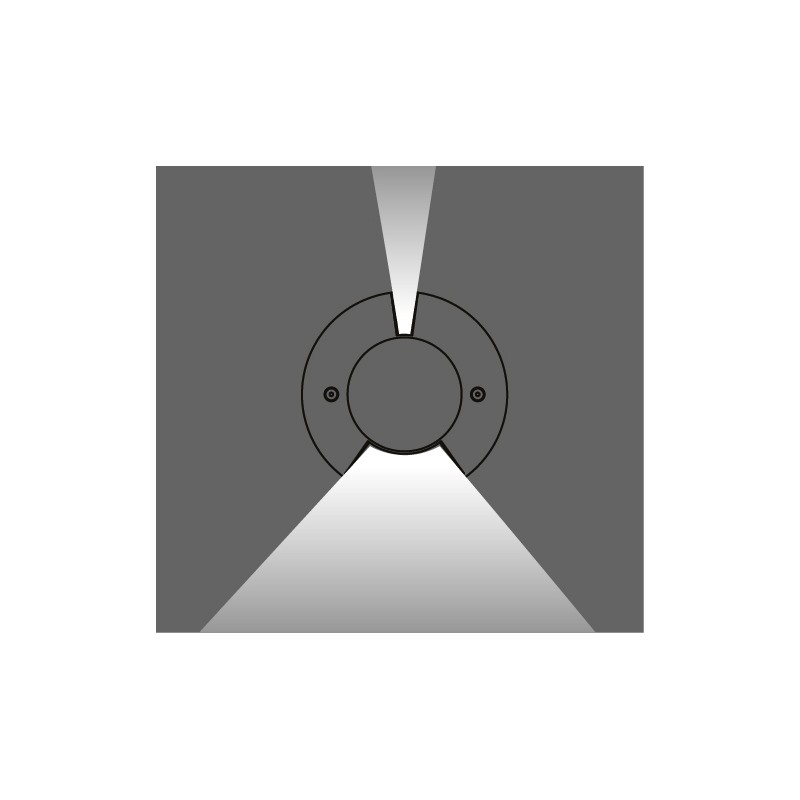

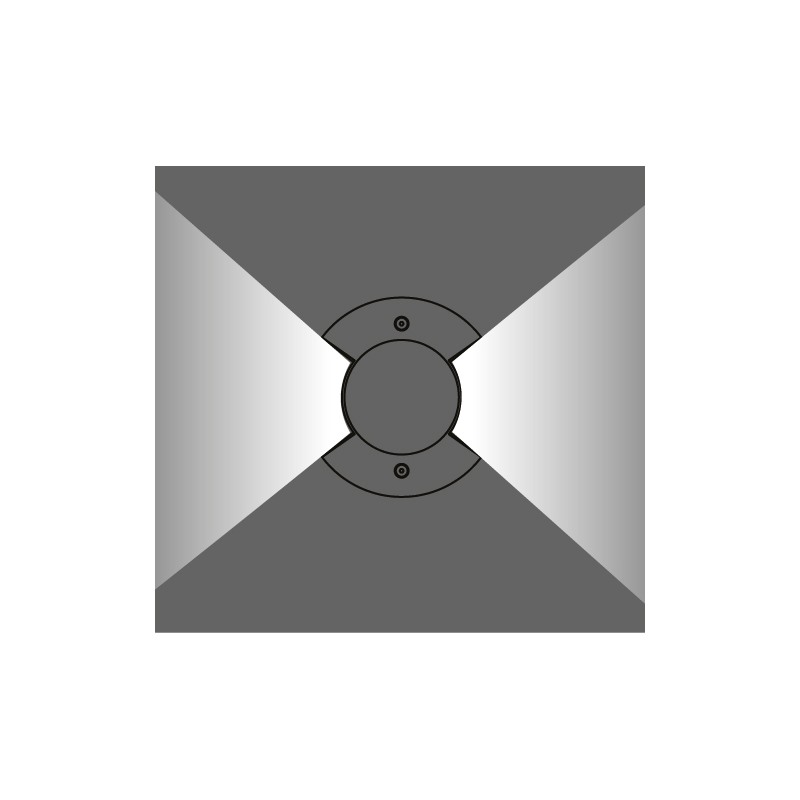

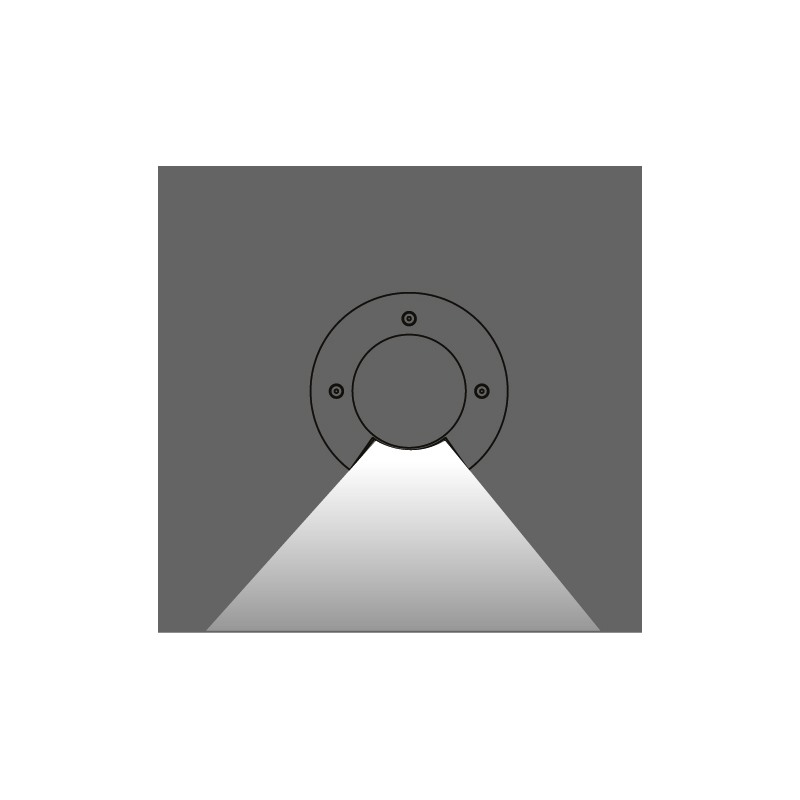

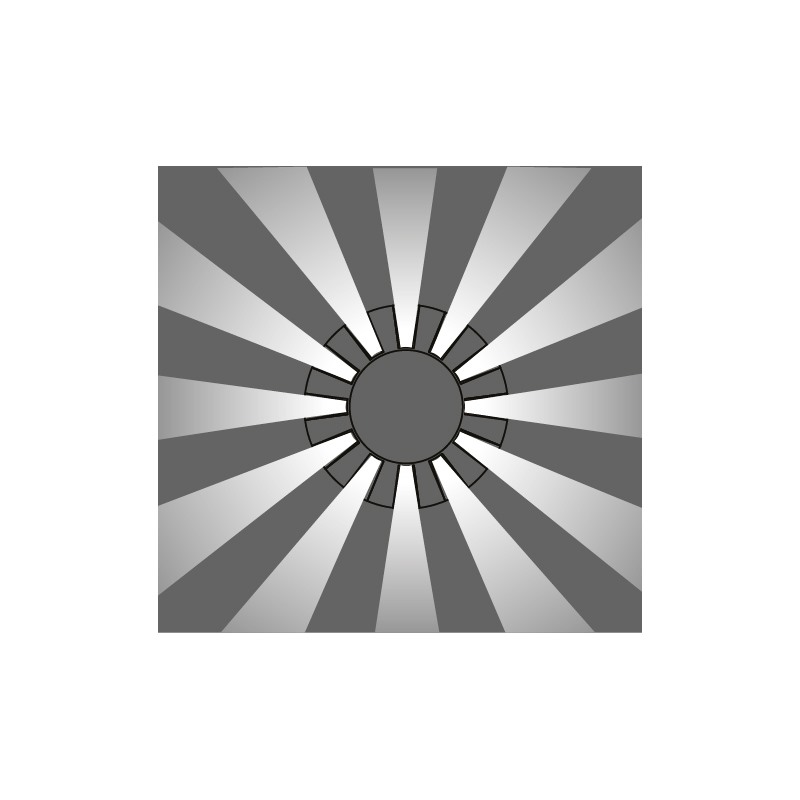

EMFA’s Assos 3 series is specially designed to light pathways, roads, and gardens. The fixture can be equipped with LED, halogen or fluorescent lamps. The fixture has 3 different options of cover: Multi, Mono, Dual, and Wall to give different lighting effects. In combination with the die cast aluminium body, the fixture allows for IP67 and IK10 and a load of 15kN. The fixture comes with a polyamide recessing tube for easy mounting in the ground or concrete.

PRODUCT LIST & DOWNLOAD

  • Compare
    202101
    • Product Name

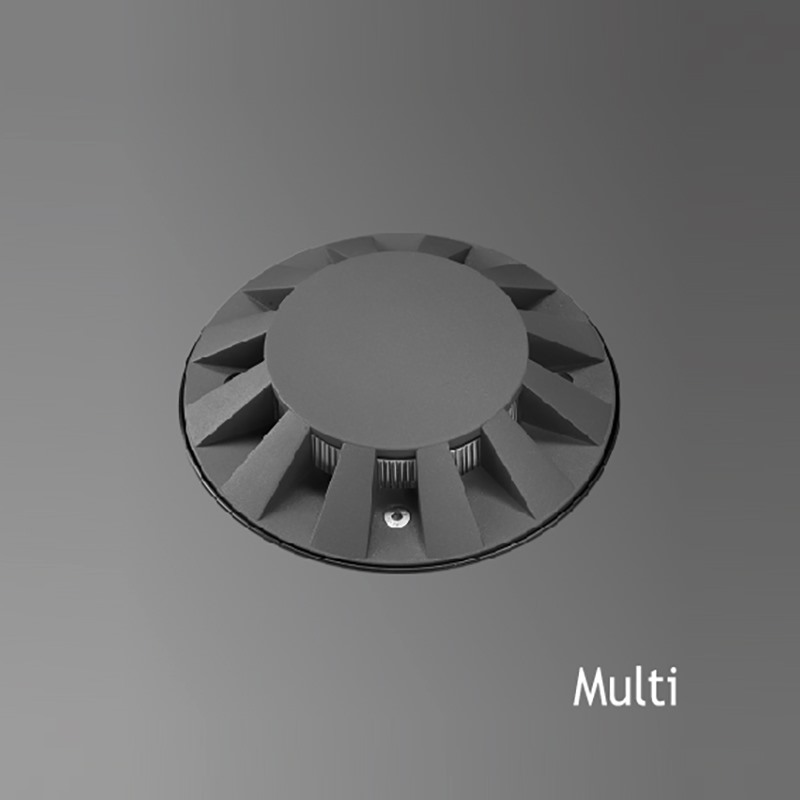

      Assos 3 - Multi
    • Power - Current
      HALOGEN 25-40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • Lampholder
      G9 Fixed
    • LED
      Linear LEDs
  • Compare
    202111
    • Product Name
      Assos 3 - Multi
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • Lampholder
      Gx53 Fixed
    • LED
      Linear LEDs
  • Compare
    202121
    • Product Name
      Assos 3 - Multi
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • Lampholder
      G 6.35 Fixed
    • LED
      Linear LEDs
  • Compare
    202141
    • Product Name
      Assos 3 - Multi
    • Power - Current
      1 x 350 mA (11W) LED
    • Lumen
      925 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Total Lighting Output
      925 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    203101
    • Product Name

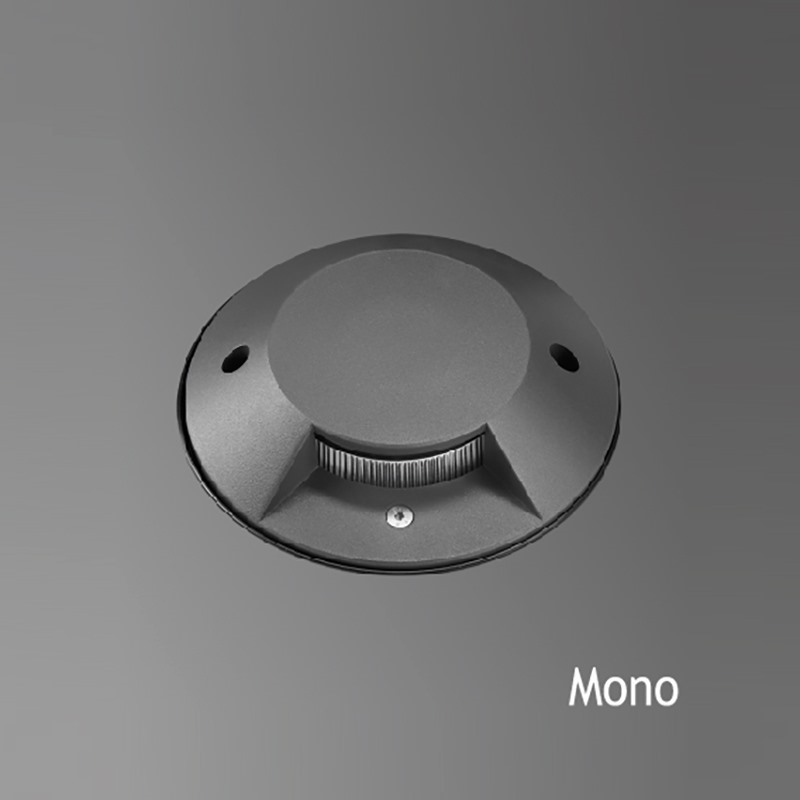

      Assos 3 - Mono
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • LED
      Linear LEDs
    • Lampholder
      G9 Fixed
  • Compare
    203111
    • Product Name
      Assos 3 - Mono
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • Lampholder
      Gx53 Fixed
    • LED
      Linear LEDs
  • Compare
    203121
    • Product Name
      Assos 3 - Mono
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • Lampholder
      G 6.35 Fixed
    • LED
      Linear LEDs
  • Compare
    203141
    • Product Name
      Assos 3 - Mono
    • Power - Current
      1 x 350 mA (3W) LED
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Lumen
      350 lm
    • Total Lighting Output
      925 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    204101
    • Product Name

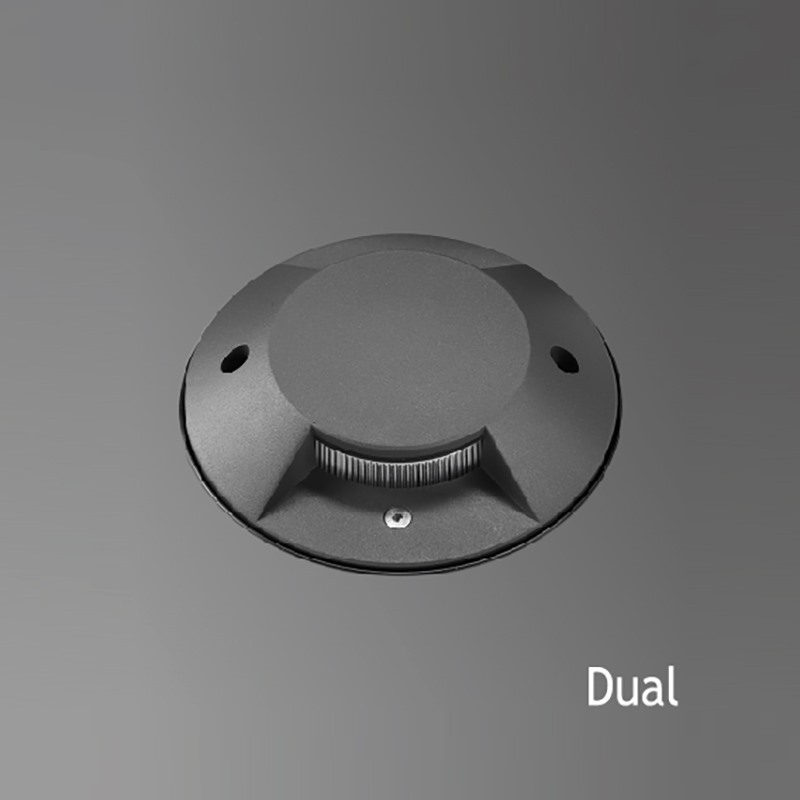

      Assos 3 - Dual
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • LED
      Linear LEDs
    • Lampholder
      G9 Fixed
  • Compare
    204111
    • Product Name
      Assos 3 - Dual
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • Lampholder
      Gx53 Fixed
    • LED
      Linear LEDs
  • Compare
    204121
    • Product Name
      Assos 3 - Dual
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • Lampholder
      G 6.35 Fixed
    • LED
      Linear LEDs
  • Compare
    204141
    • Product Name
      Assos 3 - Dual
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      700 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Total Lighting Output
      925 lm
    • IP
      IP67
    • LED
      Linear LEDs
  • Compare
    205101
    • Product Name

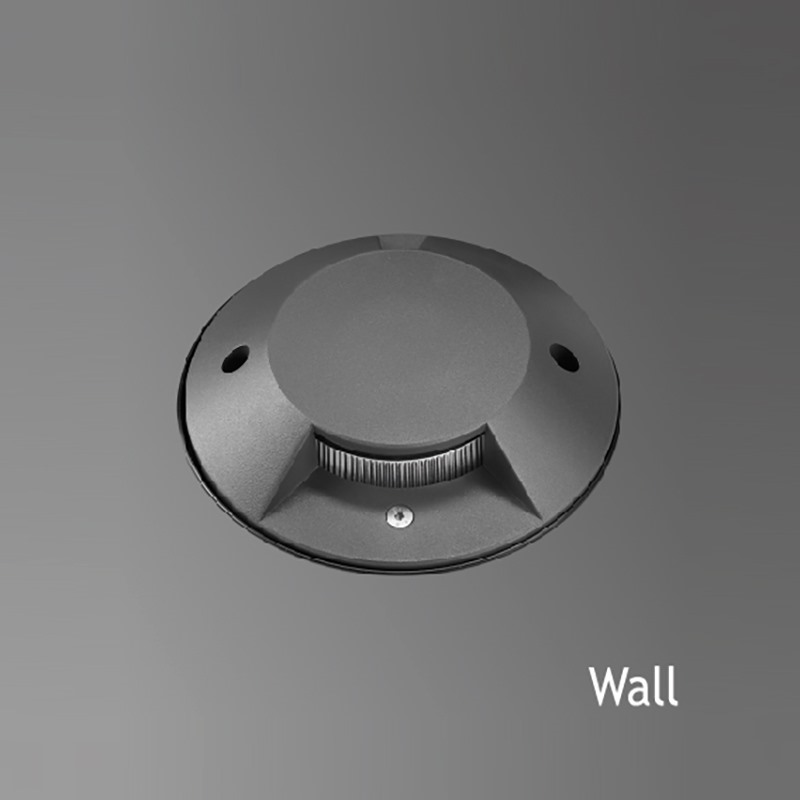

      Assos 3 - Wall
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • LED
      Linear LEDs
    • Lampholder
      G9 Fixed
  • Compare
    205111
    • Product Name
      Assos 3 - Wall
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • Lampholder
      Gx53 Fixed
    • LED
      Linear LEDs
  • Compare
    205121
    • Product Name
      Assos 3 - Wall
    • Power - Current
      HALOGEN 25 - 40W
    • Lumen
      -
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • Lampholder
      G 6.35 Fixed
    • LED
      Linear LEDs
  • Compare
    205141
    • Product Name
      Assos 3 - Wall
    • Power - Current
      2 x 350 mA (6W) LED
    • Lumen
      700 lm
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • IP
      IP67
    • Lampholder
      -
    • LED
      Linear LEDs
