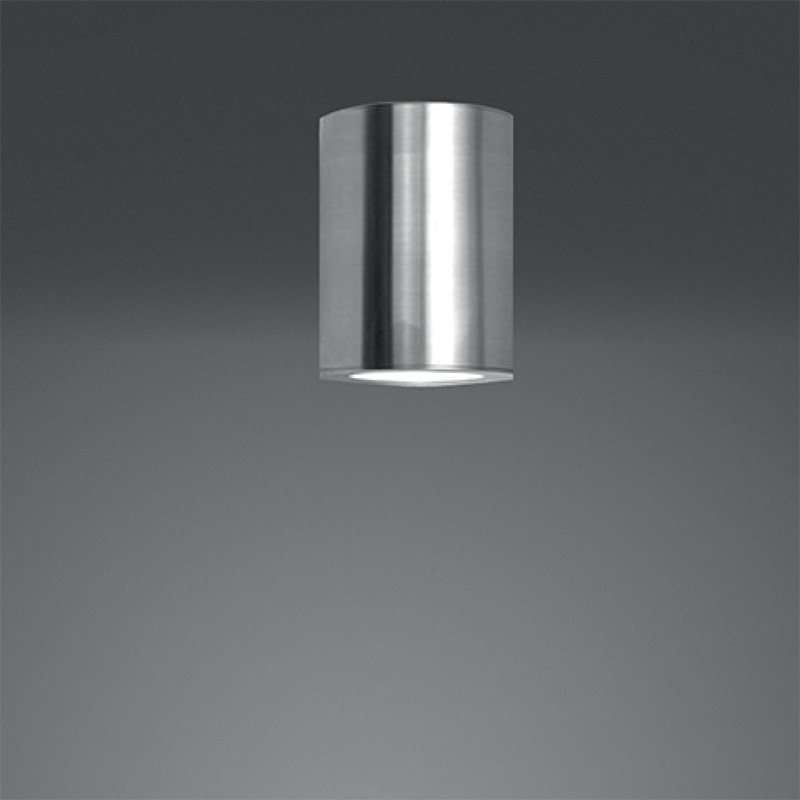

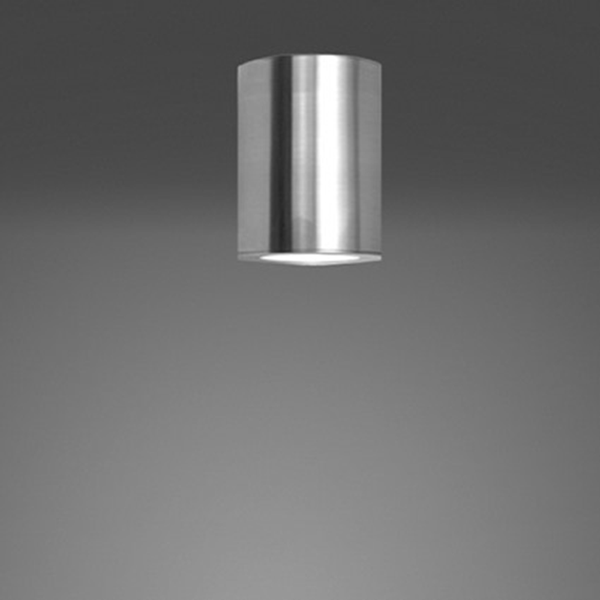

INOX

  • Technical Specifications
  • Body
    316L Stainless Steel
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Cover
    316L Stainless Steel
  • Connection
    IP connection box
  • Finish
    Polished

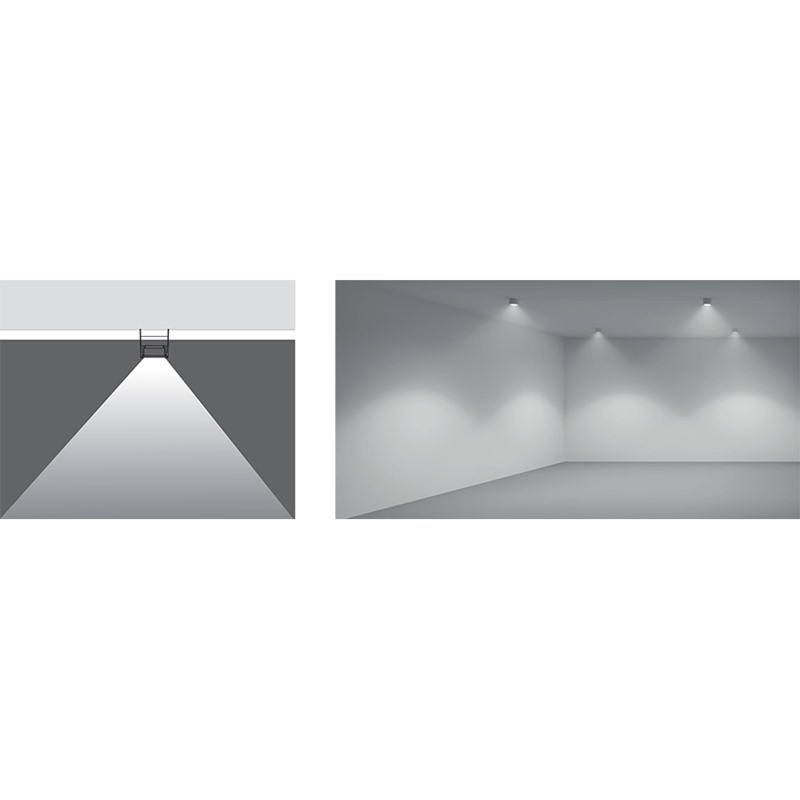

The Inox surface series contsists of a range of LED, metal halide and halogen sources to deliver the desired light effect to facedes and columns. The series is made of die cast aluminium and extrusion aluminium painted with electrostatic powder paint. 6 standard RAL colors can ve chosen from to adapt the spots to their environment. The LEDs used come in 3 different tones of white, as well as blue, red, green, amber and RGB. Several lenses from 6 to 40 degrees are available to choose from to achieve the desired the light effect.

PRODUCT LIST & DOWNLOAD

  • Compare
    136001
    • Product Name

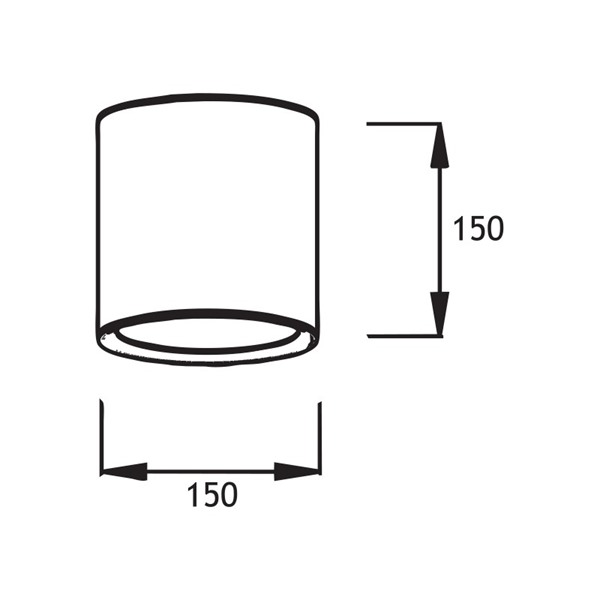

      INOX 1 SURFACE
    • Power - Current
      1x15W/20W CREE COB LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    136002
    • Product Name
      INOX 1 SURFACE
    • Power - Current
      1x15W/20W CREE COB LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    136011
    • Product Name
      INOX 1 SURFACE
    • Power - Current
      1x15W/20W CREE COB LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    136012
    • Product Name
      INOX 1 SURFACE
    • Power - Current
      1x15W/20W CREE COB LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    136021
    • Product Name

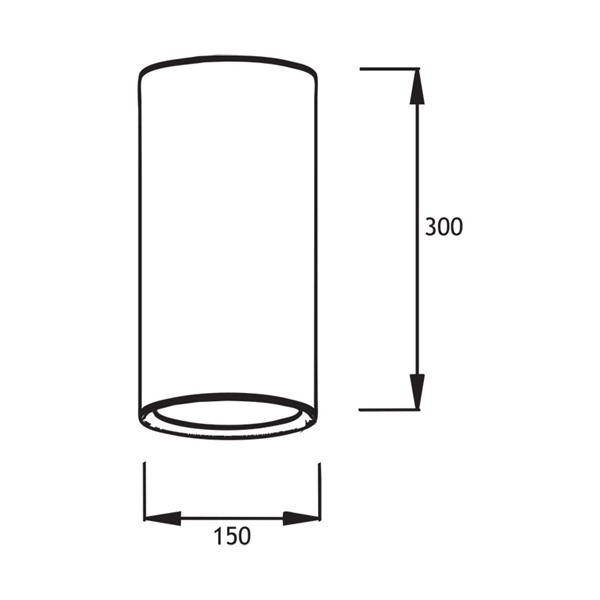

      INOX 2 SURFACE
    • Power - Current
      1x15W/20W/30W CREE COB LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    136022
    • Product Name
      INOX 2 SURFACE
    • Power - Current
      1x15W/20W/30W CREE COB LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    136031
    • Product Name
      INOX 2 SURFACE
    • Power - Current
      1x15W/20W/30W CREE COB LED
    • Color
      3000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
  • Compare
    136032
    • Product Name
      INOX 2 SURFACE
    • Power - Current
      1x15W/20W/30W CREE COB LED
    • Color
      4000 K
    • Lens
      24° / 36° / 60°
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5 m 3x0,75 H03 VV-F
    • IP
      IP65
