ANI 4 SYMMETRICAL

  • Technical Specifications
  • Body
    Die cast aluminium
  • Profile
    Aluminium
  • Gaskets
    Silicone
  • Diffusers
    4 mm Tempered Glass
  • Screws
    316L Stainless steel
  • Glands
    PG 11

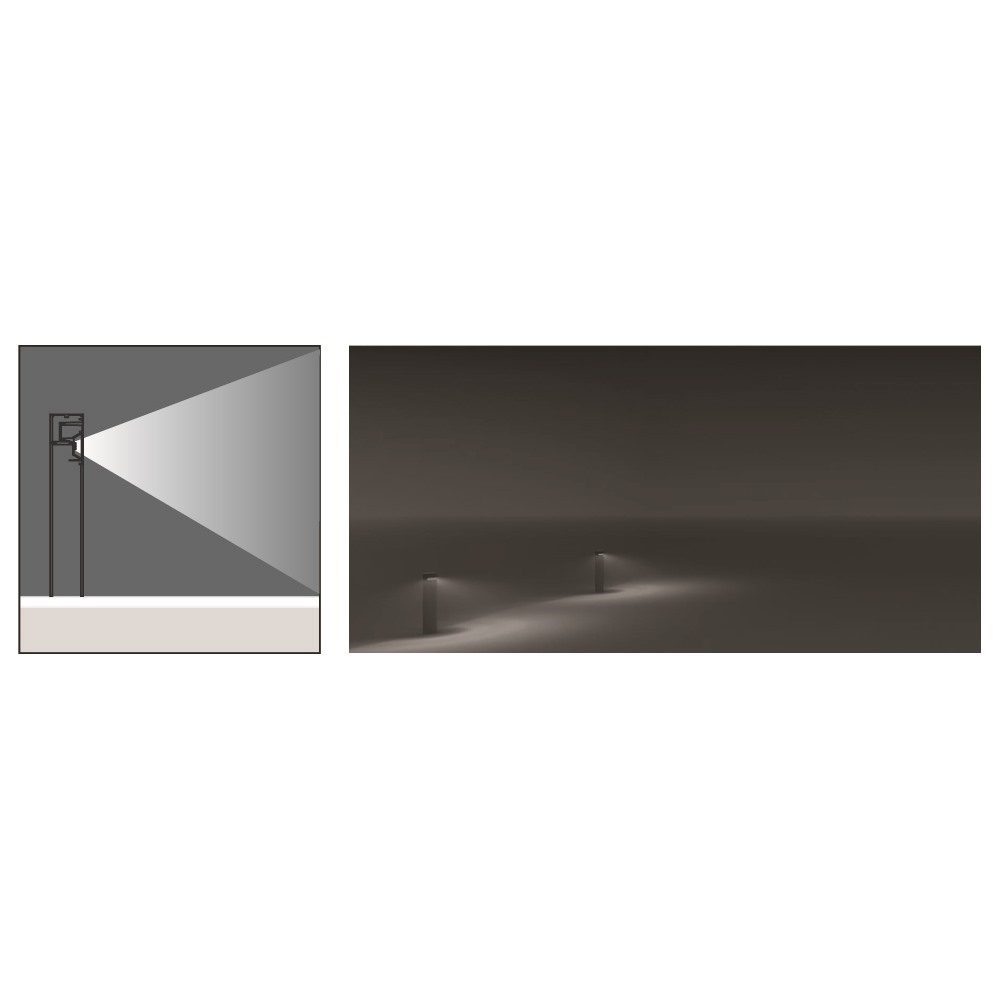

EMFA’s Ani Bollard combines a die-cast aluminium head housing an LED unit with an extrusion aluminium pipe.The bollard is designed to light pathways, landscapes and open spaces. The Leon bollard gives light only in the downward direction.This avoids any kind of glare and light pollution. The head and pipe are connected by a hidden screw within the pipe. The head contains LEDs that can be powered up to 12W. An optional galvanized steel anchorage kit is available for mounting into concrete. An alternative option is sleave anchors for mounting onto existing concrete or a picket to mount into the earth.

PRODUCT LIST & DOWNLOAD

  • Compare
    459001
    • Product Name
      Ani 4 Symmetrical (450 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    459002
    • Product Name
      Ani 4 Symmetrical (450 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    459011
    • Product Name
      Ani 4 Symmetrical (450 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48W
    • Color
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    459012
    • Product Name
      Ani 4 Symmetrical (450 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    459101
    • Product Name
      Ani 4 Asymmetrical (700 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24W
    • Color
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    459111
    • Product Name
      Ani 4 Symmetrical (700 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    459112
    • Product Name
      Ani 4 Symmetrical (700 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    459201
    • Product Name
      Ani 4 Symmetrical (1100 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48W
    • Color
      3000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      1780 lm
    • Nominal Lumen Output
      2550 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    459202
    • Product Name
      Ani 4 Symmetrical (1100 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      24W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      2047 lm
    • Nominal Lumen Output
      2932 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    459211
    • Product Name
      Ani 4 Symmetrical (1100 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48W
    • Color
      3000K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3080 lm
    • Nominal Lumen Output
      4300 lm
    • IP
      IP55
    • LED
      Linear LEDs
  • Compare
    459212
    • Product Name
      Ani 4 Symmetrical (1100 mm)
    • Beam Angle
      45° / 60° /90°
    • Mac Adam
      3
    • CRI
      >80
    • L.O.R %
      70%
    • Power - Current
      48W
    • Color
      4000 K
    • Voltage
      240 VAC with integrated driver (12-24 VDC on request)
    • Real Lumen Output
      3542 lm
    • Nominal Lumen Output
      5060 lm
    • IP
      IP55
    • LED
      Linear LEDs
