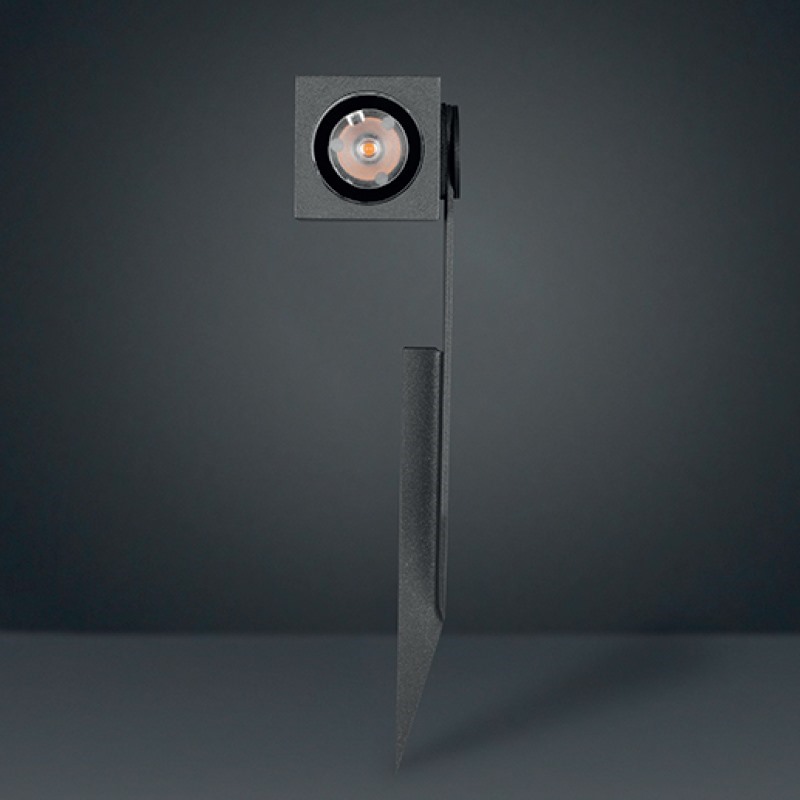

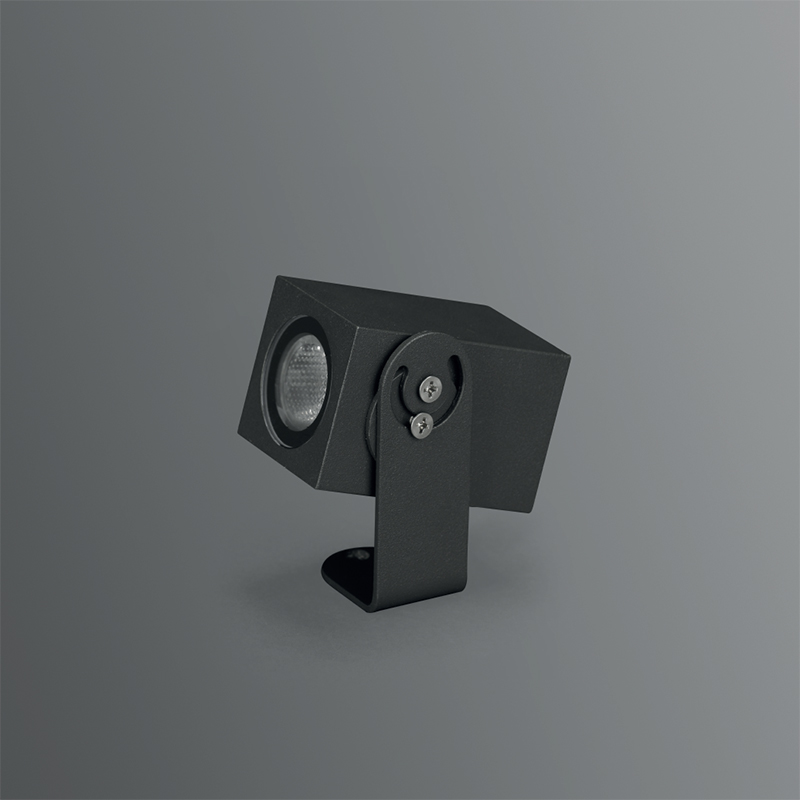

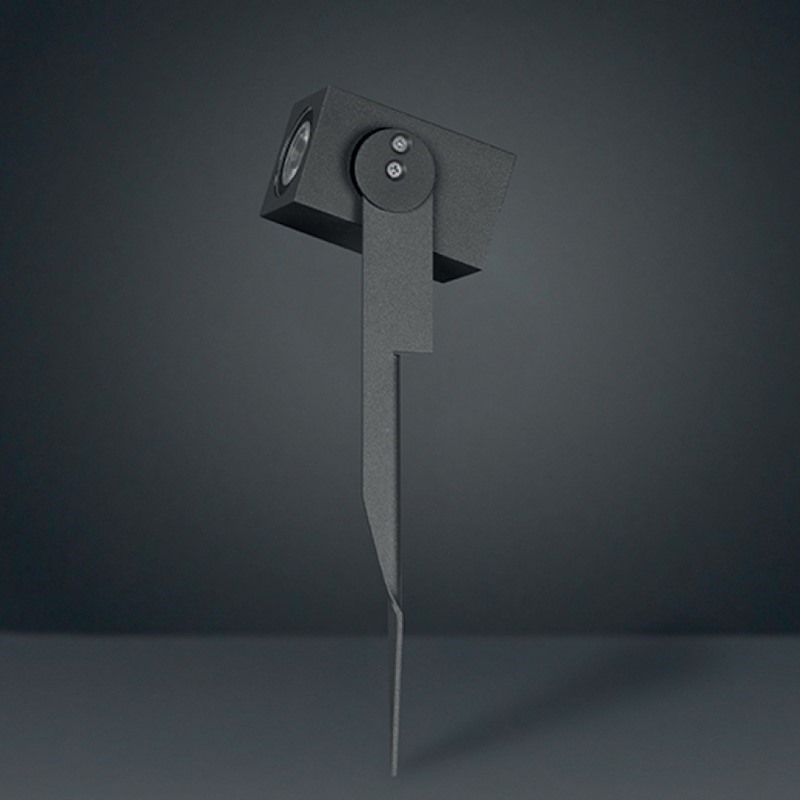

SQUARE MINI

  • Technical Specifications
  • Body
    Die cast aluminium
  • Gaskets
    Silicone
  • Diffusers
    Tempered Glass
  • Paint
    Electrostatic powder
"Customization" is EMFA's standard
EMFA offers many combinations for each fixture, as all fixtures are made in house. A combination of 6 standard paint colors, 8 LED colors, 2 wattages, and 5 or more lenses and reflectors are available to make the fixture suitable for the required application. This is done without increasing lead-time and is available for large as well as small quantities.

PRODUCT LIST & DOWNLOAD

  • Compare
    438001
    • Product Name
      SQUARE MINI - LED SPOT LED DRIVER IN HADE
    • Power - Current
      1W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      85 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    438002
    • Product Name
      SQUARE MINI - LED SPOT LED DRIVER IN HADE
    • Power - Current
      1W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      85 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    438003
    • Product Name
      SQUARE MINI - LED SPOT LED DRIVER IN HADE
    • Power - Current
      1W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      102 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    438011
    • Product Name
      SQUARE MINI - LED SPOT LED DRIVER IN HADE
    • Power - Current
      3W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      225 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    438012
    • Product Name
      SQUARE MINI - LED SPOT LED DRIVER IN HADE
    • Power - Current
      3W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      225 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    438013
    • Product Name
      SQUARE MINI - LED SPOT LED DRIVER IN HADE
    • Power - Current
      3W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      270 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    438021
    • Product Name
      SQUARE MINI - LED SPOT LED DRIVER IN HADE
    • Power - Current
      6W LED
    • Color
      3000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    438022
    • Product Name
      SQUARE MINI - LED SPOT LED DRIVER IN HADE
    • Power - Current
      6W LED
    • Color
      4500 K
    • Lens
      10°, 25°, 40°
    • Lumen
      510 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
  • Compare
    438023
    • Product Name
      SQUARE MINI - LED SPOT LED DRIVER IN HADE
    • Power - Current
      6W LED
    • Color
      6000 K
    • Lens
      10°, 25°, 40°
    • Lumen
      580 lm
    • Voltage
      240V A.C with integrated driver (24V AC or DC on request)
    • Cable
      Potted 5m 3x0,75 H03 VV-F
    • IP
      IP67
