ASSOS 6

  • Technical Specifications
  • Body
    Die cast aluminium or aluminium profile with die cast aluminium bottom and connection box.
  • Gaskets
    Silicone
  • Diffusers
    15 mm Tempered Glass (Aluminium Cover)
  • Screws
    316L Stainless steel
  • Glands
    2 x PG 13.5
  • Cover
    Die cast aluminium

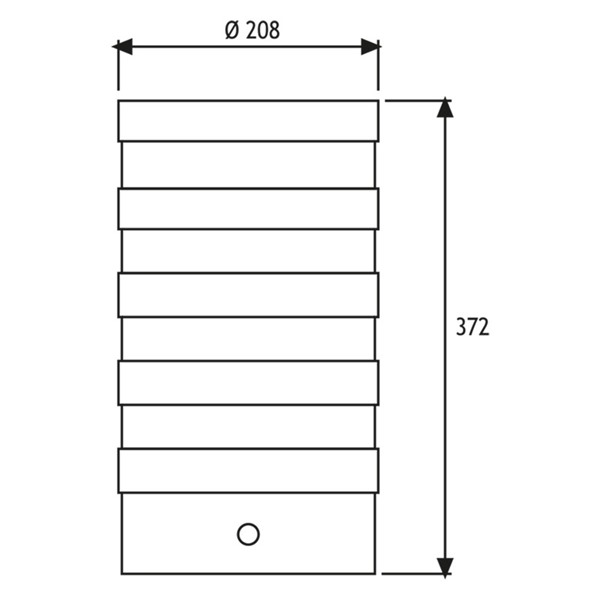

  • Recessing Tube
    Polyamide 6
"Customization” is EMFA’s standard"

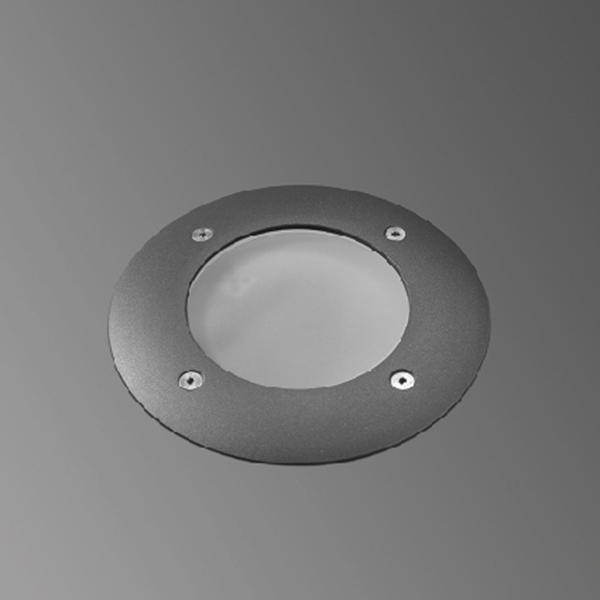

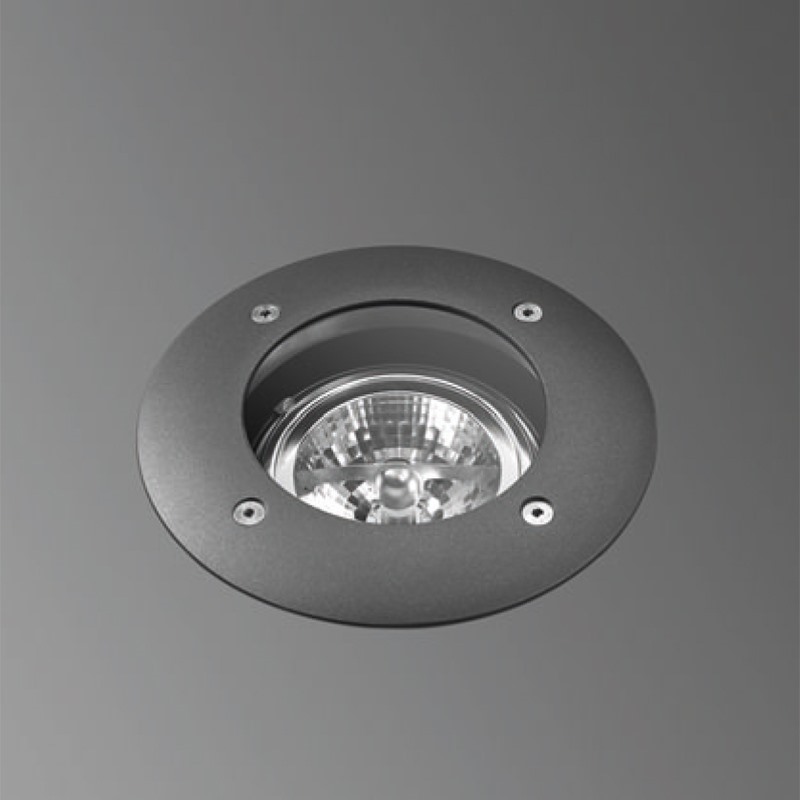

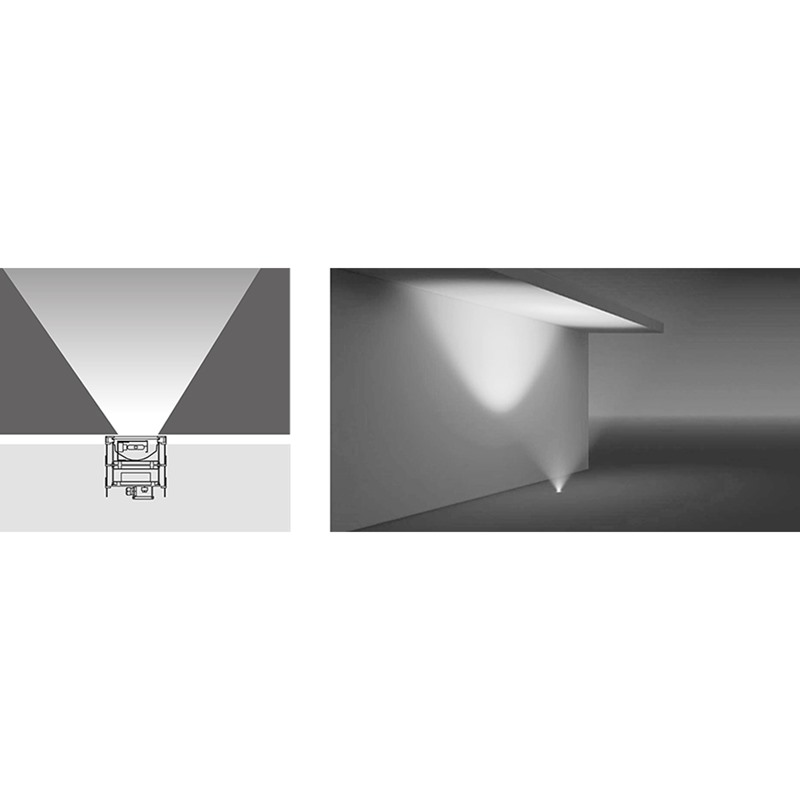

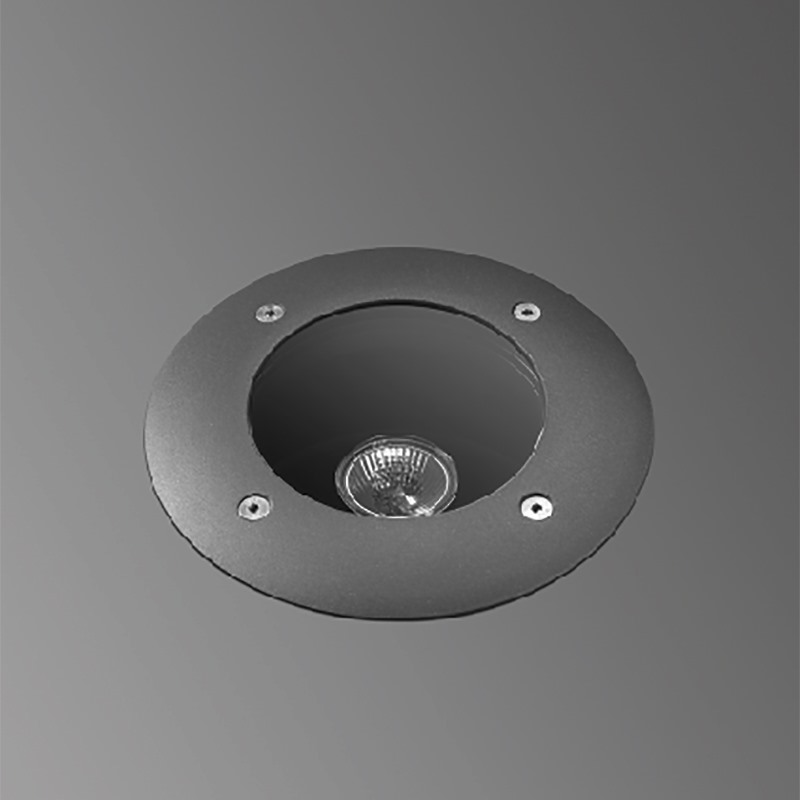

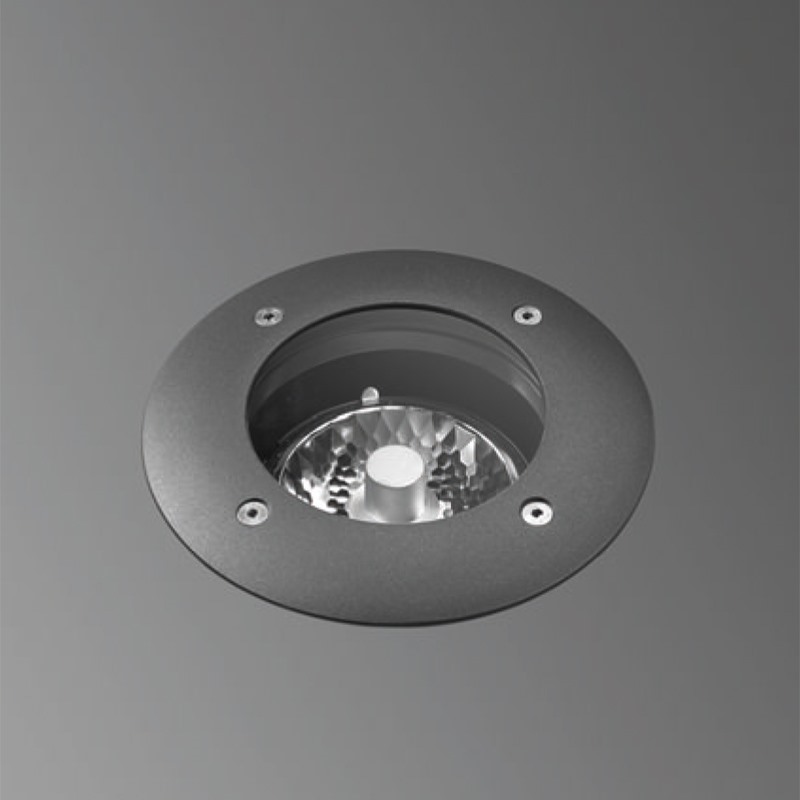

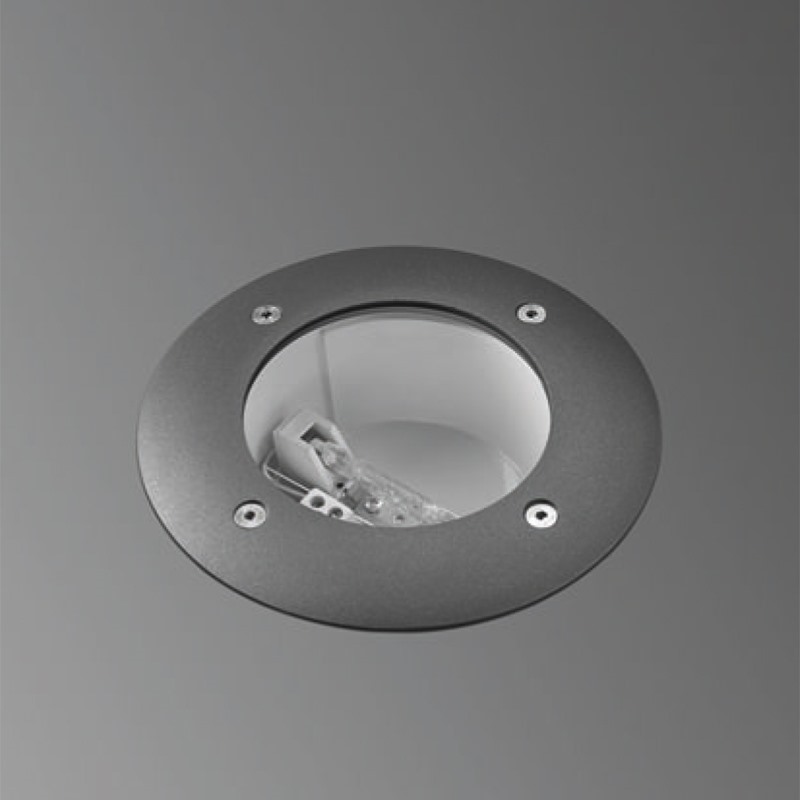

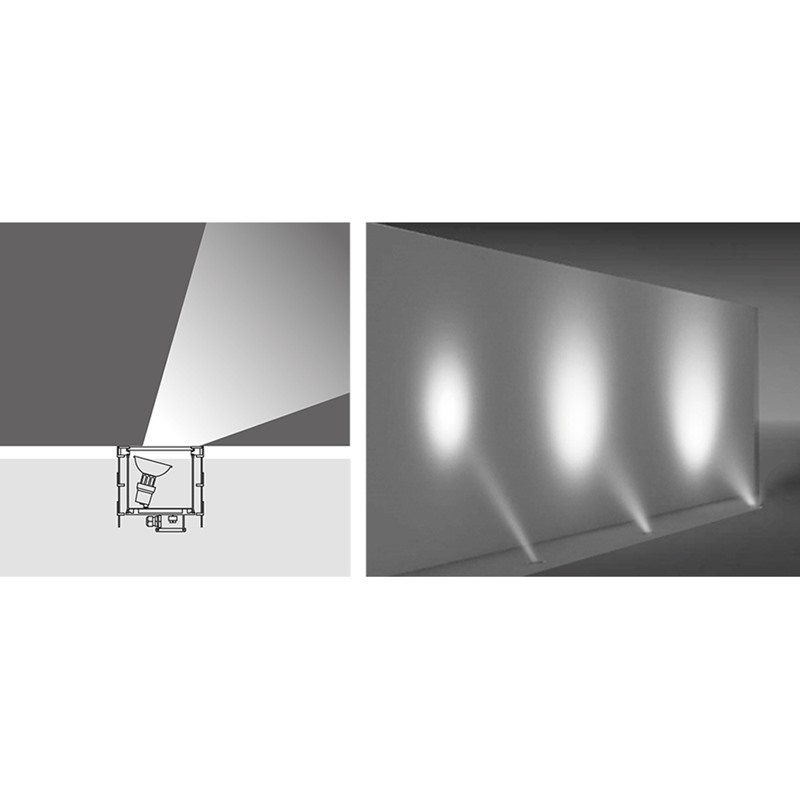

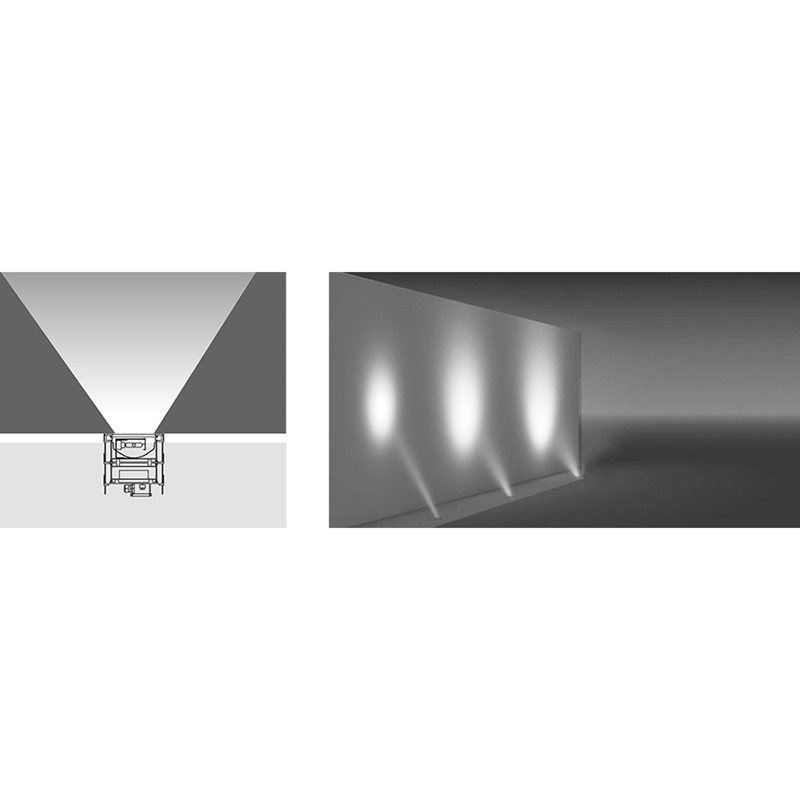

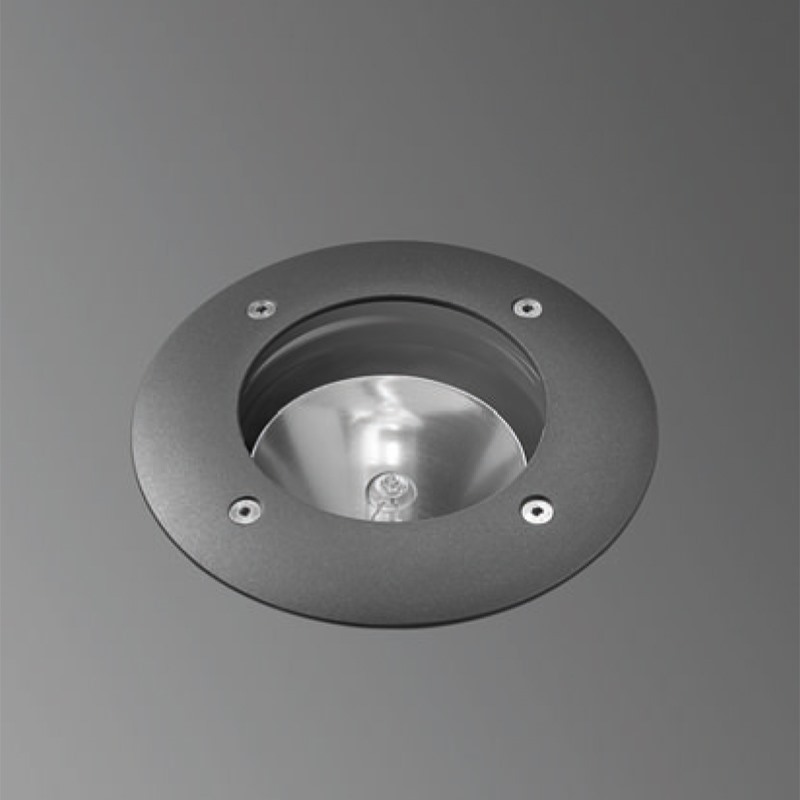

EMFA’s Assos 6 Alum series is specially designed to light trees and bushes where drive over is not required. The fixture can be equipped with metal halide, halogen or fluorescent lamps. The fixture is made of die cast aluminium and allows for allows for IP67 and IK10. The fixture comes with a polyamide recessing tube for easy mounting in the ground or concrete. A louvre can be ordered separately to reduce the glare of the lamps. An anti-slip glass is available upon request.

PRODUCT LIST & DOWNLOAD

  • Compare
    211101
    • Product Name
      ASSOS 6 - HALOGEN or FLUO.
    • Reflector
      50°C
    • Temp
      100°C
    • Power - Current
      60 W
    • Product Type
      Alum.
    • IP
      IP67
    • Lamp
      HALOGEN LINEAR
    • Lampholder
      R7s fixed
  • Compare
    211111
    • Product Name
      ASSOS 6 - HALOGEN
    • Reflector
      80°C
    • Temp
      60W - 117°C | 100W - 170°C
    • Power - Current
      60/100W
    • Product Type
      Alum.
    • IP
      IP67
    • Lamp
      INCANDESCENT
    • Lampholder
      E27 fixed
  • Compare
    211131
    • Product Name
      ASSOS 6 - HALOGEN
    • Reflector
      -
    • Temp
      129°C
    • Power - Current
      30 75W
    • Product Type
      Alum.
    • IP
      IP67
    • Lamp
      HALOGEN PAR
    • Lampholder
      E27 fixed
  • Compare
    211141
    • Product Name
      ASSOS 6 - HALOGEN
    • Reflector
      -
    • Temp
      197°C
    • Power - Current
      38 100W 30°
    • Product Type
      Alum.
    • IP
      IP67
    • Lamp
      HALOGEN PAR
    • Lampholder
      E27 Loose
  • Compare
    211181
    • Product Name
      ASSOS 6 - HALOGEN
    • Reflector
      -
    • Temp
      35W - 67°C | 50W - 80°C
    • Power - Current
      16 35W/50W (24° or 60°)
    • Product Type
      Alum.
    • IP
      IP67
    • Lamp
      HALOGEN PAR
    • Lampholder
      Gu 5.3 Fixed or Adjustable ±30°
  • Compare

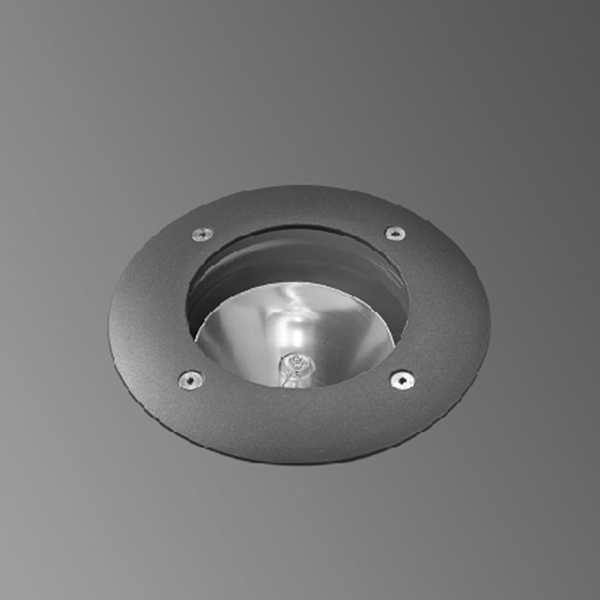

    211241
    • Product Name
      ASSOS 6 - METAL HALIDE
    • Reflector
      30°, 42°
    • Temp
      35W - 99°C | 70W - 144°C | 150W - 238°C
    • Power - Current
      35W/70W/150W
    • Product Type
      Alum.
    • IP
      IP67
    • Lamp
      METAL HALIDE
    • Lampholder
      G12 Fixed or Adjustable ±20°
  • Compare

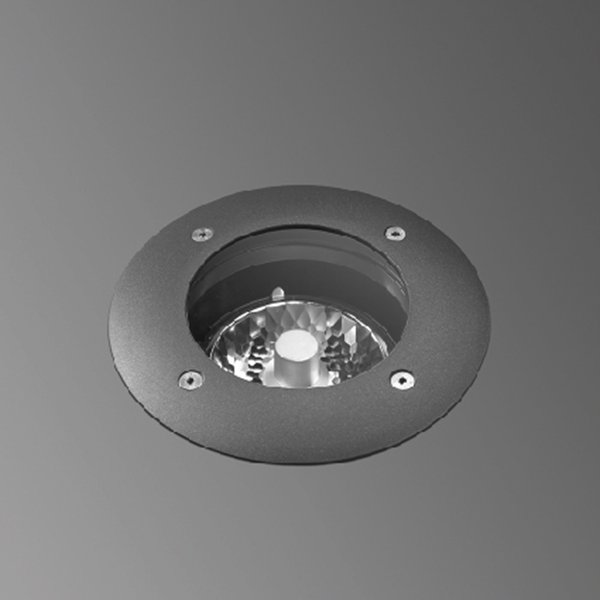

    211271
    • Product Name
      ASSOS 6 - METAL HALIDE
    • Reflector
      -
    • Temp
      166°C
    • Power - Current
      111 35W/70W
    • Product Type
      Alum.
    • IP
      IP67
    • Lamp
      METAL HALIDE CDMR
    • Lampholder
      Gx8.5 Fixed or Adjustable ±15°
  • Compare
    211361
    • Product Name
      ASSOS 6 - HALOGEN
    • Reflector
      -
    • Temp
      129°C
    • Power - Current
      30 75W
    • Product Type
      Alum.
    • IP
      IP67
    • Lamp
      HALOGEN PAR
    • Lampholder
      E27 Adjustable ±20°
  • Compare

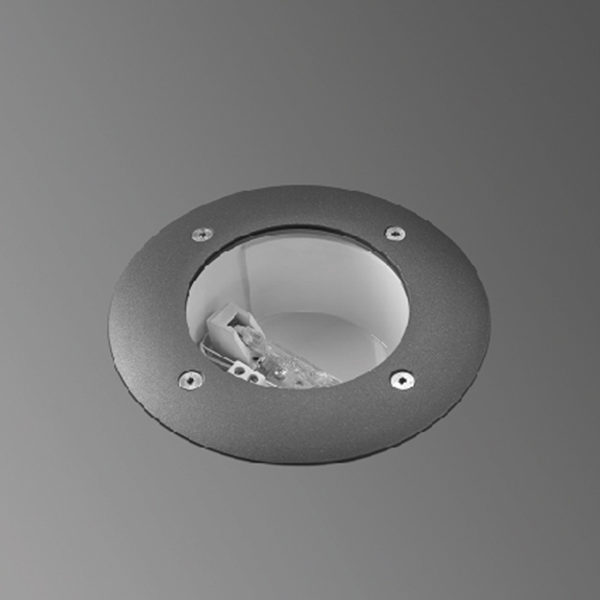

    212261
    • Product Name
      ASSOS 6 - METAL HALIDE
    • Reflector
      80°C
    • Temp
      115°C
    • Power - Current
      70W
    • Product Type
      Alum.
    • IP
      IP67
    • Lamp
      METAL HALIDE
    • Lampholder
      Rx7s-24 Fixed
  • Compare
    212281
    • Product Name
      ASSOS 6 - HALOGEN or FLUO.
    • Reflector
      80°C
    • Temp
      43°C
    • Power - Current
      23W
    • Product Type
      Alum.
    • IP
      IP67
    • Lamp
      ELECTGRONIC FLUO.
    • Lampholder
      E27 fixed
  • Compare
    221561
    • Product Name
      ASSOS 6 - HALOGEN
    • Reflector
      -
    • Temp
      130°C
    • Power - Current
      111 50W (4°, 8° or 24°)
    • Product Type
      Alum.
    • IP
      IP67
    • Lamp
      HALOGEN RJ
    • Lampholder
      Gu 5.3 Fixed or Adjustable ±20°
